Key Architecture Highlights

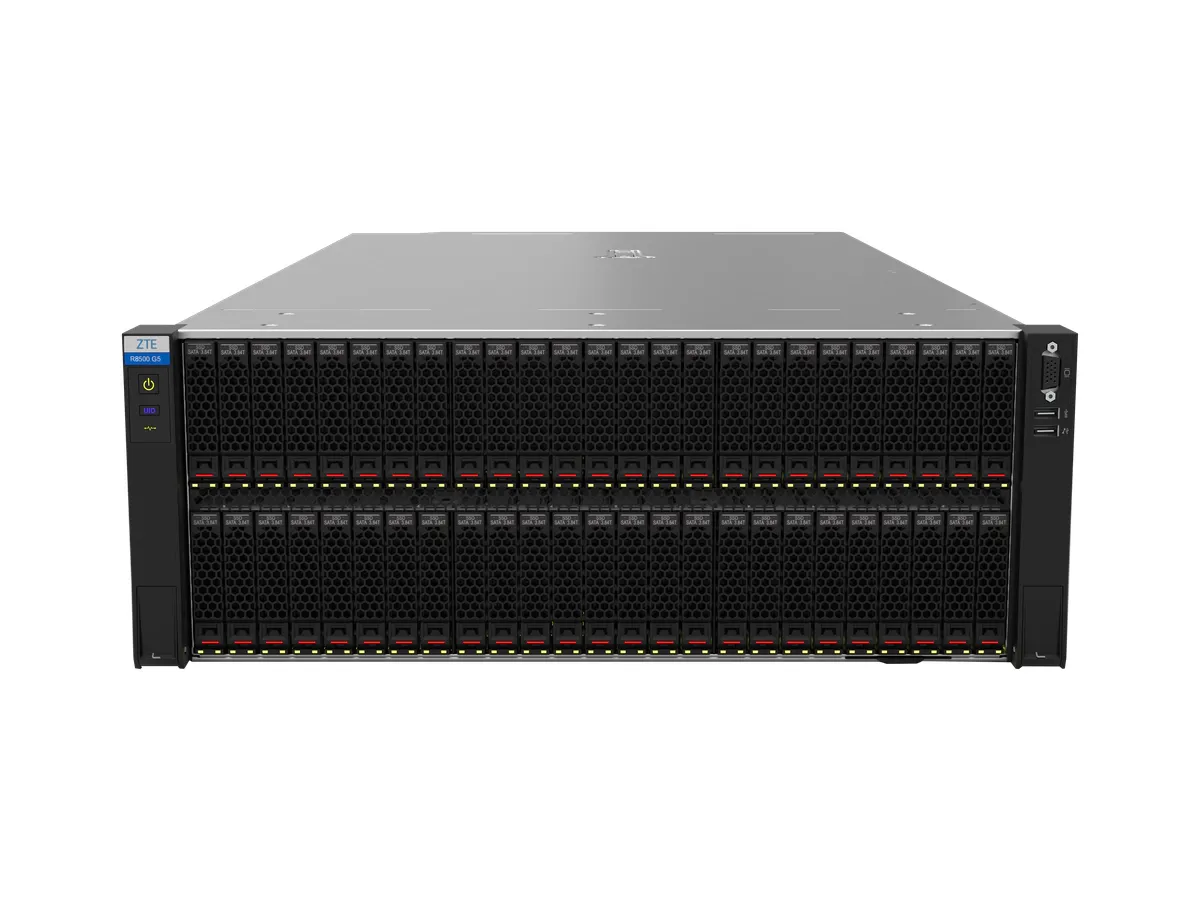

- Chassis form factor: 4U
- Supported processors: Supports 4 Intel® Xeon® (Sapphire Rapids) expansion processors that can be used to build a new computer.
- Chipset: Emmitsburg C741
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | Supports 4 Intel® Xeon® (Sapphire Rapids) expansion processors that can be used to build a new computer. |
| Chipset | Emmitsburg C741 |
| Memory support | 64 memory slots supporting the DDR5 memory bar |
| Drive bays | Configuration 1: The front panel uses 25 backplate disks, with maximum support for 50 front 2.5" drives + 8 rear 2.5" drives; configuration 2: The front panel uses 8 backplate disks, with maximum support for 48 front 2.5" drives + 8 rear 2.5" drives; maximum support for 24 NVME SSDs; built-in: 2 M.2 SATA disks (needs to be paired with a mid-range M.2 kit) |
| Storage controller | Supporting standard and self-developed storage HBA, RAID card, RAID0/1/10/5/6/50/60 |
| Network | Optional 2x1GE/4x1GE/2x10GE/4x10GE/2x25GE/2x40GE OCP network subcards |
| PCIe Slot | 1 supports 2 full-high PCIe Riser boxes (with 7 PCIe slots per box), 4 full-high PCIe slots on board; 2 supports 1 full-high PCIe Riser box (with 7 PCIe slots per box), 1 half full-high PCIe Riser box (with 7 PCIe slots per box), and 6 full-high PCIe slots on board. |
| External interfaces | 5 USB interfaces (2 rear panel USB3.0, 1 internal USB3.0, 1 front panel USB3.0, 1 front panel USB2.0); 2 VGA interfaces (front panel 1 and back panel 1); 1 serial ports (3.5mm interface) |
| Management interface | 1 Independent GE management network Ports |
| Power supply specifications | titanium exchange. Power supply, Output Power 800W / 1300W; Platinum. Power supply, Output Power 800W / 1200W / 1300W / 1600W / 2000W [Product specifications in planning, Specific Current Configurable Information based on detailed product manual]; Supports 100-240V Communications; Supports 240V / 336V Height Press the flow.; Supports -48V Straightstream; Supports 4 units Power supply Modules, Supports N + N Redundant |
| Cooling fans | 6 group fan module/12 hot-pull twin-turner fan support N+1 redundant and dynamic smart tuning |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
