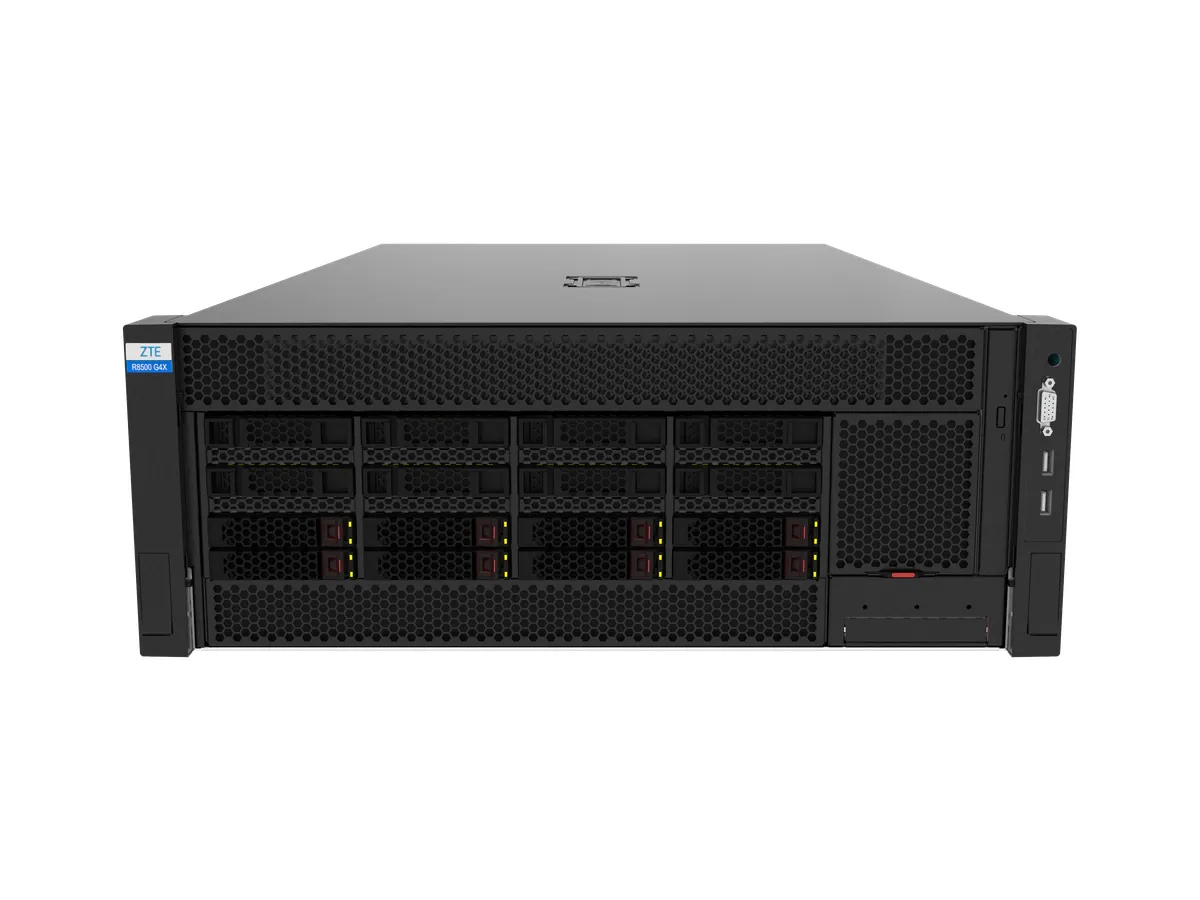

Key Architecture Highlights
- Chassis form factor: 4U
- Supported processors: Supports 4-way third-generation Intel Xeon expandable processor, supports up to 250W CPU
- Chipset: Lewisburg C621A S2
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | Supports 4-way third-generation Intel Xeon expandable processor, supports up to 250W CPU |
| Chipset | Lewisburg C621A S2 |
| Memory support | 48 DDR4-3200 memory slots |
| Storage controller | Supporting standard and self-developed storage HBA, RAID card, RAID0/1/10/5/6/50/60 |
| Drive bays | Supports up to 50 SAS/SATA drives (optional support for 24 NVMe drives) |
| Network | Integrated with 2 Gigabit + 2 10 Gigabit Ethernet interfaces and 1 IPMI to manage the Gigabit Ethernet interface |
| PCIe Slot | Maximum expansion capacity of 18 PCIe 3.0 slots, 4 dual wide GPU cards |
| External equipment Ports | 4 units USB 3.0 Interface + 2 units USB2.0 Interface, 2 units 10 Gigabit Ethernetlight Ports + 2 units Gigabit Ethernet Copper port, 1 Threads Ports, 2 units VGA Interface, 1 Independent management network Ports |
| Power supply specifications | Platinum. Power supply, Output Power 550W / 800W / 1200W; Supports 100-240V Communications, Supports 240V / 336V Height Press the flow., Supports -48V Straightstream; Supports N + N Redundant power supply |
| Cooling fans | 8 hot-plug fans support N+1 redundant and dynamic smart tuning |
| Environmental requirements | Operating temperature: + 5 ºC～ + 40 oC Storage temperature: -40 ºC～ + 65 ºC Operating humidity: 8% ～ 90%, Non-condensing Altitude Height: 3000 Rice. |
| Chassis dimensions | The chassis dimensions are: H(175 mm) x W ((442mm) x D ((790mm) |
| Weight | Full configuration not exceeding 55kg |
| Supported operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, VMware |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
