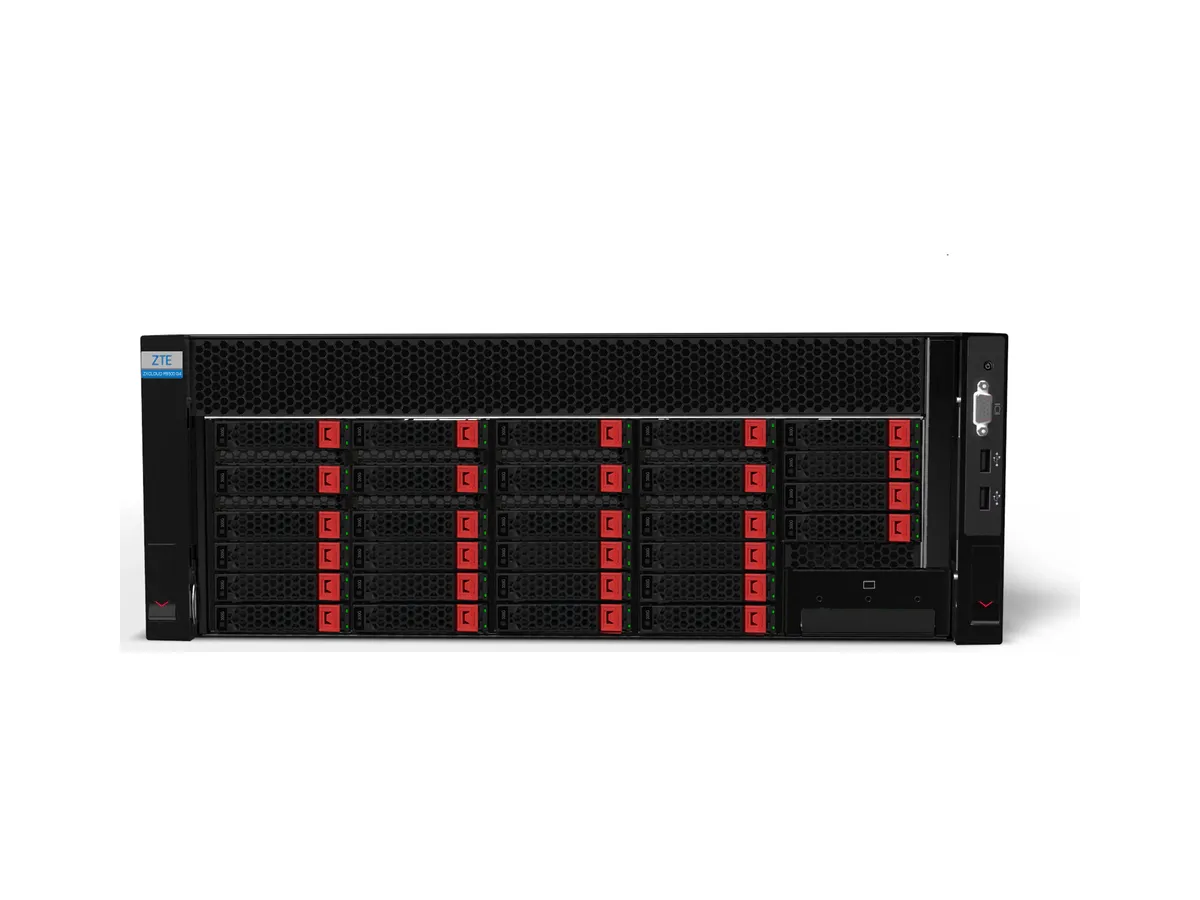

Key Architecture Highlights
- Chassis form factor: 4U
- Processor: Supports 4th-line first/second generation Intel® xeon® expansion processors
- Chipset: Lewisburg C622
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Processor | Supports 4th-line first/second generation Intel® xeon® expansion processors |
| Chipset | Lewisburg C622 |
| Memory support | 48 memory slots for DDR4 |
| Storage controller | Supporting standard and self-developed storage HBA, RAID card, RAID0/1/10/5/6/50/60 |
| Drive bays | Support for 28 2.5 tonnes of SAS/SATA drives (8 U.2NVMe drives) |
| Network | Integrated with 2 Gigabit + 2 10 Gigabit Ethernet interfaces and 1 IPMI to manage the Gigabit Ethernet interface |
| PCIe Slot | 13 PCIe 3.0 slots supporting multiple configurations |
| External interfaces | 4 units USB 3.0 Interface + 2 units USB2.0 Interface, 2 units 10 Gigabit Ethernetlight Ports + 2 units Gigabit Ethernet Copper port, 1 Threads Ports, 2 units VGA Interface, 1 Independent management network Ports |
| Power supply specifications | Platinum. Power supply, Output Power 550W / 800W / 1200W; Supports 100-240V Communications, Supports 240V / 336V Height Press the flow., Supports -48V Straightstream; Supports N + N Redundant power supply |
| Fan | 8 hot-plug fans, support N+1 redundant and support dynamic smart tuning |
| Environmental requirements | Operating temperature: + 5 ºC～ + 45 ºC (For further information, please consult China Communications Ltd.), Storage temperature: -40 ºC～ + 65 ºC, Relative humidity: Operating environment 10% ～ 90%, Altitude Height: 3000 Rice. |
| Chassis dimensions | The chassis dimensions are: H(175 mm) x W ((442mm) x D ((790mm) |
| Weight | Full configuration not exceeding 55kg |
| Supported operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, ZTE CGSL, VMware, RedFlag and other software that is used by the company. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
