Key Architecture Highlights

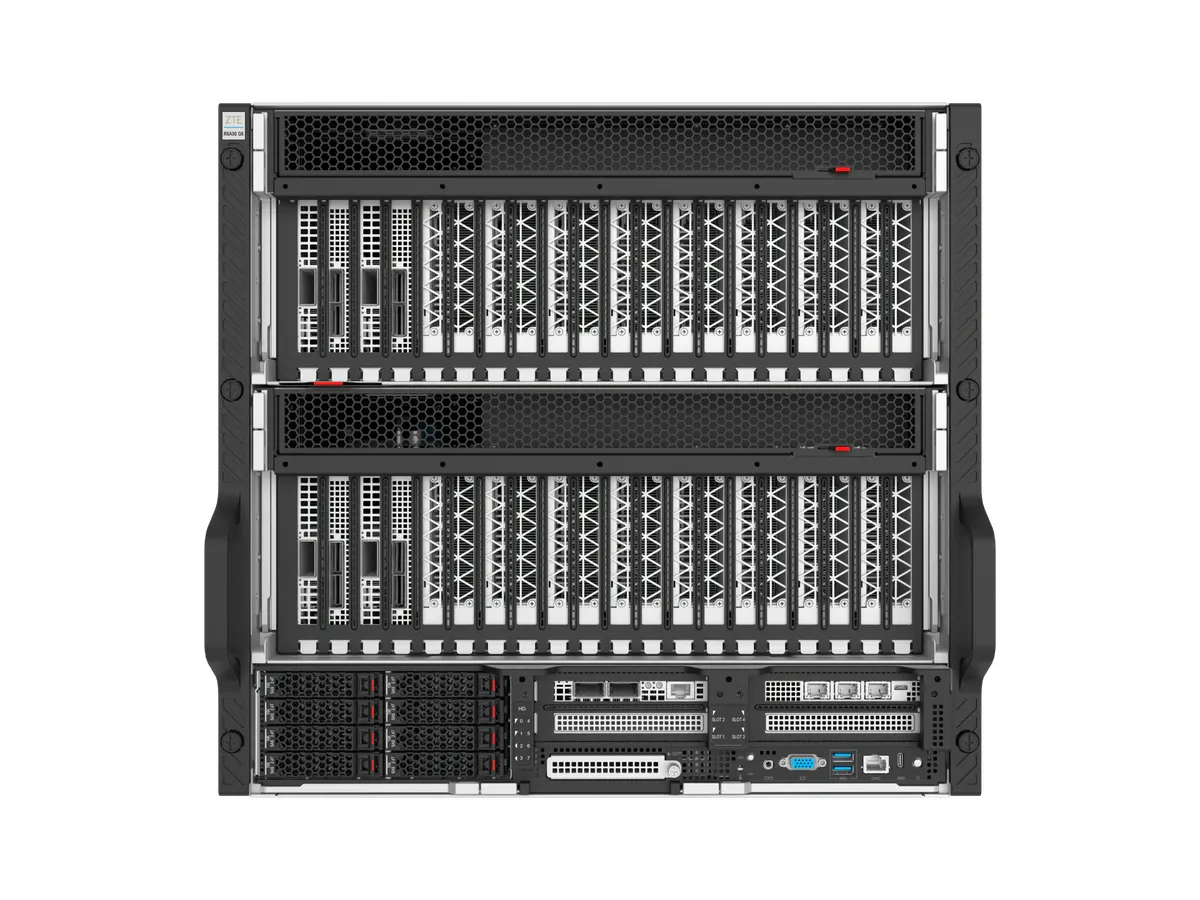

- Chassis form factor: 10U
- Supported processors: Supports 2 Processors AMD Turin Processor
- Memory slots: 24 memory slots supporting the DDR5 memory bar
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 10U |
|---|---|
| Supported processors | Supports 2 Processors AMD Turin Processor |
| Memory slots | 24 memory slots supporting the DDR5 memory bar |
| Storage controller | Standard PCIe RAID card, which supports RAID 0/1/10/5/6/50/60 |
| Drive bays | Maximum 24 SFF drive slots, supported with SAS/SATA/U.2/M.2 as needed |
| Network adapter | Provides 1 SFF Specifications OCP, Supports PCIe5.0x16, Optional Supports MultiHost |
| PCIe Slot | CPU straight out: 4 PCIe full-length and half-length scanning slots; switching straight out: 8 PCIe high speed standard slots |
| External interfaces | Front panel.: 1 units Standard VGA, 2 units Standard USB 3.0, 1 iSAC Management interface, 1 A Type-C string Ports, 1 units 3.5mm Audio String Ports |
| Power supply specifications | Supports up to 10 CPUs, N+N redundant and AC220V/DC240V power supply modules |
| Environmental conditions (Temperature / Humidity) | operating temperature: 5oC + 35oC; operating humidity: 10%oC 90%; altitude: ≤ 3000m |
| System Dimensions | 10U rack; not including side-ear and overhangs: 447 mm x 441.7mm x 899.2 mm; side-ear and overhangs: 482.6 mm x 441.7mm x 978.7 mm |
| Weight | Total configuration net weight approximately 170 kg, total configuration includes trailers, accessories and packaging of approximately 210 kg |
| Cooling fans | 20 8080 fans, support N+1 torque redundant and support dynamic smart tuning |
| Supported operating systems | Microsoft Windows Server , Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, VMware |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
