Key Architecture Highlights
- Chassis form factor: 6U
- Supported processors: Support 2 AMD Turin processors, with a single processor capable of supporting up to 192 cores
- GPU: It is compatible with the Nvidia MGX specification and supports 8*600W RTX Pro 6000D GPUs.
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 6U |
|---|---|
| Supported processors | Support 2 AMD Turin processors, with a single processor capable of supporting up to 192 cores |
| GPU | It is compatible with the Nvidia MGX specification and supports 8*600W RTX Pro 6000D GPUs. |
| Memory slots | 24 memory slots supporting the DDR5 memory bar |
| Storage controller | Standard PCIe RAID card, which supports RAID 0/1/10/5/6/50/60 |
| Drive bays | It supports 2 BayB+1 BayC modules; BayB can support 6 2.5 tonnes of NVMe/SAS/SATA drives; BayC can support 8 2.5 tonnes of NVMe/SAS/SATA drives. |
| Network adapter | PCIe tags |
| Shower Card | Integrated graphics card |
| PCIe Slot | Prefix: Supports 8 * X16 Double Width GPU Slot + 3 * X16 Single Width All Height All length PCIe Slot + 2 BayB modules (3 * X16 Single Width All Height All length PCIe Slot) |
| External interfaces | 1 * PTN button, 1 * UID button, health indicator lamp, 1 * RJ45 , 2 * USB 3.0 + 2 * USB 2.0 , 1 * MiniDP , 1 * Type C (Uart), 1 * RS485. |
| Power supply specifications | Supports dual input 4+1 redundant, supporting maximum load power consumption of 12000W; supports single input 4+4 redundant, supporting maximum load power consumption of 12000W |
| Environmental conditions | operating temperature: 5oC + 35oC; operating humidity: 10%oC 90%; altitude: ≤ 3000m |
| System Dimensions | Shelf-shaped 6U, 263.9mm*447mm*900mm ((high x wide x deep), not supported 1m depth cabinet |

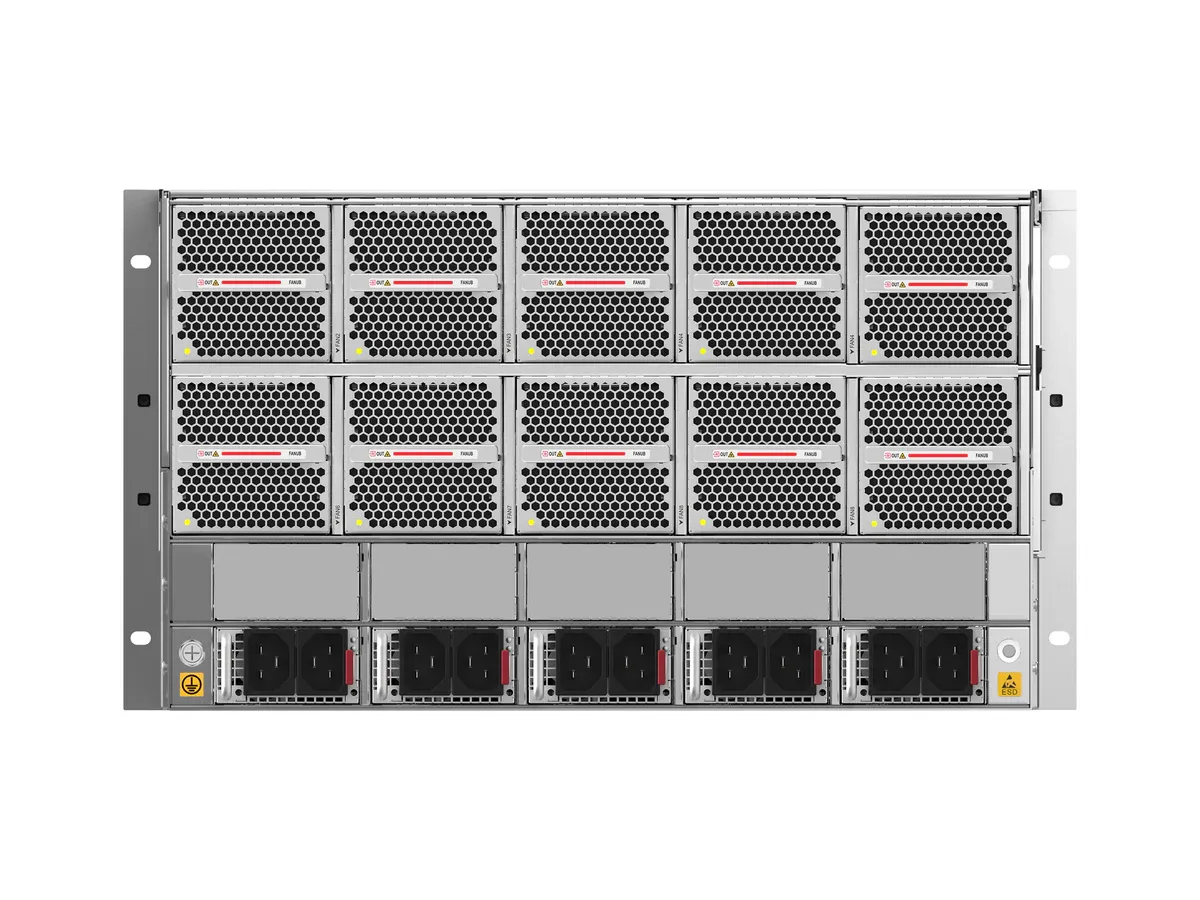

| Cooling fans | Support for 10*8080 fans, N+1 redundant; support for 4*6056 fans, N+1 redundant |
| Weight | Total configuration net weight approximately 125 kg, complete configuration includes guides, attachments and packaging of approximately 160 kg |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
