Key Architecture Highlights
- Chassis form factor: 4U
- Supported processors: Supports 2 Processors Hygon C86-4G Series Height Performance Processor, Every Processors Supports up to 64 Core
- Memory slots: 24 units DDR5 Memory slots, Up to Run rate 5200MT/s
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | Supports 2 Processors Hygon C86-4G Series Height Performance Processor, Every Processors Supports up to 64 Core |
| Memory slots | 24 units DDR5 Memory slots, Up to Run rate 5200MT/s |
| Storage controller | Standard PCIe RAID card, which supports RAID 0/1/10/5/6/50/60 |
| Drive bays | 1 supports up to 25 2.5 tonnes of SAS/SATA drives (optional support for NVMe SSDs, up to 8 NVMe SSDs); 2 supports up to 24 2.5 tonnes of SAS/SATA drives (optional support for NVMe SSDs, up to 12 NVMe SSDs); 3 supports up to 16 2.5 tonnes of SAS/SATA drives (optional support for NVMe SSDs, up to 12 NVMe SSDs); 4 built-in 2 M.2 SATA SSDs ((optional)) |
| PCIe Slot | 1 supports 13 standard PCIe 5.0 slots (non-thermal jack), 10 dual/single wide GPU accelerator cards + 1 token card, or 8 dual/single wide GPU accelerator cards + 5 token cards; 2 supports 21 standard PCIe 4.0 slots (non-thermal jack), 20 single wide half-length GPU accelerator cards + 1 token card, or 16 single full-length GPU accelerator cards + 5 token cards; 3 supports 12 standard PCIe 5.0 / PCIe 4.0 slots (non-thermal jack), support 8 dual/single wide GPU accelerator cards + 4 token cards; 2 built-in PCIE slot cards (optional), support RAID cards; 4 support 1 OCP slot (optional) |

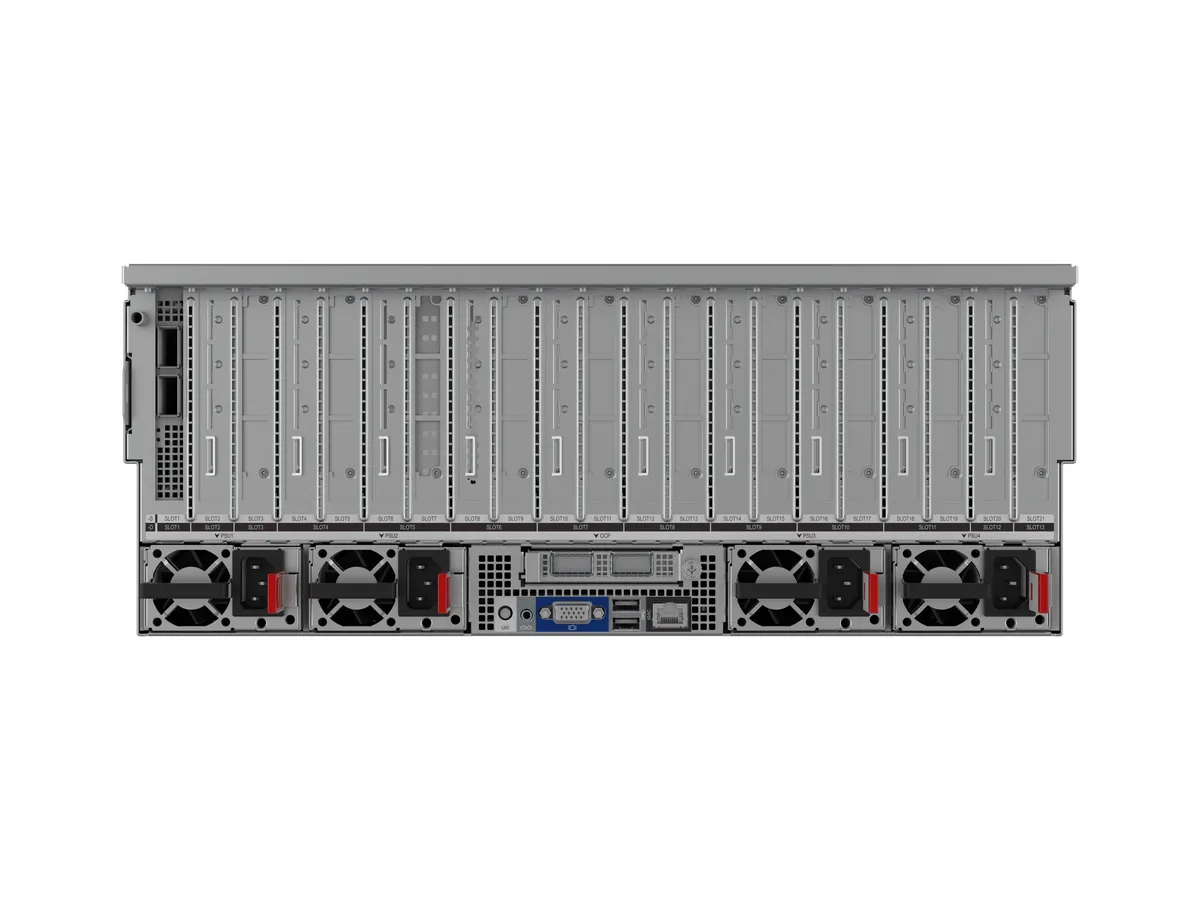

| External interfaces | Front panel.: 1 units Standard VGA; 1 units Standard USB 3.0 + 1 units Standard USB 2.0; Back window.: 1 units RJ45 IPMI Management interface; 2 units Standard USB 3.0; 1 units Standard VGA; 1 Threads Ports |
| Power supply specifications | Supports up to 4 power supply modules, supports N+N redundant mode, supports hot swapping; optional 220V AC/240V DC; and options for 1300W/2000W/2700W/3200W. |
| Environmental requirements | Operating temperature: 5 ℃～ 35 ℃; Storage Temperature: -40 ℃～ 65 ℃; Operating humidity: 8 ％～ 90 ％ RH, Non-condensing; Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing; Altitude Height: ≤ 3000m |
| System Dimensions | 19 inches Shelf, 447mm wide × 175mm high × 830mm deep |
| Fitting cabinet |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
