Key Architecture Highlights

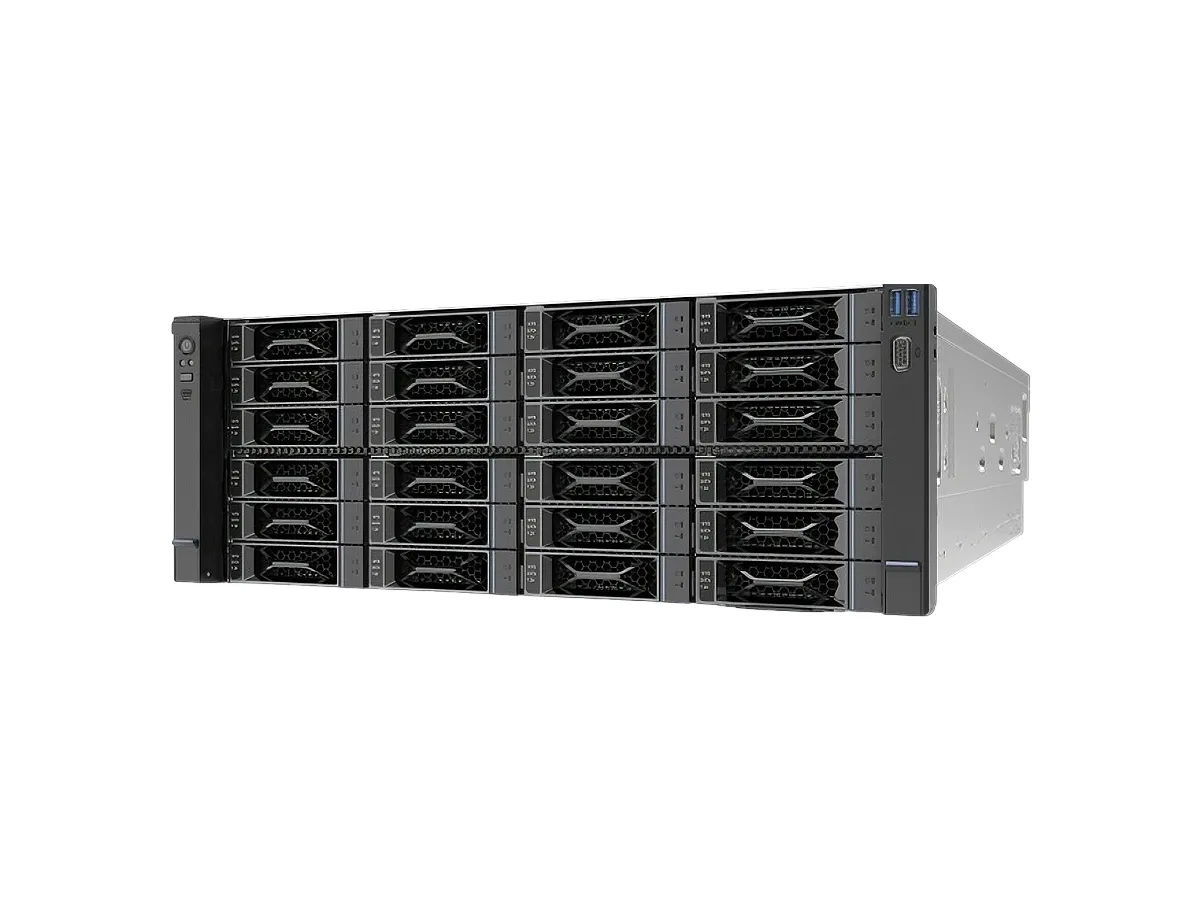

- Chassis form factor: 4U
- Supported processors: Support for 1/2 HYGON 5400 series processors
- Memory slots: Maximum 16 DDR5 5200 memory slots, maximum memory operating frequency support for 5200MHz
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | Support for 1/2 HYGON 5400 series processors |
| Memory slots | Maximum 16 DDR5 5200 memory slots, maximum memory operating frequency support for 5200MHz |
| Storage controller | Support for multiple storage schemes such as RAID 0\1\10\5\50\6\60; support for Cache supercapacity protection; provide RAID state migration, RAID configuration memory and more. |
| Drive bays | The front support up to 24 3.5" SAS/SATA drive bays; the back supports up to 16 3.5" drive bays and 4 2.5" drive bays; supports up to 8 NVMe U.2 drives; supports 2 M.2 SSDs. |
| Network adapter | Supports Expansion Double Ports 1G RJ45 / Double Ports 10G RJ45 / Double Ports 10G SFP + / Double Ports 25G / 100G And 200G Including Multiple Network; Optional 2 units OCP 3.0 Network adapter |
| PCIe Slot | Maximum Yeah. Supports 11 units PCIe Expansion slots (Ham 1 Internal Storage Card Special purpose Slot And 2 units OCP Slot) |
| External interfaces | 2 units VGA Interface, 1 One is in Chassis Back, 1 One is in Chassis Front; 4 units USB Interface, 2 One is in Chassis Back / 2 One is in Chassis Front; 1 units RJ-45 Management interface in Chassis Back |
| Power supply specifications | 2 CRPS standard power supply (1300W/2000W), supports hot swapping, supports 1+1 redundant |
| Environmental conditions | Operating temperature: 5 ℃～ 35 ℃ (Yeah. Supports It's... Operating temperature And Actual Configuration Related); Operating humidity: 5 ％～ 90 ％ RH (Non-condensing); Transport Storage Humidity: 5 ％～ 95 ％ RH (Non-condensing); Altitude Height: ≤ 5000m (Actual altitude Supports As you wish. Configuration Differences between changes) |
| System Dimensions | It's got a hanger.: W (Width) 482.00mm; H (Height) 175.50mm; D (Depth) 846.00mm; _Other Organiser: W (Width) 446.00mm; H (Height) 175.50mm; D (Depth) 816.00mm |
| Cooling fans | 4 groups of efficient fans, N+1 redundant |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
