Key Architecture Highlights
- Chassis form factor: 4U
- Fitting cabinet: 19 Inches ≧ 1200mm Depth The cabinet.
- Supported processors: Support for 1/2 HYGON 5400 series processors
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Fitting cabinet | 19 Inches ≧ 1200mm Depth The cabinet. |
| Supported processors | Support for 1/2 HYGON 5400 series processors |
| Memory slots | Maximum 16 DDR5 5200 memory slots, maximum memory operating frequency support for 5200MHz |
| Storage controller | Support for multiple storage schemes such as RAID 0\1\10\5\50\6\60; support for Cache supercapacity protection; provide RAID state migration, RAID configuration memory and more. |
| Drive bays | The front support up to 24 3.5" SAS/SATA drive bays; the back supports up to 16 3.5" drive bays and 4 2.5" drive bays; supports up to 8 NVMe U.2 drives; supports 2 M.2 SSDs. |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1080 |
| PCIe Slot | Maximum Yeah. Supports 11 units PCIe Expansion slots (Ham 1 Internal Storage Card Special purpose Slot And 2 units OCP Slot) |
| Expansion Device Interface | 2 units VGA Interface, 1 One is in Chassis Back, 1 One is in Chassis Front; 4 units USB Interface, 2 One is in Chassis Back / 2 One is in Chassis Front; 1 units RJ-45 Management interface in Chassis Back |
| Power supply specifications | 2 CRPS standard power supply (1300W/2000W), supports hot swapping, supports 1+1 redundant |
| Environmental requirements | operating temperature: 5°C and 35°C ((supported operating temperature and actual configuration related); operating humidity: less than 80% RH, non-condensing; transport storage Humidity: less than 93% RH, non-condensing; altitude height: ≤3000 m |

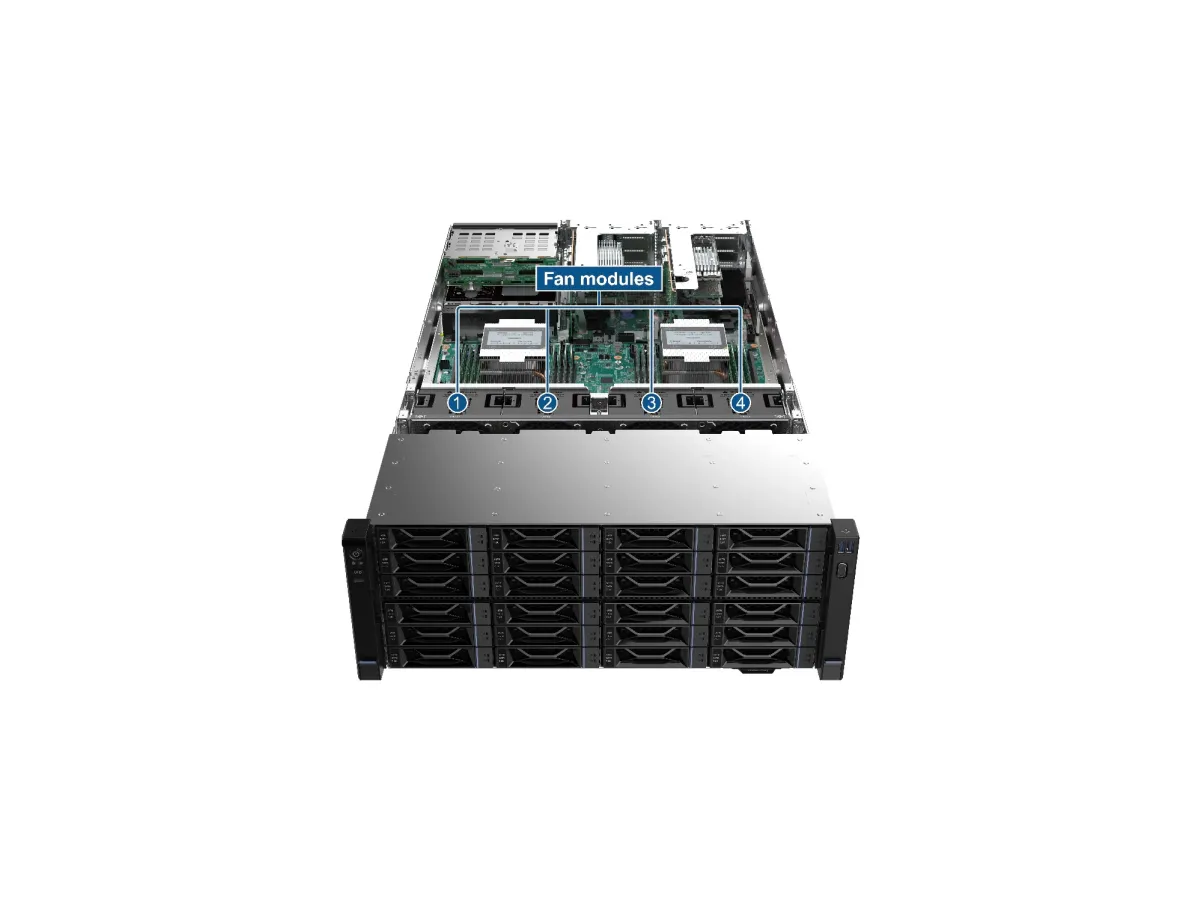

| Cooling fans | 4 groups of efficient fans, N+1 redundant |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
