Key Architecture Highlights

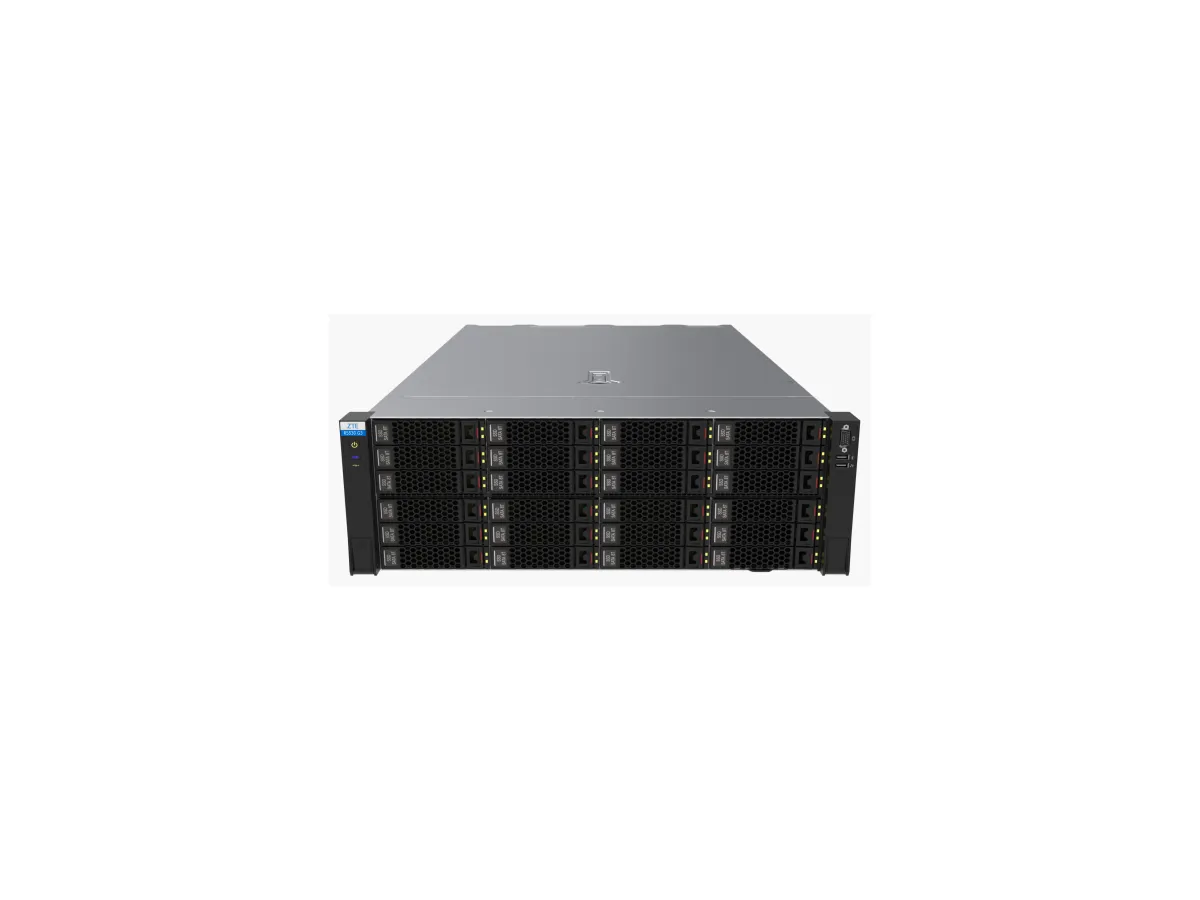

- Chassis form factor: 4U
- Supported processors: It supports 1/2 C86-4G processors, each supporting up to 64 cores and superstrands.
- Memory slots: Supports up to 24 units DDR5 4800 ~ 5600 RDIMM / L RDIMM Memory
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | It supports 1/2 C86-4G processors, each supporting up to 64 cores and superstrands. |
| Memory slots | Supports up to 24 units DDR5 4800 ~ 5600 RDIMM / L RDIMM Memory |
| Storage controller | Support for HBA, RAID cards and SAS 4.0/SATA 3.0/PCIe 3.0/PCIe 4.0/PCIe 5.0 |
| Drive bays | It supports hot swapping, HDD support; 24x2.5/3.5 ton drive bays, HDD/SSD support; 8 slot slots, U.2; multiple back-up storage module configurations, multi-choice, support hot swapping, HDD support; SSD: 12x2.5/3.5 ton drive bays, supporting HDD/SSD/U.2 drive; optional drives support up to 4x2.5 ton, 4x3.5 ton or 8x2.5 ton drive bays, supporting HDD/SSD/U.2 drive; built-in options support up to 2xM.2 |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1080 |
| System management | The interface is available in Chinese and supports IPMI 2.0, SNMP, RedFish, KVM Over IP. |
| PCIe Slot | Maximum expansion of 12 PCIe slots (including 2 OCP 3.0 slots) |
| Expansion Device Interface | 4 USB interfaces (2 USB 3.0 on the back, 1 USB 3.0 on the front, 1 USB 2.0 on the rear), 1 internal USB 3.0 interface; 1 Type-C operating interface; 2 VGA interfaces (front end 1 and rear end 1); 1 Type-C serial ports; 1 IPMI GE management interface |
| Power supply specifications | 2 A CRPS Standard Power supply, Supports hot swapping, Supports 1+1 Redundant / Supports Load Balance; Supports Multiple Power input Formula: 110/220VAC / -48VDC, 240VDC / 336VDC Power input |
| Environmental requirements | Operating temperature: 5 ℃～ 40 ℃; Storage Temperature: -40 ℃～ 65 ℃; Operating humidity: 8 ％～ 90 ％ RH, Non-condensing; Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing; Altitude Height: ≤ 5000 Rice. |
| Cooling fans | 4 sets of plug-in and plug-in fans with a dynamic intelligent fan cooling system |
| Supported operating systems |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
