Key Architecture Highlights

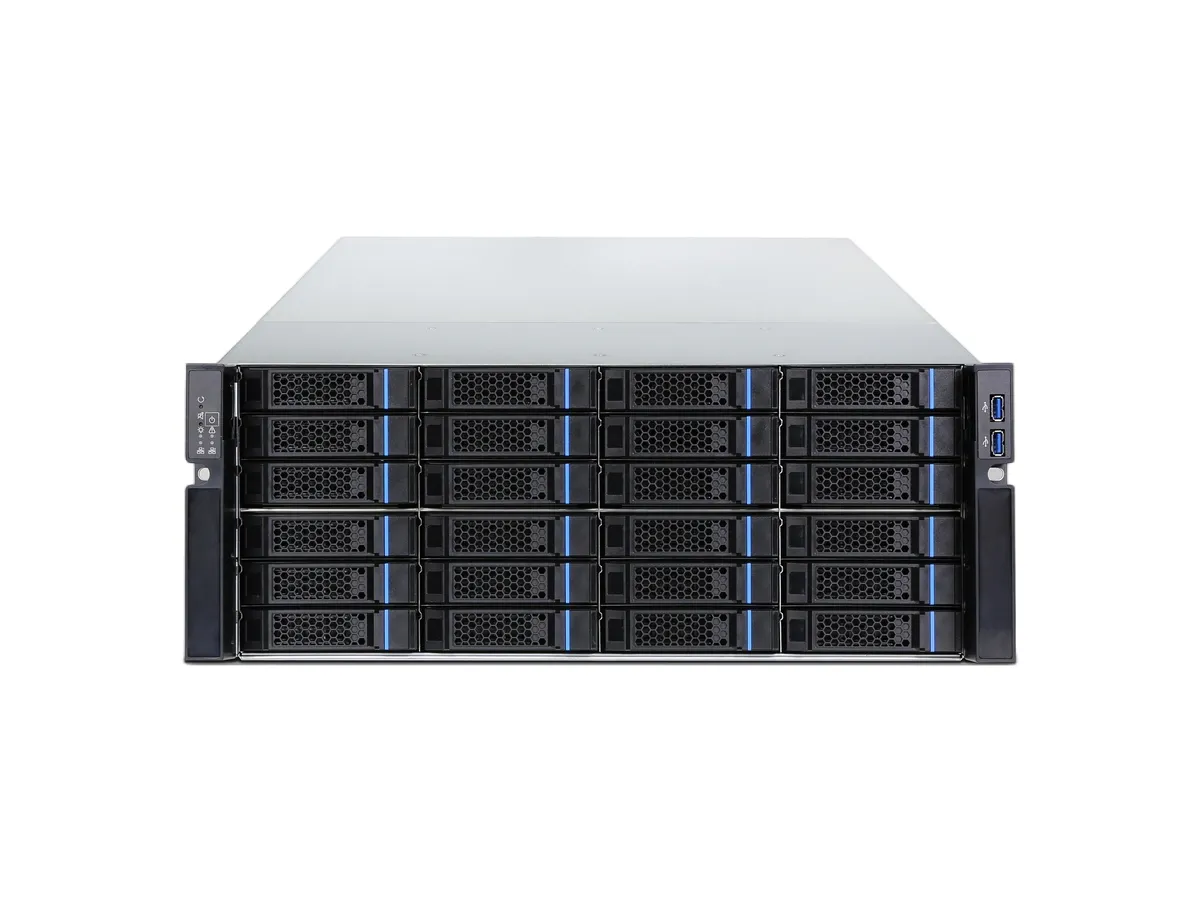

- Whole machine form: Standard 19 inch 4U airframe
- Supported processors: The S5000C/24 or 32 nucleus, number 2
- Memory support: It supports 8 DDR5 memory slots and supports up to 4000MHz memory frequency.
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Whole machine form | Standard 19 inch 4U airframe |
|---|---|
| Supported processors | The S5000C/24 or 32 nucleus, number 2 |
| Memory support | It supports 8 DDR5 memory slots and supports up to 4000MHz memory frequency. |
| Drive bays | Prefix 24 units 3. 5/2. 5 Inches SATA / SAS Hot-swappable Drive bits, Back 12 units 3. 5/2. 5 In English SATA / SAS Hot-swappable Drive bits; Back 2 units 2. 5 Inches System Drive bits |
| RAID Features | Board 1 units SATA3. 0 Controller, Supports Soft RAID 0 / 1 / 10 Yeah. Expansion RAID Card Supports Multiple RAID Level of protection |
| Network Controller | Board 1 units 4 Ports Gigabit Ethernet Controller |
| External And Board Interface | Prefix 2 units USB3. 0 Interface; Back 4 units USB3. 0 Interface, 4 units Gigabit Ethernet Ports, 1 Ethernet for remote management Ports, 1 units VGA Interface, 1 units COM Interface; Board 5 units PCIE5. 0 x16 Slot, 4 units SATA3. 0 Interface, 1 The M. 2 2280 Interface, 1 A Mini. PCIE Interface, 4 units MCIO Interface (PCIE 5. 0 X8) |
| Power supply specifications | Standard 800W 1+1 redundant power supply |
| Server management | Board BMC Management module, External Provides 1 Ethernet for remote management Ports, Supports KVM Over IP / Remote Switches / Status Monitor Including Features |
| Solid | The national autonomously controlled security BIOS/BMC |
| Operating systems | Support for server operating systems such as Galaxy Note, UOS and others |
| Operating environment | The operating temperature: 0°C to 40°C; non-operating temperature: -40°C to 60°C; operating humidity: 10% and 90%; non-operating humidity: 5% and 95% (non-corrosion) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
