Key Architecture Highlights

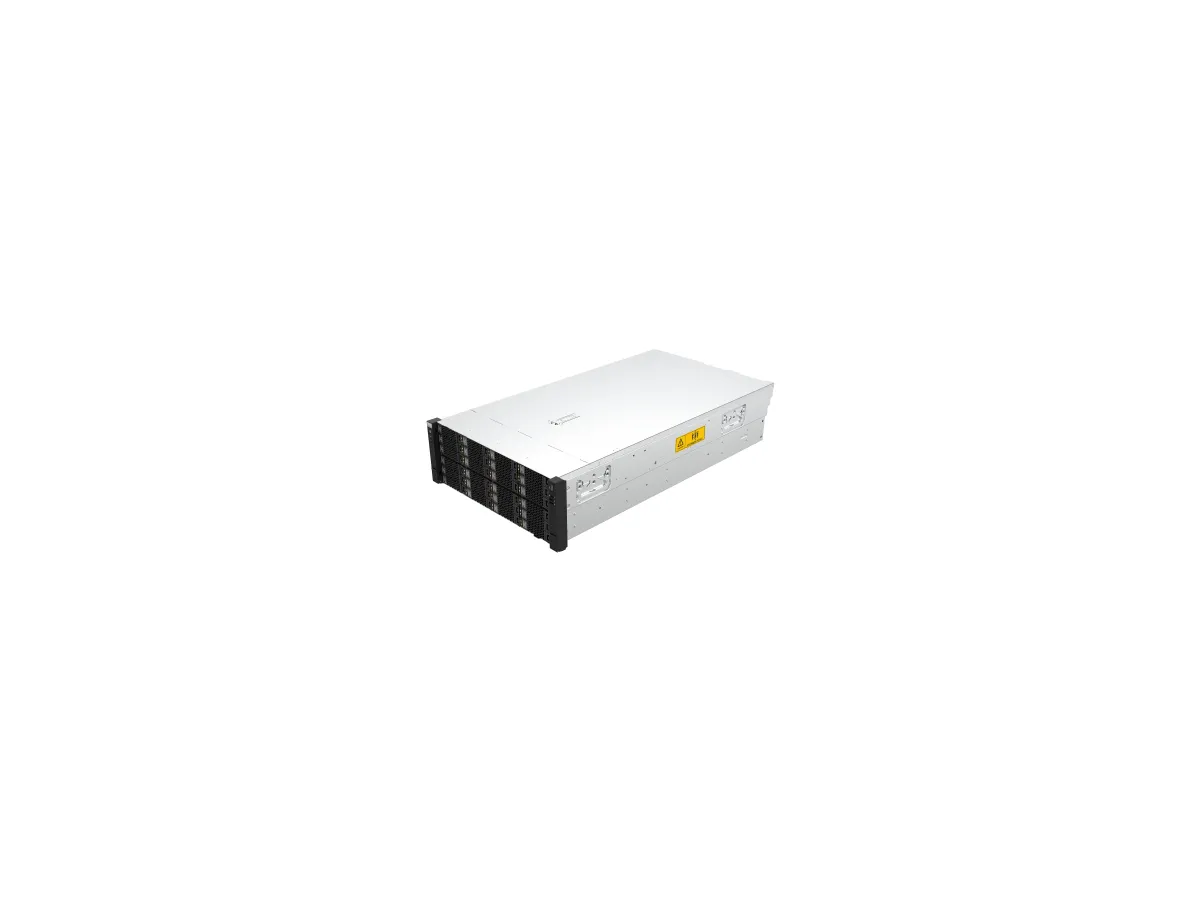

- Chassis form factor: 4U rack server
- Supported processors: Support for 1/2 Intel® Xeon® 6 energy efficient nuclear processor
- Memory support: 32 DDR5 memory slots with a top speed of 6400MT/s
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U rack server |
|---|---|
| Supported processors | Support for 1/2 Intel® Xeon® 6 energy efficient nuclear processor |
| Memory support | 32 DDR5 memory slots with a top speed of 6400MT/s |
| Interconnect bus | It offers 4 UPI interconnected links, with a single link speed of up to 24GT/s. |
| Storage controller | Support for RAID 0/1/5/6/10/50/60 and other support for power outage protection |
| Local storage | Provides Multiple prefixes Drive bays Configuration, Supports hot swapping:; 24x2.5/3.5 ” Drive bays, Supports HDD / SSD, of which 8 units Slots bits Supports U. 2 Drive; Provides Multiple backsets Storage Modules Configuration, Replaceable Modules Multiple Selection, Supports hot swapping:; 12x2.5/3.5 ” Drive bays, Supports HDD / SSD / U. 2/E3.S Drive; 2x2.5 ” Drive bays Replaceable Modules, Supports HDD / SSD / U. 2/E1.S Drive, Supports up to 4 Blocks Drive; 2x2.5/3.5 ” Drive bays Replaceable Modules, Supports HDD / SSD / U. 2/E3.S/E1.S Drive, Supports up to 4 Blocks Drive |
| Network interfaces | Provides 2 units OCP3.0 Interface, Supports PCIe 5.0 x8, Optional Expansion Yes. 2 units PCIe 5.0 x16, Optional Supports MultiHost |
| PCIe Expansion slots | Maximum support for 12 PCIe expansion slots: 2 OCP dedicated slots, 10 standard PCIe slots |
| External interfaces | 5 units USB Interface (2 A rear. USB3.0, 1 Front USB3.0, 1 Internal USB2.0, 1 Front USB2.0); 2 units VGA Interface (Frontend 1 units, Backend 1 units); 1 Threads Ports (TYPE-C) |
| Management interface | 1 Independent GE management network Ports |
| Supported operating systems | It is compatible with the current mainstream server operating systems: Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Enterprise Linux, VMware ESXi, Ubuntu and others. |
| Power supply specifications | Supports 1+1 Hot-swappable Redundant power supply; Optional 550W/800W/1200W/1600W/2000W/2700W/3200W/3600W, Supports Height Platinum / titanium. Power supply; Supports 110V/220V Communications / 240V/336V Height Press the flow. / -48V Straightstream |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
