Key Architecture Highlights

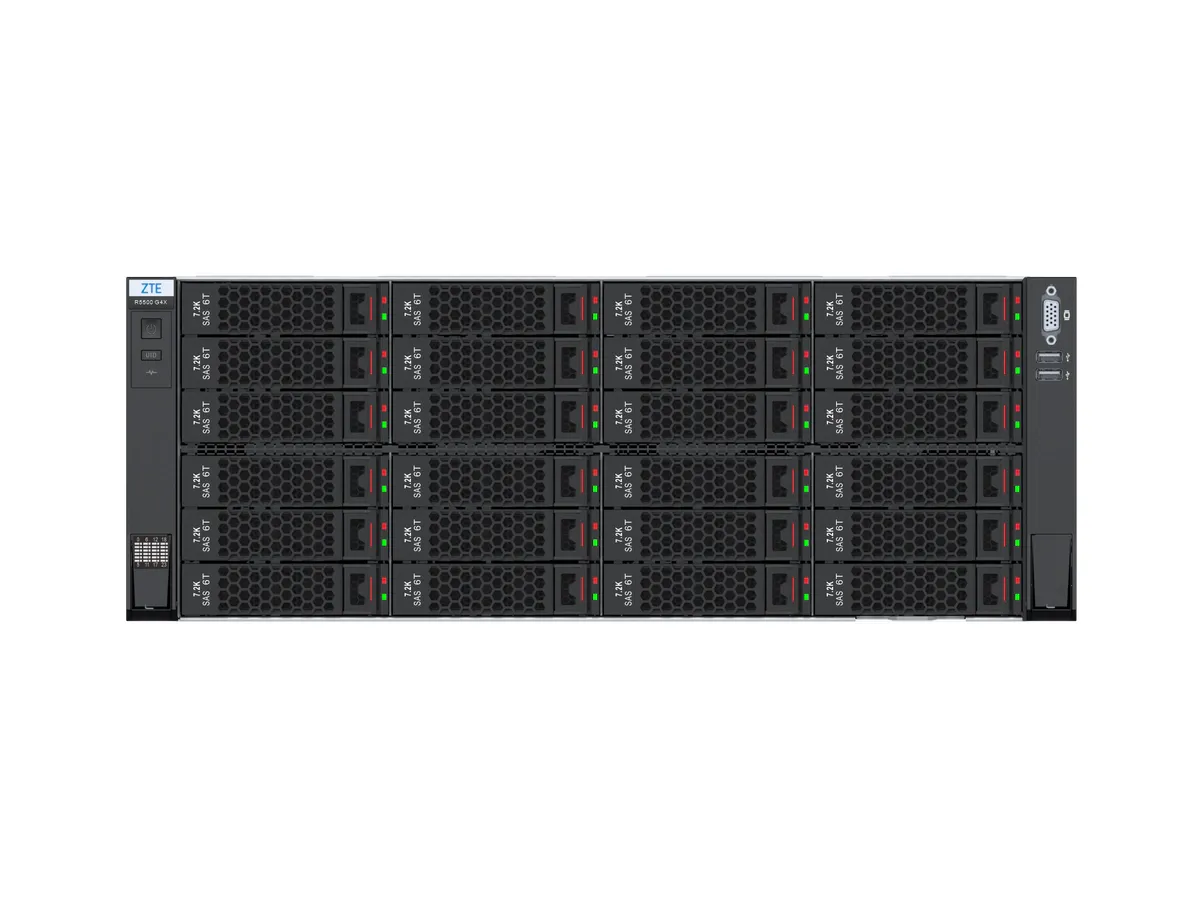

- Chassis form factor: 4U
- Supported processors: Supports 1/2 Xeon Scalable Ice Lake series processors, each supporting up to 40 cores
- Memory support: 32 units DDR4-3200 RDIMM / L RDIMM Memory slots, Maximum memory Capacity Koda. 12TB
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Supported processors | Supports 1/2 Xeon Scalable Ice Lake series processors, each supporting up to 40 cores |
| Memory support | 32 units DDR4-3200 RDIMM / L RDIMM Memory slots, Maximum memory Capacity Koda. 12TB |
| Drive bays | Provides Multiple Drive bays Configuration, Supports up to 44 units 2.5 Yes. Or 40 units 3.5 Yes. + 4 units 2.5 Yes. SAS / SATA HDD / SSD Hot-swappable Drive. Supports up to 26 units NVMe U. 2 Drive, Yeah. Supports 2 units M.2 SATA SSD |
| Storage controller | Support for standard and self-developed storage HBA, RAID card, SAS3.0/SATA3.0/PCIe3.0/PCIe4.0 |
| PCIe Slot | Maximum expansion of 12 PCIe slots (including 1 RAID card slot and 1 OCP slot) |
| External interfaces | 4 units USB Interface (2 A rear. USB3.0/USB2.0, 2 Front USB2.0), 2 units VGA Interface (Frontend 1 units, Backend 1 units), 1 units RJ45 Thread Ports, 2 units Service GE Interface, 1 units IPMI GE Management interface |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1080 |
| System management | The interface is available in Chinese, with support for IPMI 2.0, SNMP V2/V3, RedFish and KVM Over IP. |
| Power supply specifications | 2 A CRPS Standard Power supply, Supports hot swapping, Supports 1+1 Redundant Platinum. Power supply, Provides 550W / 800W / 1200W / 1600W Including Multiple Specifications Supports Multiple Power input Formula: 110/220VAC / -48VDC, 240VDC / 336VDC Power input |
| Cooling fans | 4 plug-in redundant in-flight fans, supporting a dynamic intelligent fan cooling system |
| Supported operating systems | CGSL, Microsoft Windows Server , Suse, Redhat, Centos, VMWare ESXI, Linux, and other operating systems Note: Specific versions of supported operating systems for reference to list of server compatibility |
| Chassis dimensions | 19 inches Airframe, chassis dimensions: 447.6mm (width) x 175mm (height) x 780mm (length), excluding side ears 482.6mm (width) x 175mm (high) x 780mm (long), excluding side ears |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
