Key Architecture Highlights

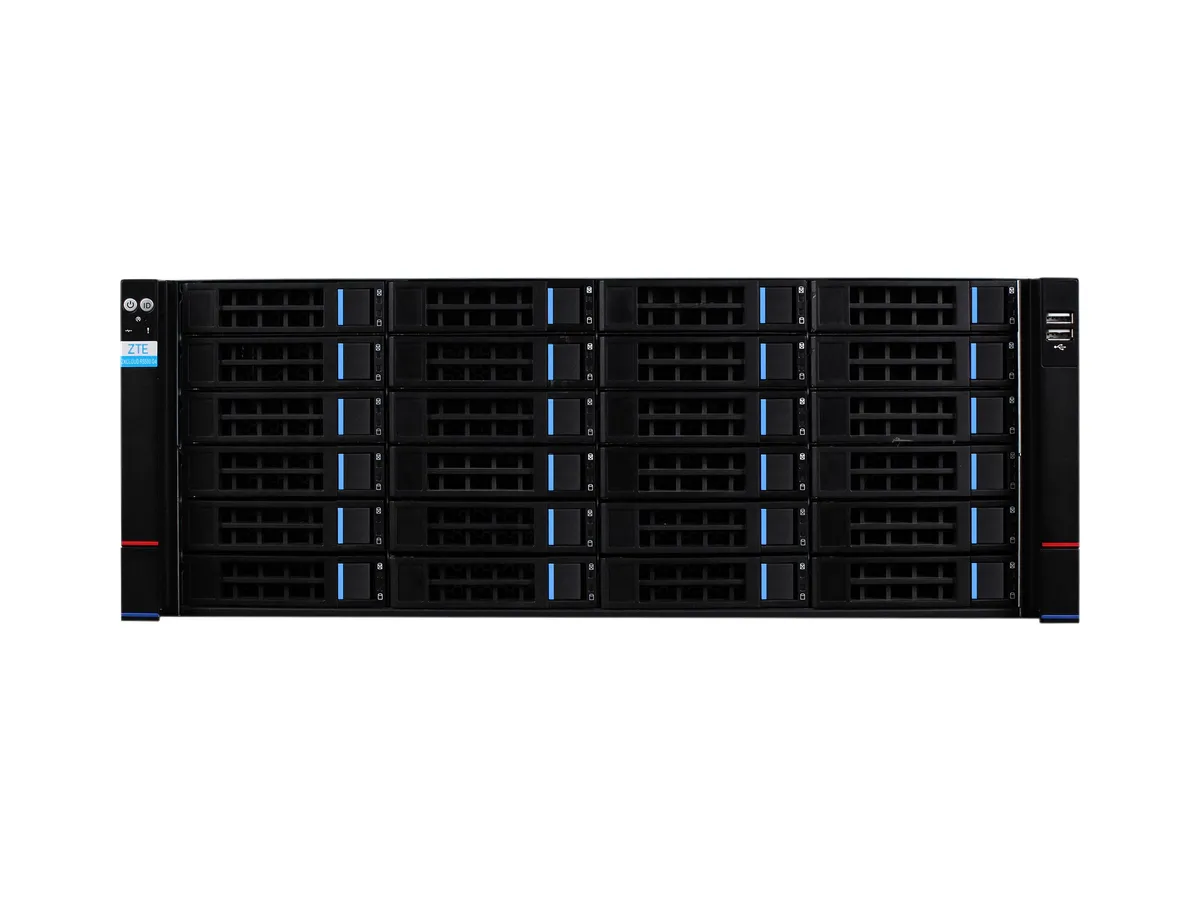

- Chassis form factor: 4U
- Processor: Support for 1/2 Intel® xeon® expandable processor
- Chipset: Lewisburg C622
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 4U |
|---|---|
| Processor | Support for 1/2 Intel® xeon® expandable processor |
| Chipset | Lewisburg C622 |
| Memory support | 16 memory slots supporting the DDR4 memory bar |
| Drive bays | It supports 36 2.5 ton or 3.5 ton SAS/SATA hot-swappable HDD/SSD drives, 4 NVMe U.2 drives and 2 2.5 ton SAS/SATA hot-swappable HDD/SSD drives. |
| Storage controller | Support for 12GB SAS HBA/RAID cards, and RAID 0, 1, 5, 6, 10, 50 and more |
| Network | Integration 2 units Gigabit Ethernet Interface And 1 units IPMI Management Gigabit Ethernet Interface |
| PCIe Expansion | Support for multiple configurations: 7 PCIe 3.0 slots (1 non-signal slot) |
| External interfaces | 4 units USB 3.0 Interface. 2 units Gigabit Ethernet Ports, 1 Threads Ports, 1 units VGA Interface, 1 Independent administration Gigabit Network Ports |
| Power supply specifications | Power supply 550W/800W/1200W AC: 100-240v/50~60Hz High Voltage Direct Current:240V/336V Low Voltage Direct Current:-48V Supporting 1+1 hot-swappable redundant power supply |
| Fan | 8 hot-plug fans, support N+1 redundant and support dynamic smart tuning |
| Supported operating systems | Compatible with current mainstream server operating systems, including but not limited to: Windows Server 2012 (x64), Windows Server 2012 R2 (x64), Windows Server 2016 (x64), RedHat Linux Enterprise 7.3, SUSE Linux Enterprise Server 13 (x64), VMware ESXi 6.0 Details Reference Operating Systems Compatibility list |
| Chassis dimensions | The chassis dimensions are: H(177mm) x W ((433.6mm) x D ((670mm)) |
| Weight | Maximum weight of 53.4kg |
| Environmental requirements | Operating temperature: 5 ℃～ 40 ℃, Storage Temperature: -40 ℃～ 65 ℃, Operating humidity: 8 ％～ 90 ％ RH, Non-condensing, Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing, Altitude Height: 3000 Rice. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
