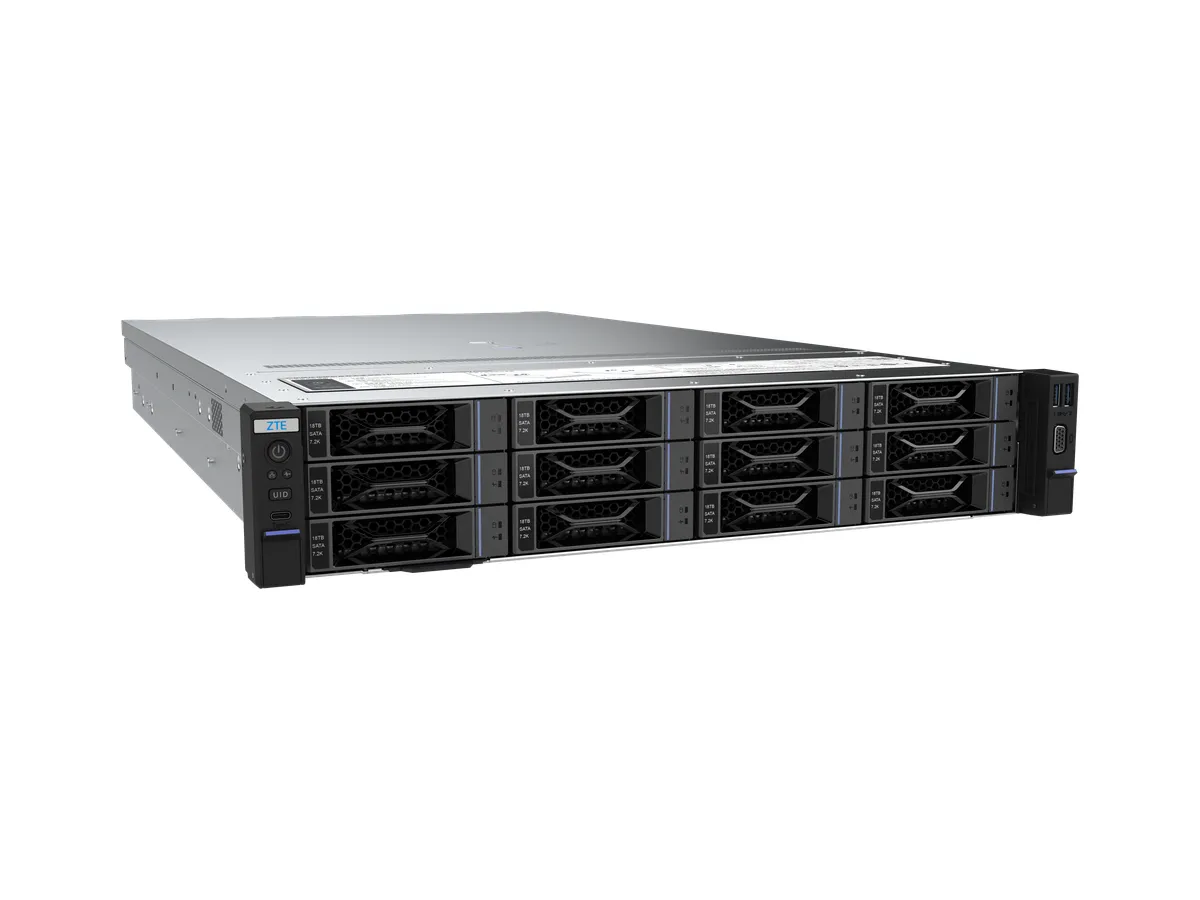

Key Architecture Highlights
- Chassis form factor: 2U
- Fitting cabinet: 19 inches of aluminum 1000mm deep cabinet
- Memory slots: 16 DDR5 memory slots, support for DDR5 5200MHz memory, support for RDIMM and support for ECC
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Fitting cabinet | 19 inches of aluminum 1000mm deep cabinet |
| Memory slots | 16 DDR5 memory slots, support for DDR5 5200MHz memory, support for RDIMM and support for ECC |
| Storage controller | Integrated SATA drive controller; support for direct communication, RAID 0/1/5/6/10/50/60 and other storage options; support for cache supercapacity protection when configuring RAID, providing RAID-level migration, disk roaming, self-diagnosis, web remote setting, and supporting RAID secure startup. |
| Drive bays | 12 disc chassis front-end storage: maximum support for 12 3.5 inch SATA/SAS/NVMe drives; 24 disc chassis front-end storage: maximum support for 24 2.5 inch SATA/SAS drives; backend storage: support for 4 2.5 inch SATA/SAS/NVMe+4 3.5 inch SATA/SAS drives; support for 2 M.2 SSDs |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1200 |
| System management | Supports National production BMC Chip, Provides 1 units 1Gbps RJ45 Management Ports, Supports IPMI2.0 / Redfish / SNMP Including Standard Interface. Provides Comprehensive failure diagnosis / Automation of transport / Remote management Including Features |
| PCIe Slot | Maximum 10 PCIe 5.0 slots (including built-in controller slot and OCP slot) |
| Expansion Device Interface | 1 RJ-45 management interface; 2 VGA interfaces located at the back of the chassis, 1 in the rear of the chassis, 1 in the front of the chassis; 4 USB interfaces, 2 in the rear of the chassis, 2 in the front of the chassis |
| Power supply specifications | The CRPS power supply is available at 1300W or 2000W, supporting 1+1 redundant |
| Environmental requirements | Operating temperature: 5 ℃～ 45 ℃; Storage Temperature: -40 ℃～ 60 ℃ |
| System Dimensions | 87mm (Height) x 446mm (Width) x794mm (Depth) |
| Cooling fans | 6 hot-swappable fans supporting N+1 redundant |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
