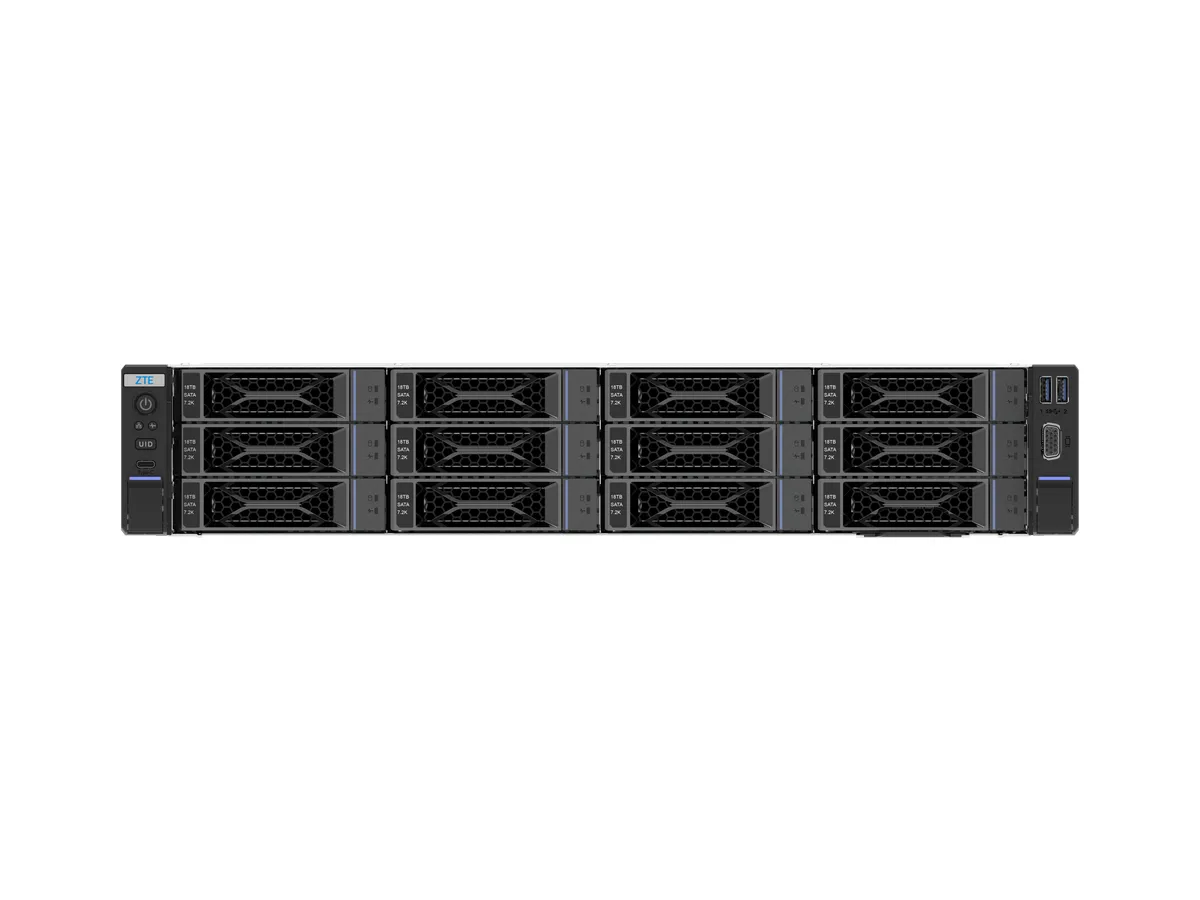

Key Architecture Highlights
- Chassis form factor: 2U
- Fitting cabinet: 19 inches of aluminum 1000mm deep cabinet
- Supported processors: Supports 2 Processors HYGON C86-4G 5400 Series Processor, Up to Supports 64 Physics Cores 128 Threads
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Fitting cabinet | 19 inches of aluminum 1000mm deep cabinet |
| Supported processors | Supports 2 Processors HYGON C86-4G 5400 Series Processor, Up to Supports 64 Physics Cores 128 Threads |
| Memory slots | 16 DDR5 memory slots, support for DDR5 5200MHz memory, support for DIMM/LRDIMM and support for ECC |
| Storage controller | Integrated SATA drive controller; support for direct communication, RA1D 0/1/5/6/10/50/60 and other storage options; support for cache supercapacity protection when configuring RAID, providing RAID-level migration, disk browsing, self-diagnosis, web remote setting, and support for RAID security boot ups. |
| Drive bays | 12 drive bays: support for up to 12 LFF/SFF, support for SAS/SATA drive mixing; support for 2 SFF; supports up to 8 U.2 SSDs; support for 2 M.2 SSDs |
| Network | The company is also responsible for the development of the integrated domestic dual ports 1GE RJ45. |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1080 |
| System management | Integration BMC Chip, Provides 1 units 1 Gbps RJ45 Management Ports, Supports PMl2.0 / Redfish / SNMP Including Standard Interface. Provides Comprehensive failure diagnosis / Automation of transport / Remote management Including Features |
| PCIe Slot | Maximum expansion: 6 PCIe 5.0 slots and 1 OCP 3.0 slot |
| Expansion Device Interface | 1 units RJ45 Management interface; 2 units VGA Interface, 1 One is in Chassis Back, 1 One is in Chassis Front; 4 units USB Interface, 2 One is in Chassis Back, 2 One is in Chassis Front |
| Power supply specifications | Select 800W or 1300W CRPS efficient platinum power supply, supporting 1+1 redundant |
| Environmental requirements | Operating temperature: 5 ℃～ 45 ℃; Storage Temperature: -40 ℃～ 60 ℃ |
| System Dimensions |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
