Key Architecture Highlights
- Chassis form factor: 2U
- Fitting cabinet: 482.6mm wide (including side ears) x 87mm high x 830mm deep; standard 19 inches airframe depth >=1.2 m)
- Supported processors: It supports 1/2 C86-4G processors, each supporting up to 64 cores and superstrands.
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Fitting cabinet | 482.6mm wide (including side ears) x 87mm high x 830mm deep; standard 19 inches airframe depth >=1.2 m) |
| Supported processors | It supports 1/2 C86-4G processors, each supporting up to 64 cores and superstrands. |
| Memory slots | Supports up to 24 units DDR5 4800 ~ 5600 RDIMM / L RDIMM Memory |
| Storage controller | Support for HBA, RAID cards and SAS 4.0/SATA 3.0/PCIe 3.0/PCIe 4.0/PCIe 5.0 |

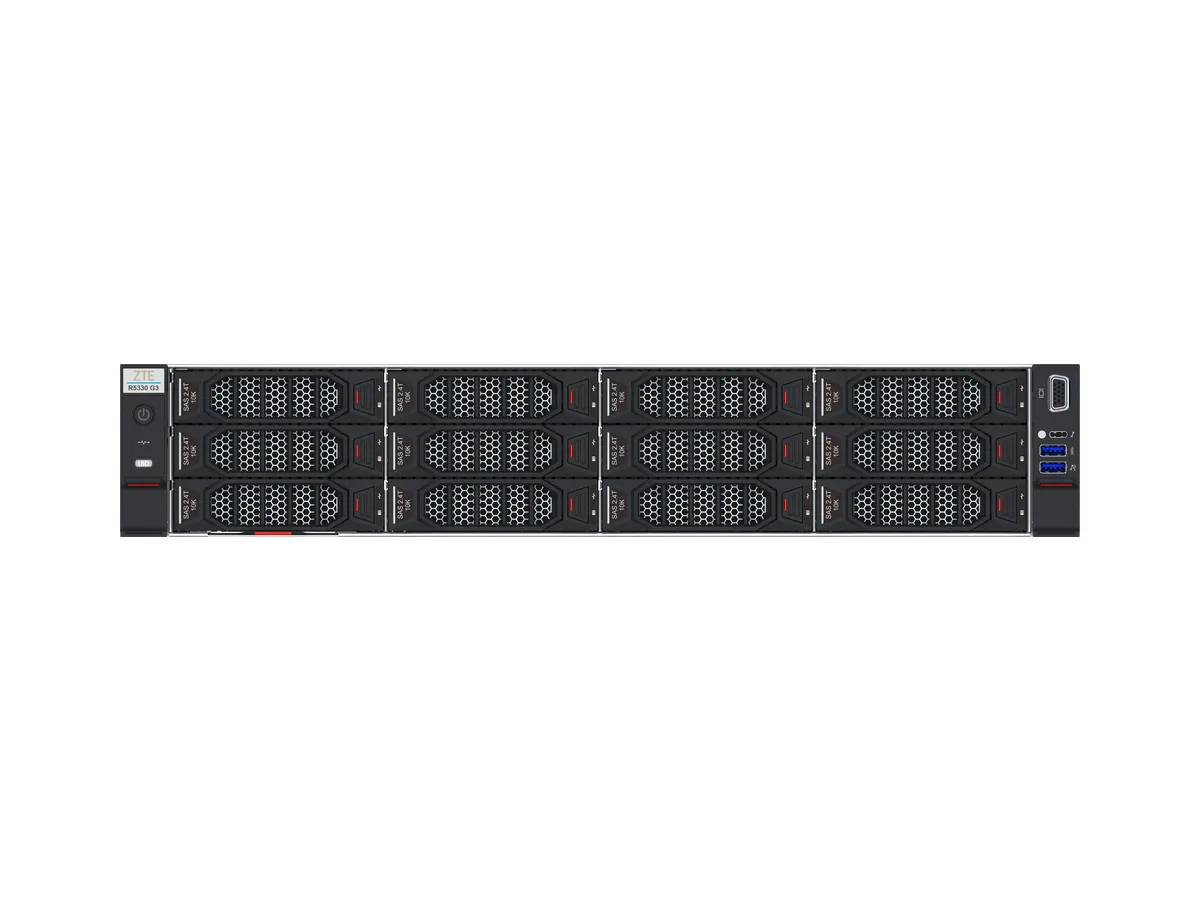

| Drive bays | Provides Multiple prefixes Drive bays Configuration, Supports hot swapping, Supports HDD / SSD:; 8x2.5 ” Drive bays, Supports SAS / SATA / U. 2; 16x2.5 ” Drive bays, Supports SAS / SATA / U. 2; 24x2.5 ” Drive bays, Supports SAS / SATA / U. 2; 25x2.5 ” Drive bays, Supports SAS / SATA, of which 8 units Supports U. 2; 12x3.5 ” Drive bays, Supports SAS / SATA / U. 2; Provides Multiple backsets Storage Modules Configuration, Multiple Choices, Supports hot swapping, Supports HDD / SSD:; 2x2.5 ” Drive bays, Supports SAS / SATA / U. 2, Supports up to 4 units Drive; 2x3.5 ” Drive bays, Supports SAS / SATA / U. 2, Supports up to 4 units Drive |
| Shower Card | Integrated display controller with maximum resolution of 1920 x 1080 |
| System management | The interface is available in Chinese and supports IPMI 2.0, SNMP, RedFish, KVM Over IP. |
| PCIe Slot | Maximum expansion of 12 PCIe slots (including 2 OCP 3.0 slots) |
| Expansion Device Interface | 4 USB interfaces (2 rear USB 3.0, 1 front USB 3.0+1 and USB 2.0), 1 internal USB 3.0 interface; 1 Type-C maintenance interface; 2 VGA interfaces (front end 1 and back end 1); 1 Type-C serial ports; 1 IPMI GE management interface |
| Power supply specifications | 2 A CRPS Standard Power supply (≥ 550W), Supports hot swapping, Supports 1+1 Redundant / Supports Load Balance; Supports Multiple Power input Formula: 110/220VAC / -48VDC, 240HVDC / 336HVDC Power input |
| Environmental requirements | Operating temperature: 5 ℃～ 40 ℃; Storage Temperature: -40 ℃～ 65 ℃; Operating humidity: 8 ％～ 90 ％ RH, Non-condensing; Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing; Altitude Height: ≤ 3000 Rice. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
