Key Architecture Highlights

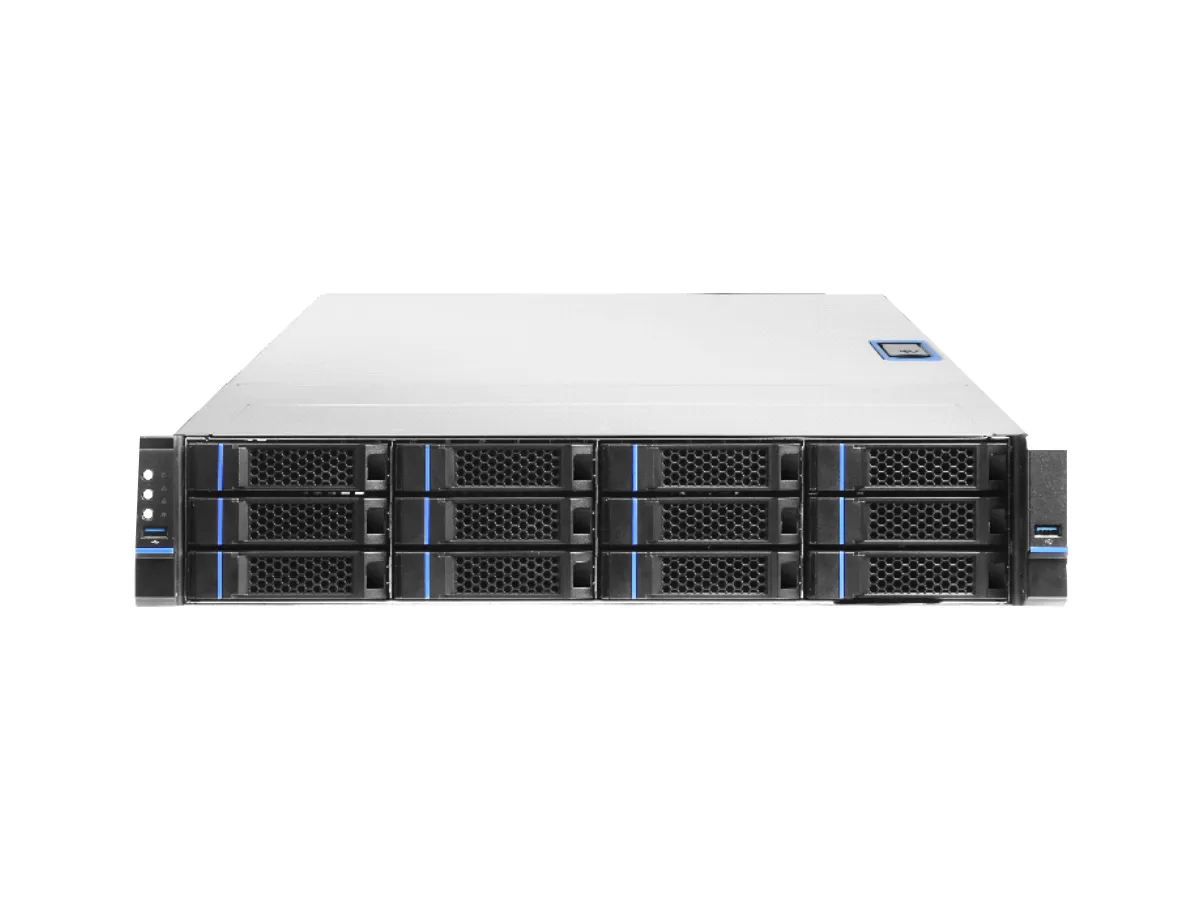

- Whole machine form: Standard 19 inches 2U airframe
- Supported processors: The hydrogen cloud S5000C/24 has 32 nuclei, numbering 2
- Memory support: Support for 8 DDR5 memory slots
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Whole machine form | Standard 19 inches 2U airframe |
|---|---|
| Supported processors | The hydrogen cloud S5000C/24 has 32 nuclei, numbering 2 |
| Memory support | Support for 8 DDR5 memory slots |
| Drive bays | Prefix 8 units 3. 5 Inches SATA / SAS Hot-swappable Drive bits; Prefix 12 units 3.5 Inches SATA / SAS Hot-swappable Drive bits; Prefix 24 units 2. 5 Inches NVMe / SATA / SAS Hot-swappable Drive bits; Back 2 units Hot-swappable 2. 5 Inches NVMe / SATA / SAS System Drive bays (Optional) |
| RAID Features | Support for expansion RAID cards and multiple levels of RAID protection |
| Network Controller | The board has 4 ports Gigabit network controller |
| External And Board Interface | Prefix 2 units USB3. 0 Interface, 1 units VGA Interface; Back 1 units VGA Interface, 1 Ethernet for remote management Ports, 1 units DB9 Thread Ports, 4 units USB3. 0 Interface, 4 units Gigabit Ethernet Ports; Board 5 units PCIE5. 0 x16 Slot, 4 units SATA3. 0 Interface, 1 The M. 2 2280 Interface, 1 A Mini. PCIE Interface, 4 units MCIO Interface (PCIE 5. 0 X8) |
| Power supply specifications | Standard 800W 1+1 redundant power supply |
| Server management | Board SODIMM Slot, Expansion BMC Management module, External Provides 1 Ethernet for remote management Ports, Supports KVM Over IP / Remote Switches / Status Monitor Including Features |
| Solid | The national autonomously controlled security BIOS/BMC firmware |
| Operating systems | Support for server operating systems such as Galaxy Note, UOS and others |
| Operating environment | The operating temperature is 0°C to 40°C; non-operating temperature: -40°C to 60°C; operating humidity: 10% and 90%; non-operating humidity: 5% and 95% (non-corrosive) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
