ZTE R5310 G3 manufacturer model reference Figure 1

R5310 G3ZTE

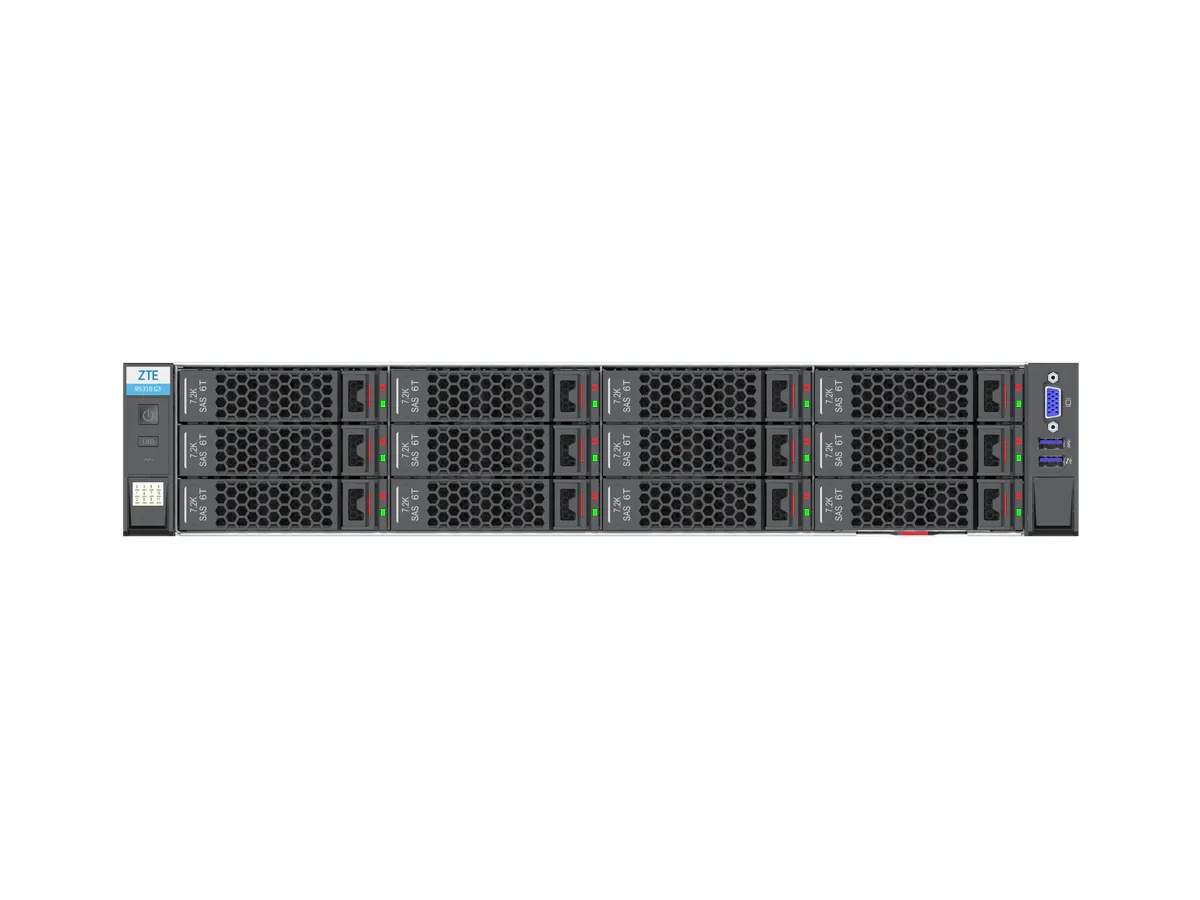

ZTE R5310 G3 Rack server

Model: R5310 G3
Product series: G3

Also known as: ZTE R5310 G3

ZTE R5310 G3 is a rack server in the G3 series. Applications include enterprise computing and virtualization and cloud computing. Key specifications are listed below.

Key Architecture Highlights

Chassis form factor: 2U
Supported processors: Support for customized asynchronous processors in high-performance areas
Memory slots: Support mainstream RDIMM ECC memory slots

Applications

Enterprise computing
Virtualization and cloud computing
Data center

Engineering Parameters

Chassis form factor	2U
Supported processors	Support for customized asynchronous processors in high-performance areas
Memory slots	Support mainstream RDIMM ECC memory slots
Storage controller	Supporting standard and self-developed storage HBA, RAID cards
Drive bays	It offers multiple pre-set drive bays configuration, supports hot swapping, and support for HDD, SSD
PCIe Slot	Expanded Multi-Mainstream PCIe Standard Slots
External interfaces	4 units USB Interface; 2 units VGA Interface (Frontend 1 units, Backend 1 units); 1 units IPMI GE Management interface
Shower Card	Integrated display controller with maximum resolution of 1920 x 1080
System management	WEB Manage the interface in Chinese, supporting IPMI 2.0, SNMP, SOL, RedFish, KVM Over IP
Power supply specifications	2 A CRPS Standard Power supply, Supports hot swapping, Supports 1+1 Redundant Platinum. Power supply, Provides 550W ~ 2000W Multiple Specifications; Supports Multiple Power input Formula: 110/220VAC / -48VDC, 240VDC / 336VDC Power input
Cooling fans	4 plug-in redundant in-flight fans, supporting a dynamic intelligent fan cooling system
Cooling method	Wind and water
Supported operating systems	CGSL, Suse, Redhat, Centos, Silicon, and Red Flag operating systems are also available.
Environmental requirements	The following are the operating temperatures: 5°C and 40°C; storage temperature:-40°C and 65°C; operating humidity: 8% and 90% RH, non-condensing; transportation storage Humidity: 5% and 95% RH, non-condensing; altitude:3000 m
System Dimensions	19 inches frame, 432mm x 87.6mm x 780mm ((width x high x deep) with no side-ear or guide

Warranty

Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
