Key Architecture Highlights

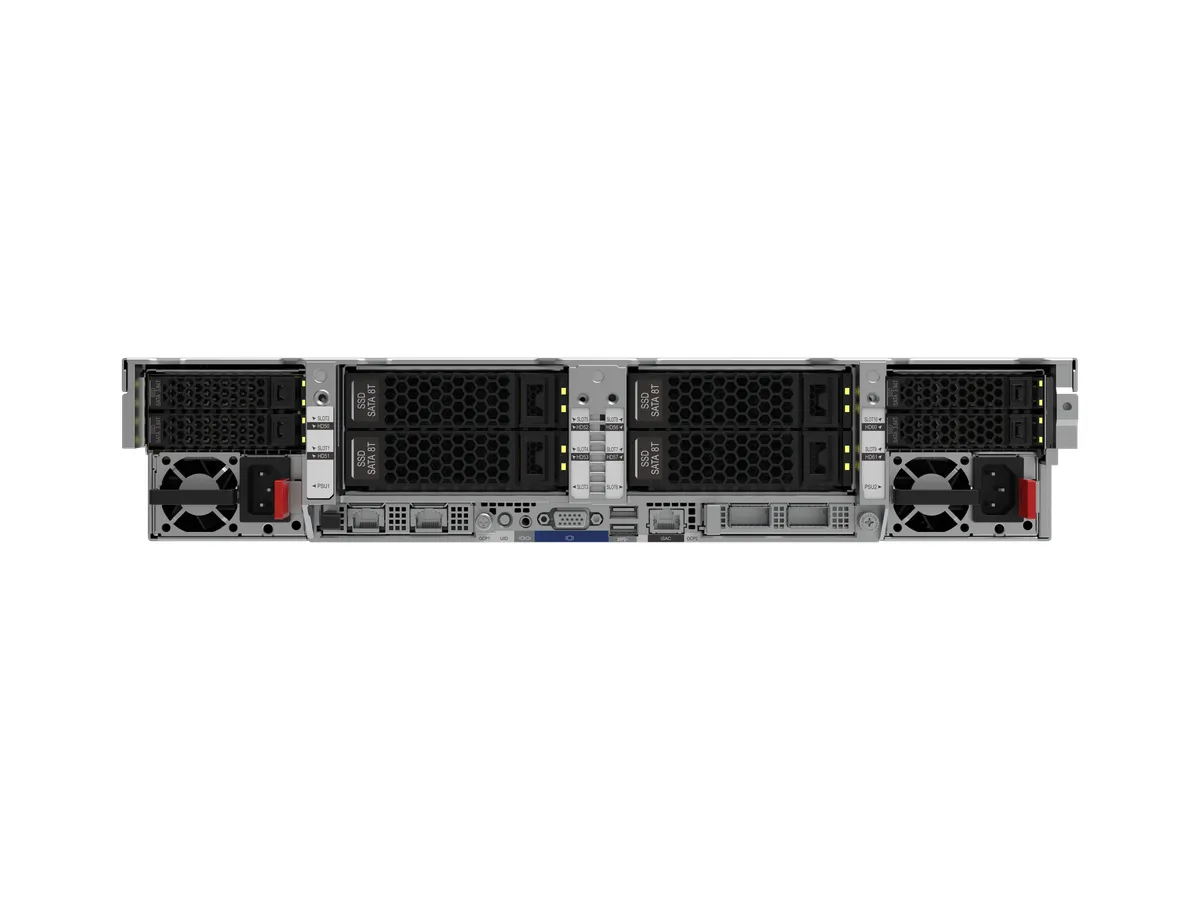

- Chassis form factor: 2U rack server
- Supported processors: Supports 1/2 Processors Intel ® Xeon ® Fourth Generation / Fifth generation. Expansion Processor (Eagle Stream)
- Chipset: Intel C741
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U rack server |
|---|---|
| Supported processors | Supports 1/2 Processors Intel ® Xeon ® Fourth Generation / Fifth generation. Expansion Processor (Eagle Stream) |
| Chipset | Intel C741 |
| Memory support | It supports 32 DDR5 memory slots and a top speed of 5600MT/s. |
| Drive bays | Supports up to 45 2.5 ton drive bays or 20 3.5 ton drive bays + 4 2.5 ton drive bays; supports up to 34 NVMe SSDs; supports up to 40 E1.S, supports up to 40 E3.S. |
| Storage controller | Support for RAID 0/1/5/6/10/50/60 and other support for power outage protection |
| Network interfaces | Provides 2 units OCP3.0 Interface, Supports PCIe 5.0 x8, Optional Expansion Yes. 2 units PCIe 5.0 x16, Optional Supports MultiHost |
| PCIe Expansion slots | Maximum support for 20 PCIe expansion slots: 2 OCP dedicated slots, 18 standard PCIe slots |
| External interfaces | 5 units USB Interface (2 A rear. USB3.0, 1 Front USB3.0, 1 Internal USB2.0, 1 Front USB2.0); 2 units VGA Interface (Frontend 1 units, Backend 1 units); 1 Threads Ports |
| Management interface | 1 Independent GE management network Ports |
| Power supply specifications | Supports 1+1 Hot-swappable Redundant power supply; Optional 550W/800W/1200W/1600W/2000W/2700W, Supports Height Platinum / titanium. Power supply; Supports 110V/220V Communications / 240V/336V Height Press the flow. / -48V Straightstream |
| Cooling fans | 4 sets of efficient fans, N+1 redundant, cooling system with intelligent regulation |
| Supported operating systems | It is compatible with the current mainstream server operating systems: Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Vmware ESXi, CGSL and others. |
| Cooling method | Wind and water |
| Chassis dimensions |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
