Key Architecture Highlights

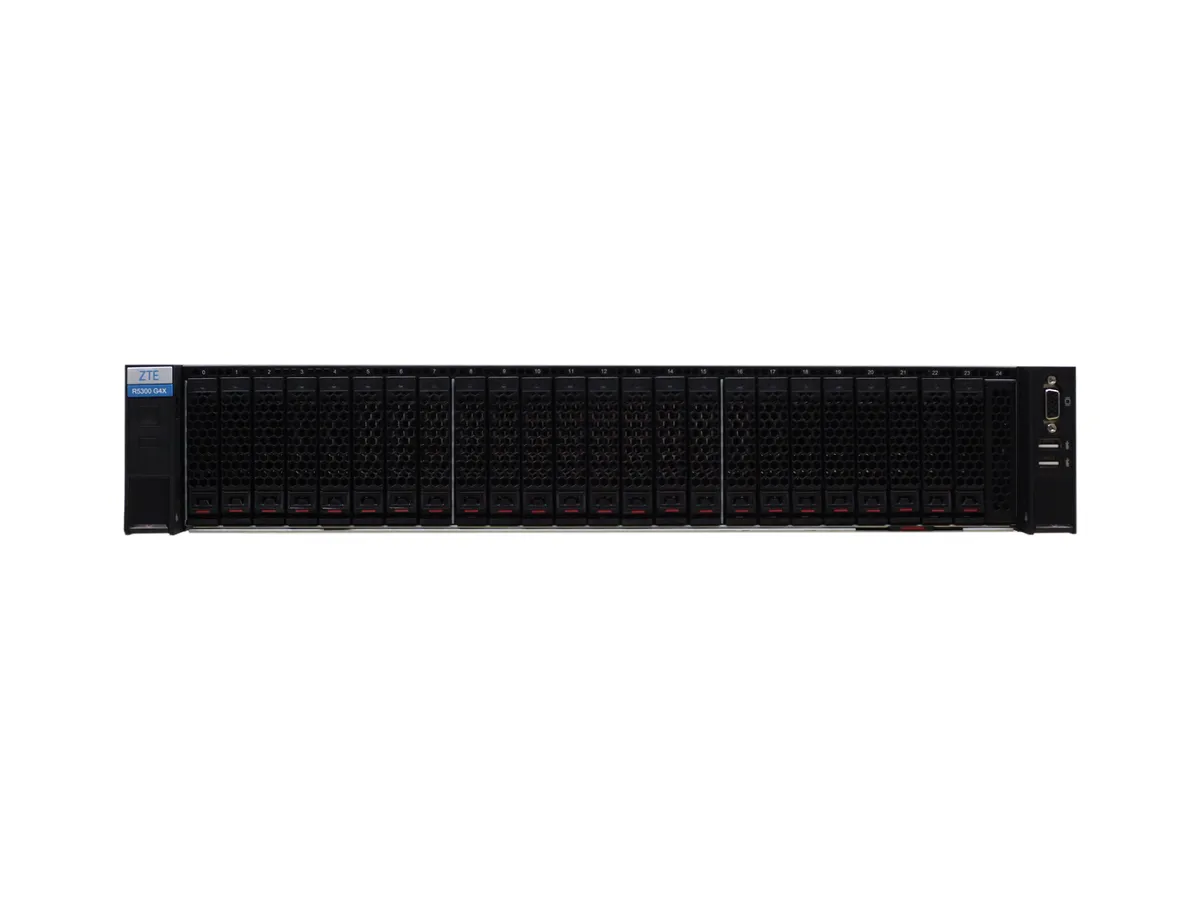

- Form: 2U rack server
- Supported processors: 2 road third generation Intel Xeon expansion processor
- Chipset: Intel C621A
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Form | 2U rack server |
|---|---|
| Supported processors | 2 road third generation Intel Xeon expansion processor |
| Chipset | Intel C621A |
| Memory support | Supports 32 units DDR4 Memory slots, Up to Rate 3200MT/s. Up to Supports 16 Gintel's proud and persistent. Memory |
| Drive types | (1) Prefix Storage Drive: 8x2.5 Yes. Drive bays, Supports SAS / SATA, Optional Supports NVMe SSD, Supports hot swapping; 16x2.5 Yes. Drive bays, Supports SAS / SATA, Optional Supports NVMe SSD, Supports hot swapping; 24x2.5 Yes. Drive bays, Supports SAS / SATA, Optional Supports NVMe SSD, Supports hot swapping; 25x2.5 Yes. Drive bays, Supports SAS / SATA, of which 8 units Optional Supports NVMe SSD, Supports hot swapping; 12x3.5 Yes. Drive bays, Supports SAS / SATA, Optional Supports NVMe SSD, Supports hot swapping; (2) Center Storage Drive: Optional 8x2.5 Yes. Drive bays, Supports SAS / SATA, Optional 4x3.5 Yes. Drive bays, Supports SAS / SATA; Optional 2 units M.2 Drive Slots bits; (3) Back Storage Drive: Optional 4x2.5 Yes. Drive bays, Supports SAS / SATA, Optional Supports NVMe SSD, Supports hot swapping; Optional 4x3.5 Yes. / 2.5 Yes. Drive bays, Supports SAS / SATA, Supports hot swapping. |
| Drive Controller | Support RAID 0/1/5/6/10/50/60 and other support for power-off protection |
| Network interfaces | 2 units GE Copper port, Supports NCSI |
| PCIe Slots bits | Supports up to 14 PCIe 4.0 expansion slots: 1 OCP 3.0 slot, 1 board-loaded RAID card slot, 10 backboard standard slots and 2 GPU slots. |
| External interfaces | 6 units USB Interface (4 units USB3.0, 2 units USB2.0), 2 units VGA Interface (Frontend 1 units, Backend 1 units), 1 Threads Ports |
| Management interface | 1 Independent GE management network Ports |
| GPU Card | Supports up to 4 pairs of single-width GPUs or 12 pairs of single-width GPUs |
| Power supply specifications | Supports 1+1 Hot-swappable Redundant power supply, Optional 550W/800W/1200W/1600W/2000W/2700 Height Effect Power supply, Efficiency Up to Koda. 96%, Supports 110V/220V Communications / 240V/336V Height Press the flow. / -48V Straightstream |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
