Key Architecture Highlights

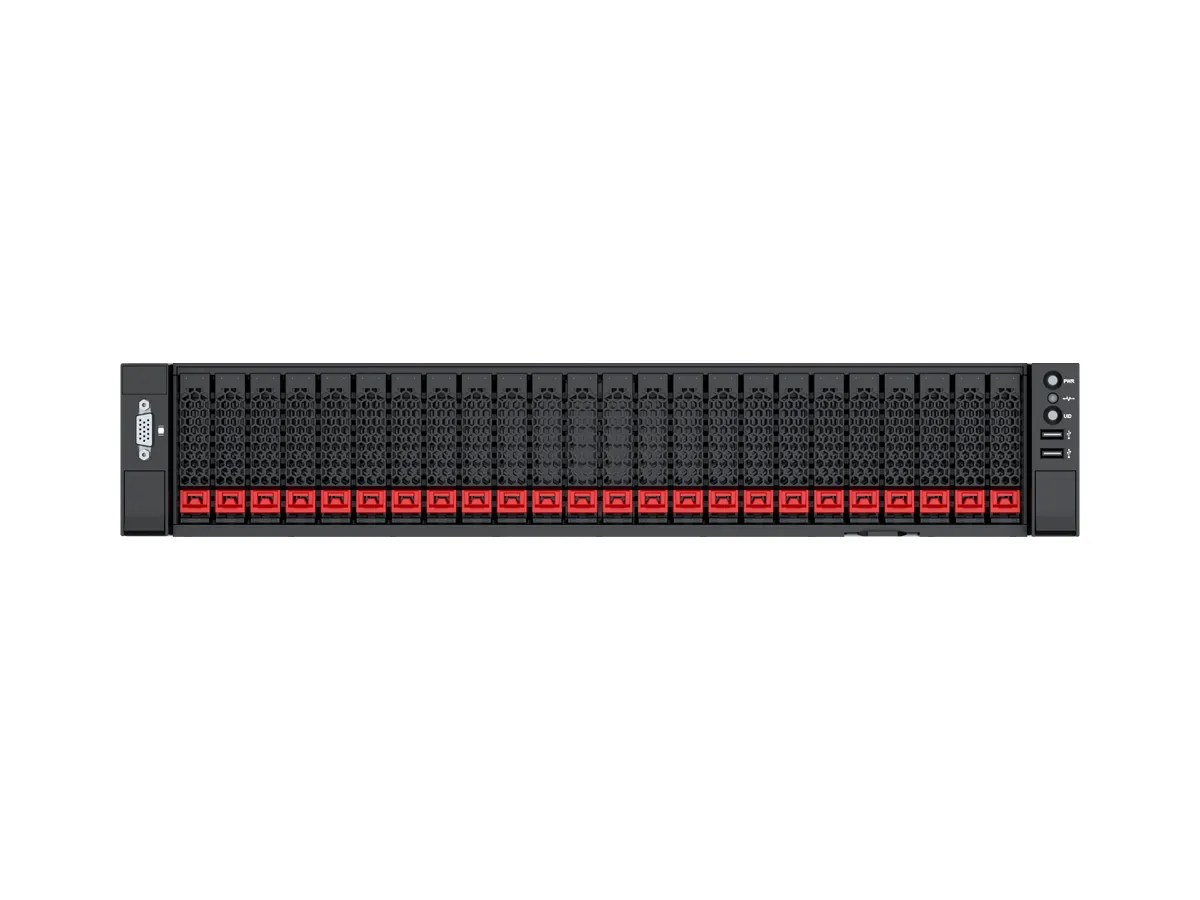

- Chassis form factor: 2U
- Processor: Supports 2 Sockets First / Second generation Intel. ® Xeon ® Yeah. Expansion Processor
- Chipset: Lewisburg C622
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U |
|---|---|
| Processor | Supports 2 Sockets First / Second generation Intel. ® Xeon ® Yeah. Expansion Processor |
| Chipset | Lewisburg C622 |
| Memory | Support for 24 DDR4 memory slots, up to 2933MT/s of memory speed, support for 12 DCPMM memory and up to 2666MT/s. |
| Drive bays | Supports 16 Blocks 3.5" Hot-swappable Drive + 2 Blocks 2.5 '' Hot-swappable Drive, In the meantime, Provides 2 units Standard PCI-E Slots bits (1 PCI-E X16, 1 PCI-E X8), Supports 2 Blocks M.2 SATA SSD, Supports Hard RATD1, Supports hot swapping |
| Storage controller | Support standard and self-developed HBA, RAID cards, support SAS3.0/SATA3.0/PCIe 3.0 |
| Network | Integrated 2 10GE optical ports + 2 GE copper ports support NCSI functionality integrated 1 IPMI to manage Gigabit Ethernet network interface support open OCP flexible network adapter expansion |
| PCIe Slot | Support 10 PCIe 3.0 slots (with 2 dedicated slots) and support for 2 dual-width GPUs |
| External interfaces | 7 USB interface (4 backward USB 3.0,1 internal USB 3.0, 2 frontward USB 2.0), 1 serial ports, 2 VGA interface (front end 1, rear end 1) and 1 independent networking ports |
| Shower Card | GPU memory 32 MB, supporting a maximum resolution of 1920x1200 |
| Power supply | Platinum. Power supply, Provides 550W / 800W And 1200W Three Models, 1+1 Hot-swappable Redundant power supply Supports 110VAC / 220VAC, -48VDC / 240V HVDC / 336V HVDC Power input |
| Fan | 6 hot-plug fans, support N+1 redundant and support dynamic smart tuning |
| Supported operating systems | Compatible with current mainstream server operating systems, including but not limited to: Windows Server 2012 (x64), Windows Server 2012 R2 (x64), Windows Server 2016 (x64), RedHat Linux Enterprise 7.3, SUSE Linux Enterprise Server 13 (x64), VMware ESXi 6.0 Details Reference Operating Systems Compatibility list |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
