Key Architecture Highlights

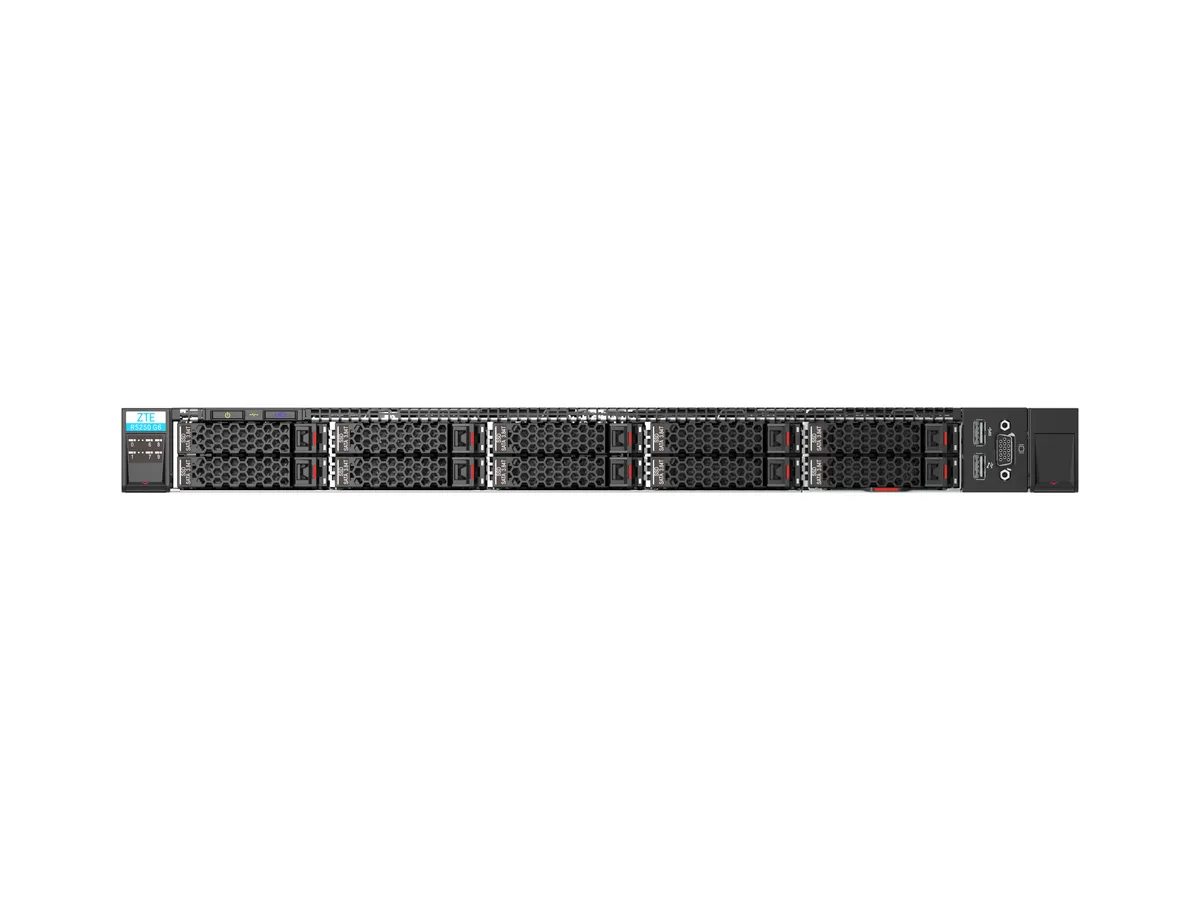

- Chassis form factor: 1U rack server
- Supported processors: Support 1/2 AMD EPYC 9005 series processors, each supporting up to 192 cores and supporting superstrands
- Memory support: 24 DDR5 memory slots with a top speed of 6400MT/s
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 1U rack server |
|---|---|
| Supported processors | Support 1/2 AMD EPYC 9005 series processors, each supporting up to 192 cores and supporting superstrands |
| Memory support | 24 DDR5 memory slots with a top speed of 6400MT/s |
| Interconnect bus | 4 channel xGMI3 high-speed connection, transmission speeds up to 32GT/s |
| Storage controller | Support for RAID 0/1/5/6/10/50/60 and other support for power outage protection |
| Local storage | Background storage drive: 10x2.5 ton drive bays, supporting SAS/SATA, optional support for NVMe SSD, supports hot swapping; background storage drive (optional): 2x2.5 ton drive bays, supporting SAS/SATA, optional support for NVMe SSD, supports hot swapping |
| Network interfaces | Supports 2 units OCP3.0 Interface |
| PCIe Slot | Support for maximum 5 PCIe slots: maximum expansion 3 PCIe standard slots, 2 OCP 3.0 dedicated slots |
| External interfaces | 4 USB interfaces (2 USB 3.0 on the back, 1 USB 3.0 on the front and 1 USB 2.0 on the front); 2 VGA interfaces (1 at the front, 1 at the rear); 1 serial port |
| Management interface | 1 Independent GE management network Ports |
| Power supply specifications | Supports 1+1 Hot-swappable Redundant power supply; Optional 550W/800W/1200W/1600W/2000W/2700W Height Platinum / titanium. Power supply; Supports 110V/220V Communications / 240V/336V Height Press the flow. / -48V Straightstream |
| Cooling fans | 8 efficient fans, N+1 redundant and intelligent cooling system |
| Environmental requirements | Operating temperature: + 5 ºC～ + 40 ºC (Operating temperature Different. Configuration Impact, For further information, please refer to the technical document description); Storage temperature: -40 ºC～ + 65 ºC; Operating humidity: 8 ％～ 90 ％ RH, Non-condensing; Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing; Altitude Height: ≤ 3000 m. Height Out 900 At m., Every litre above sea level Height 300 m Operating temperature Lower 1 ℃. 3000 Over m Not supported Configuration Mechanical Drive |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
