Key Architecture Highlights

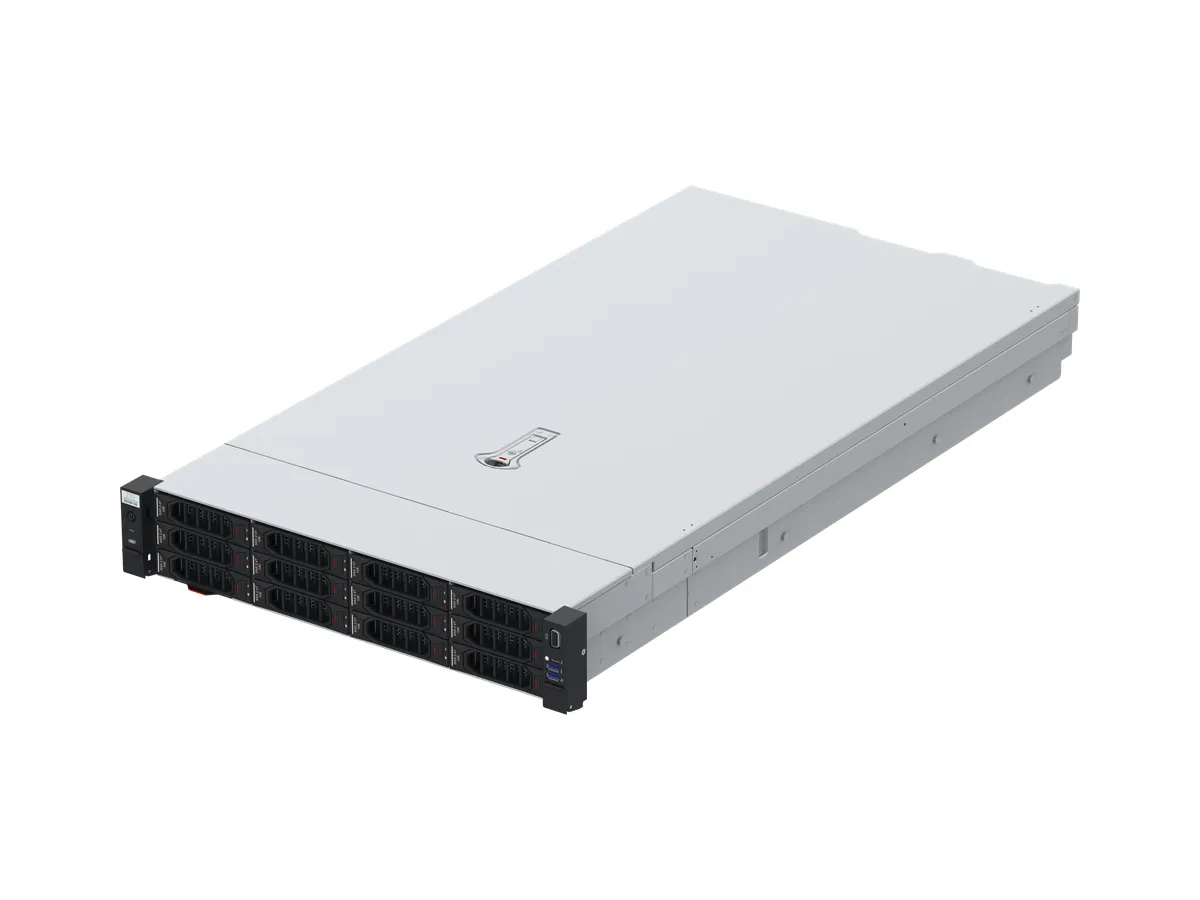

- Chassis form factor: 2U rack server
- Supported processors: It supports 1 AMD EPYC 9004/9005 series processor, each supporting up to 192 cores and superstrands.
- Memory support: 12 DDR5 memory slots with a top speed of 6400MT/s
Applications
- Enterprise computing
- Virtualization and cloud computing
- Data center
Engineering Parameters
| Chassis form factor | 2U rack server |
|---|---|
| Supported processors | It supports 1 AMD EPYC 9004/9005 series processor, each supporting up to 192 cores and superstrands. |
| Memory support | 12 DDR5 memory slots with a top speed of 6400MT/s |
| Storage controller | Support for RAID 0/1/5/6/10/50/60 and other support for power outage protection |
| Local storage | Supports up to 35 2.5 ton drive bays or 16 3.5 ton drive bays + 4 2.5 ton drive bays; supports up to 32 U.2/E1.S/E3.S |
| Shower Card | Integrated graphics card, supporting the PCIe standard graphics card |
| System management | WEB Manage the interface and support IPMI 2.0, SNMP, RedFish, KVM Over IP |
| PCIe Expansion slots | Up to Supports 16 units PCIe Expansion Slot (Ham 1 units OCP 3.0 Slot) |
| External interfaces | The following are the USB interfaces: 5 (2 rear USB 3.0,1 front USB 3.0,1 internal USB 3.0, 1 front USB 2.0); 2 VGA interfaces (front 1 and back 1); 1 serial ports (TYPE-C); 1 IPMI GE management interfaces. |
| Power supply specifications | 2 A CRPS Standard Power supply, Supports hot swapping and 1+1 Redundant; Optional 800W/1300W/1600W/2000W/2700W/3200W, Supports Platinum. / titanium. Power supply; Supports 110 Ｖ / 220V Communications / 240V/336V Height Press the flow. / -48V Straightstream |
| Environmental requirements | Operating temperature: 5 ℃～ 45 ℃ (Operating temperature Different. Configuration Impact, For further information, please refer to the technical document description); Storage Temperature: -40 ℃～ 65 ℃; Operating humidity: 8 ％～ 90 ％ RH, Non-condensing; Transport Storage Humidity: 5 ％～ 95 ％ RH, Non-condensing; Altitude Height: ≤ 3000 m. Height Out 900 At m., Every litre above sea level Height 300 m Operating temperature Lower 1 ℃. 3000 Over m Not supported Configuration Mechanical Drive |
| System Dimensions | 436mm x 87mm x 830mm (Width x Height x Depth), Without side ear / Track; Standard 19 Inches Airframes (Airframes Depth > = 1.2 Rice.) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
