Key Architecture Highlights
- Supported processors: High-performance multi-core processor that is nationalised
- Cache: 2T
- RAID Supports: 0, 1, 3, 5, 6, 10, 50, EEP, RAID-TR
Applications
- Enterprise data storage
- Virtualized storage
- Data protection
Engineering Parameters
| Supported processors | High-performance multi-core processor that is nationalised |
|---|---|
| Cache | 2T |
| Drive Specifications | 2.5” 10K rpm SAS HDD: 600GB, 900GB, 1.2TB, 1.8TB, 2.4TB; 3.5” 7.2 K rpm NLSAS HDD: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB; 2.5” SATA SSD: 960GB, 1.92TB, 3.84TB, 7.68TB, 15.36TB; 2.5” SAS SSD: 960GB, 1.92TB, 3.84TB, 7.68TB, 15.36TB |
| RAID Supports | 0, 1, 3, 5, 6, 10, 50, EEP, RAID-TR |
| Interface | The front end interface is 64 1Gb ETH, 64 10Gb ETH, 64 16Gb FC, 64 32Gb FC, 32 25Gb ETH; the rear end interface is 28 48Gb HD-miniSAS. |
| Other Software Features | Quick pictures, roll copies (local, remote replication), roll migration, double-drive, storage, virtualization, automatically streamlined, automatically graded, SSD Cache, roll cloning, disk roaming, synchronous/asymmetrical remote sensing, load balance, host multi-paths, local reconstruction, drive security analysis, disc intelligence dormancy, data destruction and more. |

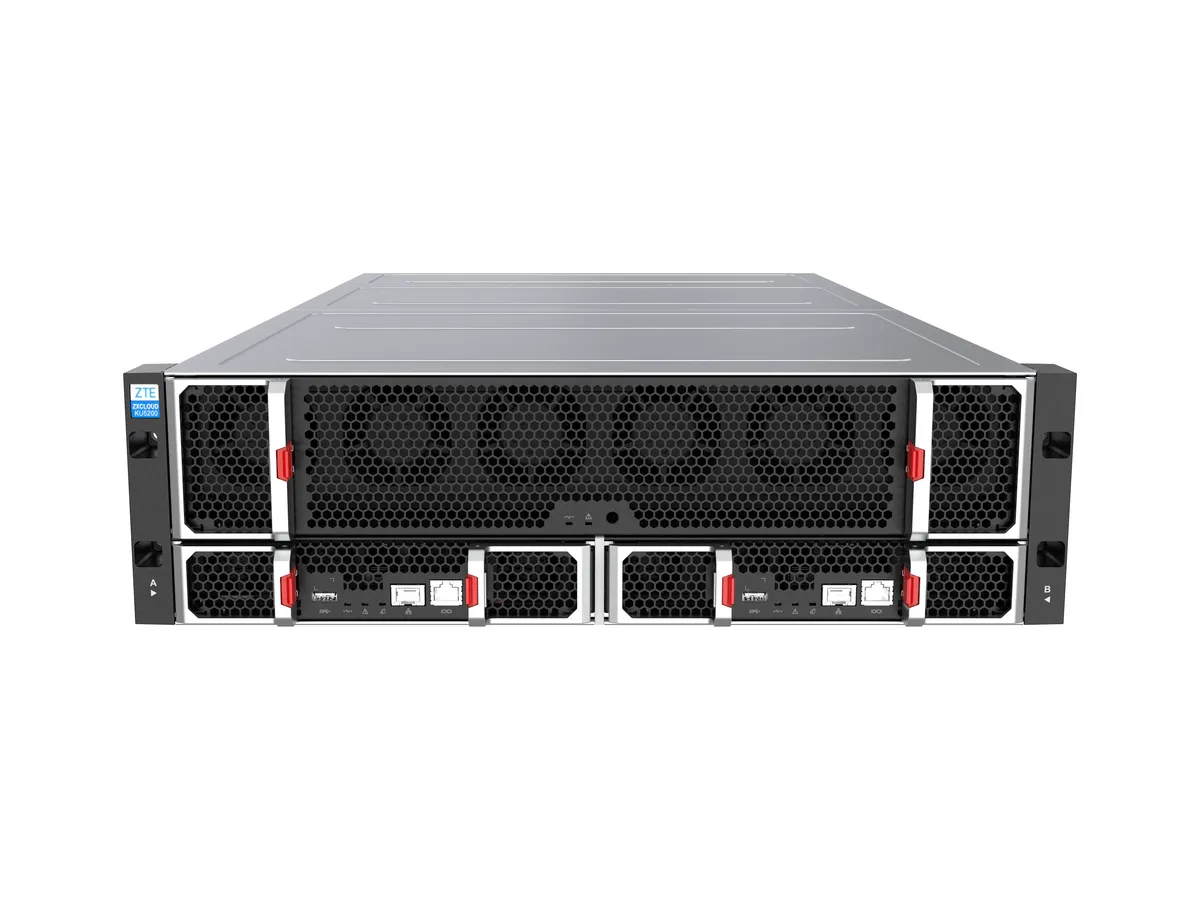

| Chassis dimensions | KU5230 V2 (3U Control Box): 482.6 (W) x 132.5 (H) x 795 (D) (mm); KJ2024 V2 (2U Drive Box): 482.6 (W) x 86.1 (H) x 503 (D) (mm); KJ4024 (4U Drive Box): 482.6 (W) x 176.2 (H) x 590 (D) (mm) |
| Weight | KU5230 V2 (3U Control Box): 48.8kg ± 5%; KJ2024 V2 (2U Drive Box): 18.2kg ± 5%; KJ4024 (4U Drive Box): 34.7kg ± 5%; Notes: None Drive |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
