Key Architecture Highlights
- Chassis form factor: 3U42 drive bays
- Supported processors: High-performance multi-core processor
- Maximum Cache: 768GB
Applications
- Enterprise data storage
- Virtualized storage
- Data protection
Engineering Parameters
| Chassis form factor | 3U42 drive bays |
|---|---|
| Supported processors | High-performance multi-core processor |
| Maximum Cache | 768GB |
| Interface | The front end interface: 24 1Gb ETH, 24 10Gb ETH, 24 16Gb FC, 24 32Gb FC, 12 25Gb ETH; the rear end interface: 16 48Gb HD-miniSAS |
| Drive types | SAS SSD, SATA SSD, SAS HDD, NL-SAS HDD |
| RAID Supports | 0, 1, 3, 5, 6, 10, 50, EEP, RAID-TR |
| Software Features | Quick-shot, roll copy (local, remote replication), roll migration, double-drive, storage, gateway, automatically streamlined, automatically graded, SSD Cache, roll clone, disk roaming, synchronous/asynchronous remote viewing, load balancing, host multi-paths, local reconstruction, drive security analysis, disc intelligence dormancy, data destruction and so on. |

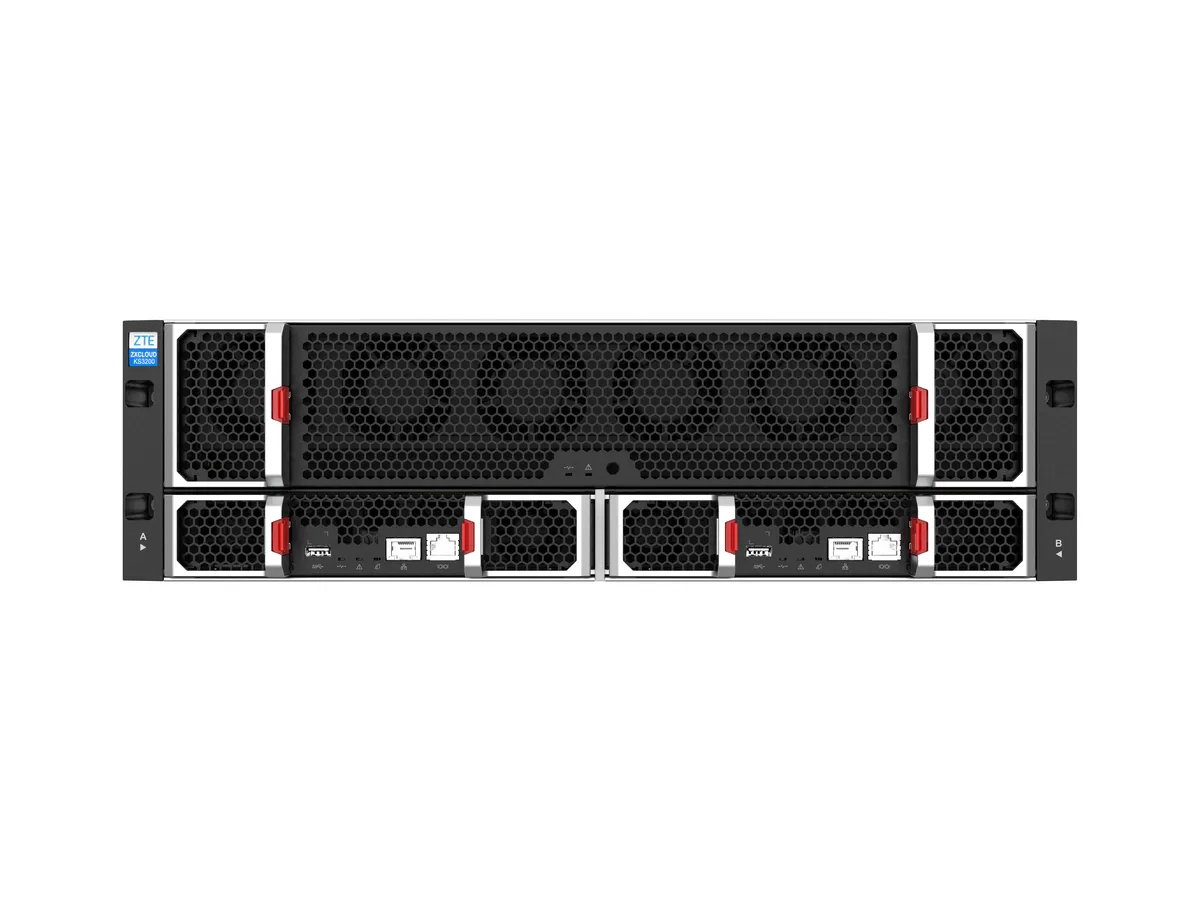

| Chassis dimensions | The KS3200 V2 ((3U control box): 482.6 ((W) x 132.5 ((H) x 795 ((D) mm); KJ2024 V2 ((2U drive box): 482.6 (W) x 86.1 ((H) x 503 ((D) mm); KJ4024 ((4U drive box): 482.6 (W) x 176.2 ((H) x 590 ((D) mm)) |
| Weight | KS3200 V2 ((3U control box):46kg±5%; KJ2024 V2 ((2U drive box):18.2kg±5%; KJ4024(4U drive box):34.7kg±5%; Note: No drive |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
