Key Architecture Highlights
- Supported processors: Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor
- Cores ／ Power consumption Supports: Core/thread and cache upper limit: up to 64C/128T; up to 320MB of cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind-cooled)
- Memory slots / capacity: DIMM slot number: 32 supports up to memory: up to 8TB (pictured below)
Applications
- AI/Deep learning and training
- Industrial automation
- Health and health
- Conversational AI
- Business intelligence and analytics
- Drug discovery
- Climate and weather models
- Financial and economic analysis
- High-performance computing (HPC)
Engineering Parameters
| Supported processors | Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor |
|---|---|
| Cores ／ Power consumption Supports | Core/thread and cache upper limit: up to 64C/128T; up to 320MB of cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind-cooled) |
| Memory slots / capacity | DIMM slot number: 32 supports up to memory: up to 8TB (pictured below) |
| Memory speed | 1DPC: up to 4TB 5600MT/s ECC DDR5 RDIMM 2DPC: up to 8TB 4400MT/s ECC DDR5 RDIMM |
| GPU / accelerator support | 8 onboard GPUs NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) |

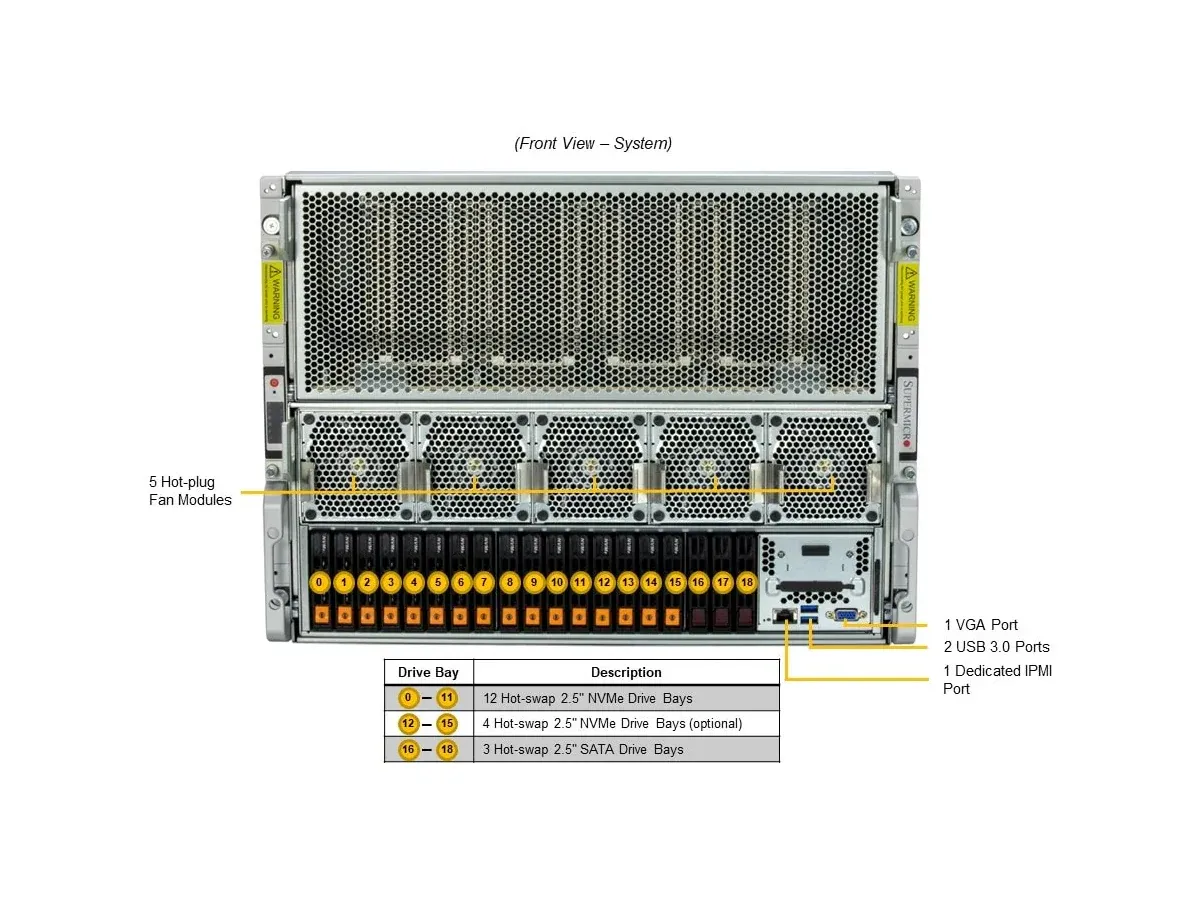

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 15 bays; 12 Prefix Hot-swappable 2.5" NVMe Drive bays, 3 Prefix Hot-swappable 2.5" SATA Drive bays Drive bays (Optional): Optional Option A: Total 19 bays; 12 Prefix Hot-swappable 2.5" NVMe Drive bays, 4 Prefix Hot-swappable 2.5" NVMe * Drive bays, 3 Prefix Hot-swappable 2.5" SATA Drive bays M.2 (Storage Modules Contents): 2 M.2 NVMe Slot (M-key) |

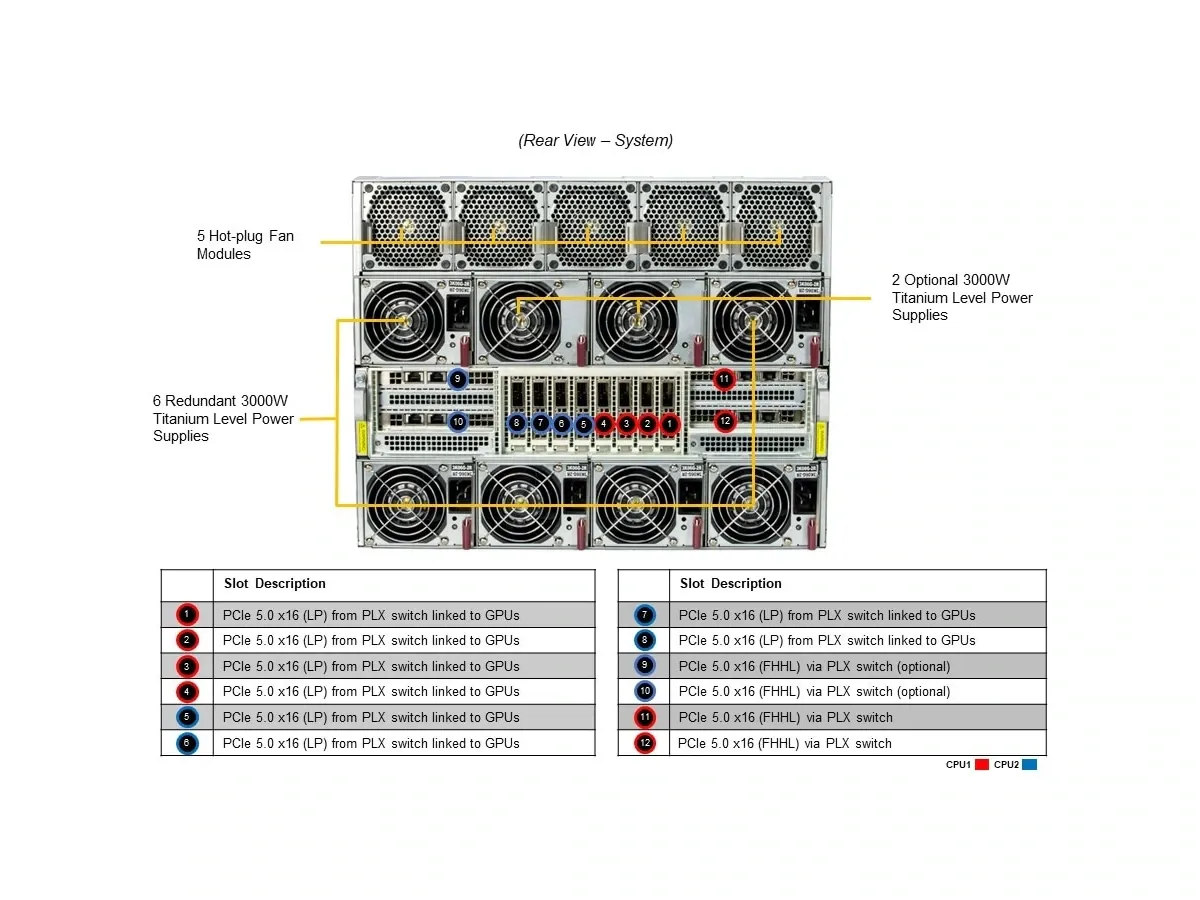

| PCIe Expansion | Manufacturer's default options: 8 PCIe 5.0 x16 half-high slots; 2 PCIe 5.0 x16 full-length high-half slot; option A: 2 PCIe 5.0 x16 full-length high-half slot |
| Network interfaces ／ Expansion | Board Network ／ Network Expansion: 2 SFP + 10GbE, Configure Intel ® X710-BM2 (optional), 2 SFP28 25GbE, Configure Broadcom ® BCM57414 (optional) |
| External interfaces | Video ports: 1 VGA ports |
| Power supply options | 6x 3000W redundant (4 + 2) Platinum grade (96%) power supply module |
| Cooling support | Fan Support Configuration: Up to 10 high-performance fans, equipped with fan rotational speed control |
| Management features | SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
Warranty
Manufacturer's Standard Limited Warranty Policy lists the manufacturer's manual service and parts, respectively; standard tables are for manual 3 years, parts 1 years; only applicable to original purchasers who comply with the policy, third party components according to their respective terms. Actual term limits, regional applicability, extended warranty and service content are based on manufacturer invoices and supply terms, but have not yet confirmed the company's supply services.
