Key Architecture Highlights
- Supported processors: Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor
- Cores ／ Power consumption Supports: Core/thread and cache upper limit: maximum 64C/128T; maximum 112.5MB cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind cooled) * * TDP of wind cooled CPUs over 270W supported only under specific conditions.
- Memory slots / capacity: DIMM slot number: 16 supports up to memory: up to 4TB (pictured below)
Applications
- Web services
- Cloud computing
- Infrastructure is a service (IaaS)
- Data center
- Content distribution network (CDN)
- DNS and gateway services
- The edge node
- Firewall
Engineering Parameters
| Supported processors | Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor |
|---|---|
| Cores ／ Power consumption Supports | Core/thread and cache upper limit: maximum 64C/128T; maximum 112.5MB cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind cooled) * * TDP of wind cooled CPUs over 270W supported only under specific conditions. |
| Memory slots / capacity | DIMM slot number: 16 supports up to memory: up to 4TB (pictured below) |
| Memory speed | 1 DPC: up to 4TB 5600MT/s ECC DDR5 RDIMM |
| GPU / accelerator support | Up to 2 Double Width Or 6 Single Width GPUs NVIDIA PCIe: H100, H100 NVL, A2, L4, L40, L40S, NVIDIA RTX PRO ™ 4000 Blackwell, NVIDIA RTX PRO ™ 4500 Blackwell, NVIDIA RTX PRO ™ 6000 Blackwell Ma x -Q Workstation Edition, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX A4000, RTX A4500, RTX A5000, RTX A6000; Intel PCIe: Intel Data Center GPU Fle x 140, Intel Data Center GPU Fle x 170 |

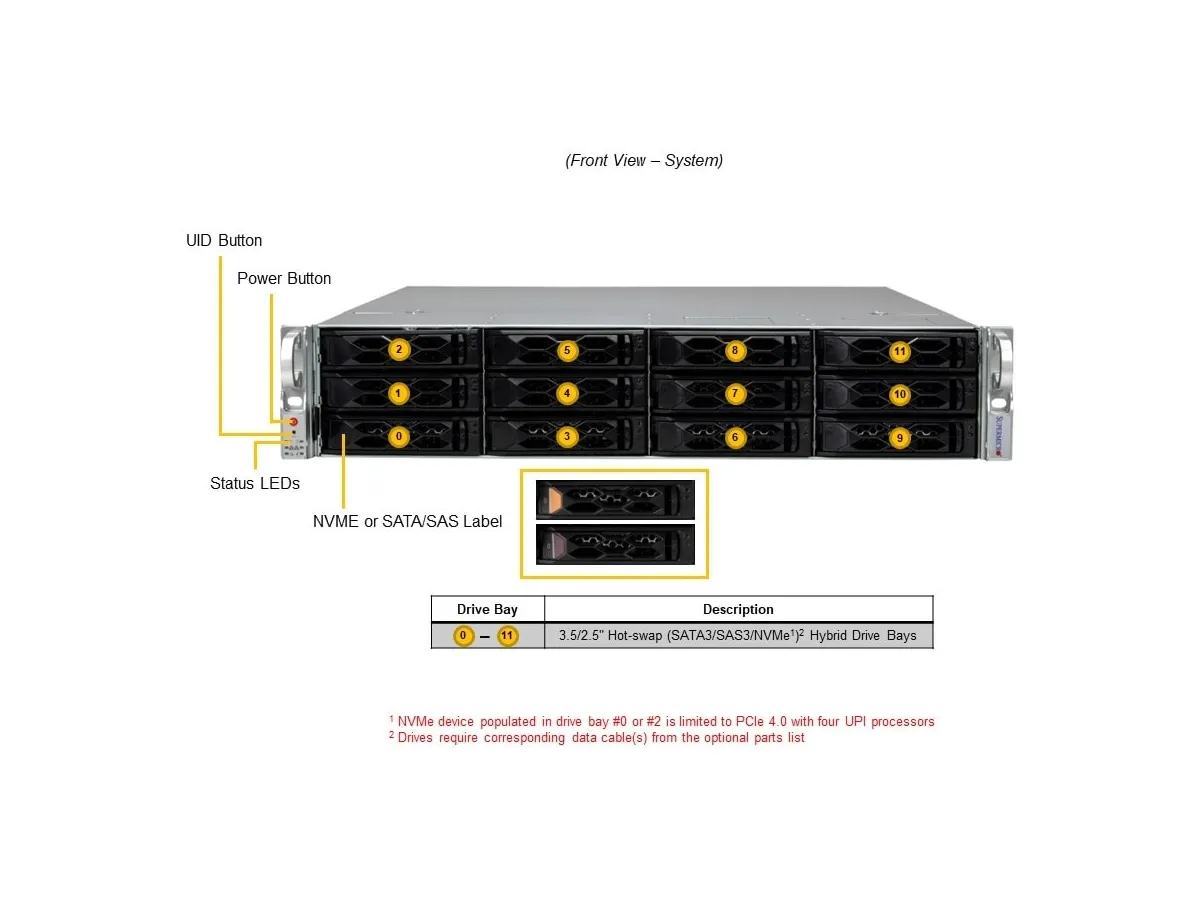

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 12 bays; 12 Prefix Hot-swappable 3.5" NVMe * / SAS * / SATA * Drive bays Drive bays (Optional): Optional Option A: Total 12 bays; 12 Prefix Hot-swappable 2.5" NVMe * / SAS * / SATA * Drive bays M.2 (Storage Modules Contents): 2 M.2 PCIe 5.0 x4 NVMe Slot (M-key 2280 (default); VROC required for RAID) |
| Storage controller ／ RAID | SATA and RAID:SATA (6Gbps); RAID 0/1/5/10 support NVMe and RAID:NVMe; RAID 0/1/5/10 support (requires VROC hardware keys) |

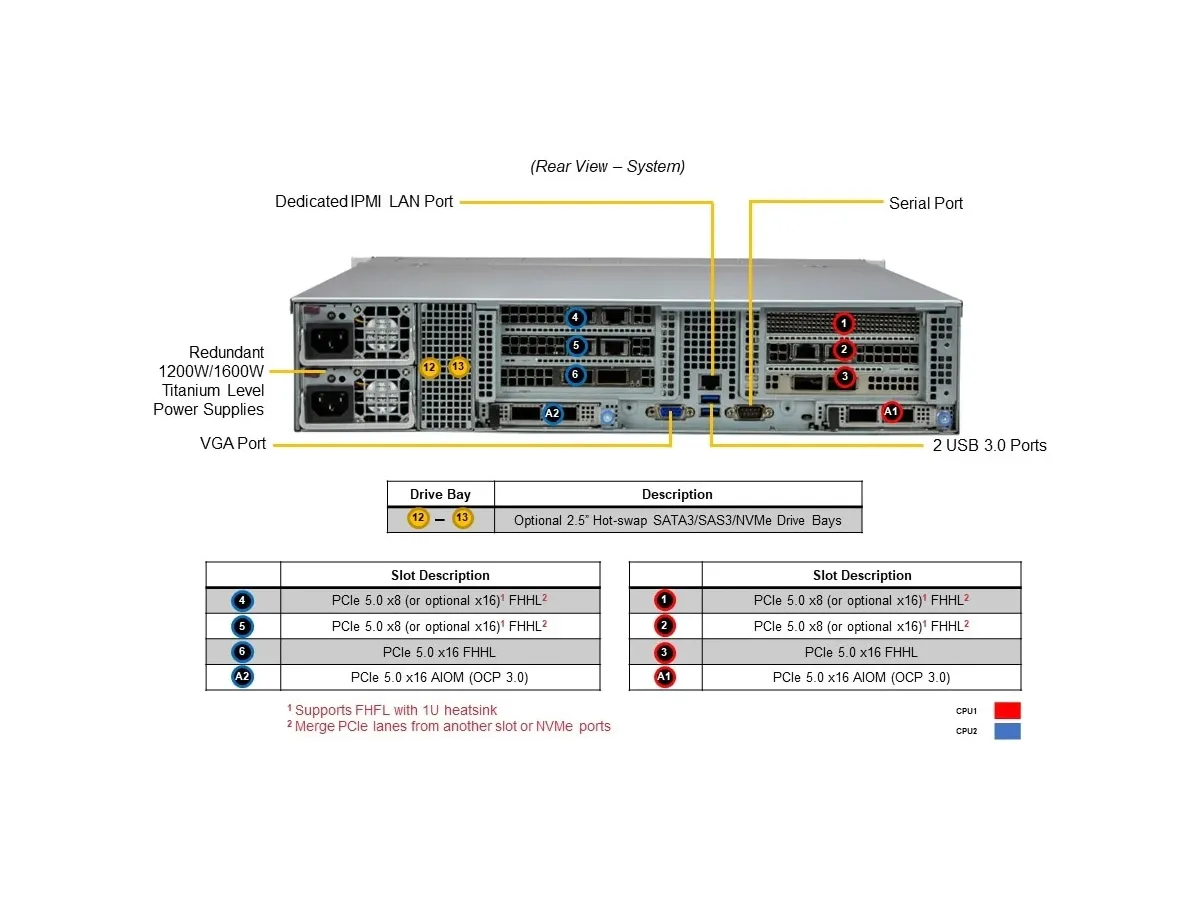

| Network interfaces ／ Expansion | Board-based network / network expansion: through AIOM expansion network ports :1 RJ45 1 GbE Independent BMC management network ports |
| External interfaces | USB ports: 2 USB 3.2 Gen1 Type-A ports (backed up) Video ports: 1 VGA ports |
| Power supply options | 2x 1200W redundant aluminum grade (96%) hot-swappable power supply module |
| Cooling support | Fan Support Configuration: High-performance fan up to 3x8cm, with fan rotational speed control |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
