Key Architecture Highlights
- Supported processors: Supported processor number: 2 platforms supported: support for dual slot E (LGA-4677), 5th generation Intel Xeon/ 4th generation Intel® Xeon® expandable processor, supporting the Intel Xeon CPU Max Series and equipped with high bandwidth memory (HBM)
- Cores ／ Power consumption Supports: Core/thread and cache upper limit: maximum 64C/128T; maximum 320MB cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind cooled) *, support for up to 350W TDP CPUs (liquid cooled), * TDP of wind cooled CPUs over 250W is supported only under specific conditions.
- Memory slots / capacity: DIMM slot number: 32 supports up to memory: up to 8TB (pictured below)
Applications
- Virtualization
- Software defines storage
- AI reasoning and machine learning
- Cloud computing
- Corporate server
Engineering Parameters
| Supported processors | Supported processor number: 2 platforms supported: support for dual slot E (LGA-4677), 5th generation Intel Xeon/ 4th generation Intel® Xeon® expandable processor, supporting the Intel Xeon CPU Max Series and equipped with high bandwidth memory (HBM) |
|---|---|
| Cores ／ Power consumption Supports | Core/thread and cache upper limit: maximum 64C/128T; maximum 320MB cache per CPU TDP with cooling conditions: support for up to 350W TDP CPUs (wind cooled) *, support for up to 350W TDP CPUs (liquid cooled), * TDP of wind cooled CPUs over 250W is supported only under specific conditions. |
| Memory slots / capacity | DIMM slot number: 32 supports up to memory: up to 8TB (pictured below) |
| Memory speed | 1DPC: up to 4TB 5600MT/s ECC DDR5 RDIMM 2DPC: up to 8TB 4400MT/s ECC DDR5 RDIMM |
| GPU / accelerator support | Maximum 1 dual-width or 3 single-width GPUs NVIDIA PCIe: H100, L4, L40S, RTX A4000, RTX A5000 |

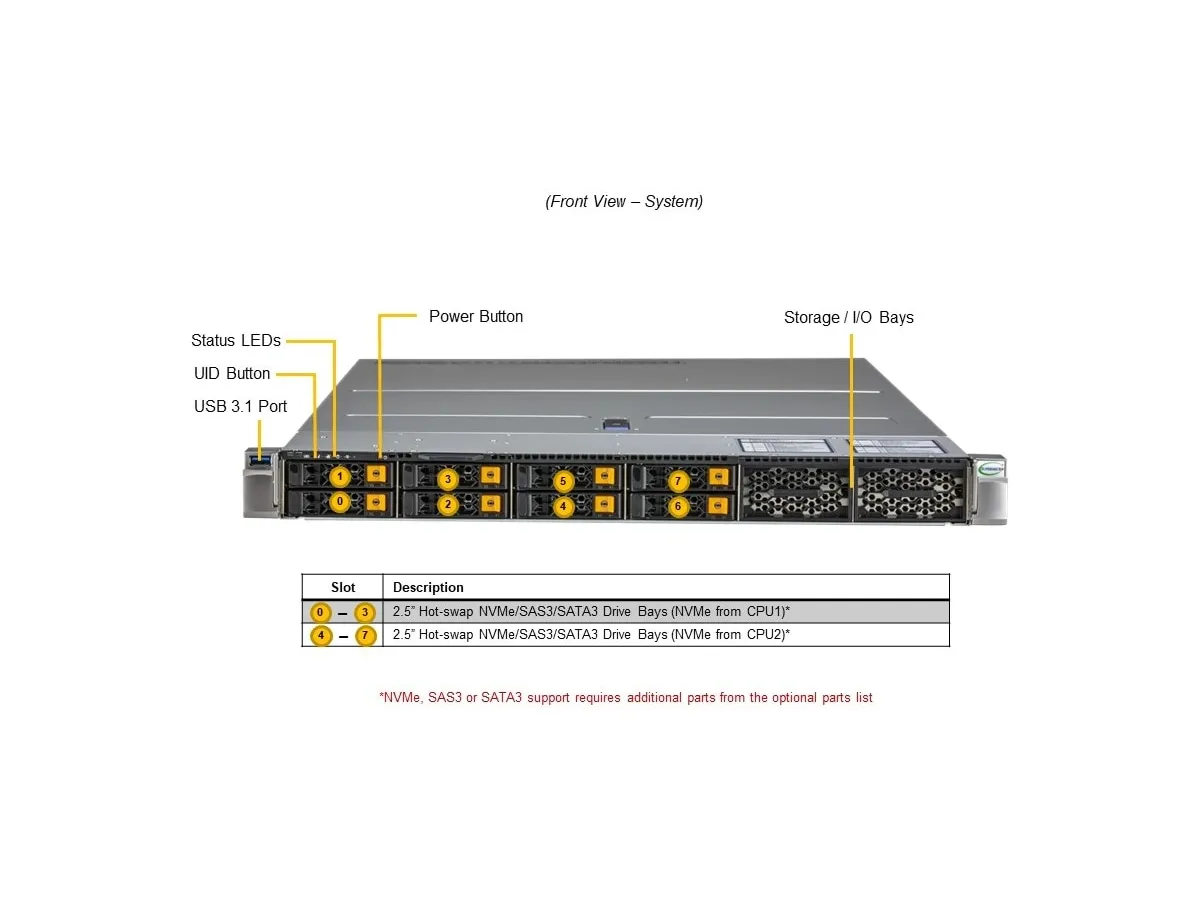

| Drive bays (Major programme) | drive bays (manufacturer default): manufacturer default: 8 bays; 8 front-set hot-swappable 2.5" NVMe*/SAS*/SATA* drive bays drive bays (optional): Optional option A: 12 bays combined; 12 front-set hot-swappable 2.5" NVMe*/SAS*/SATA* drive bays |
| Storage controller ／ RAID | SATA and RAID:SATA (6Gbps); RAID 0/1/5/10 supported NVMe and RAID:NVMe; RAID 0/1/5/10 supported by Intel® VROC RAID key required) |

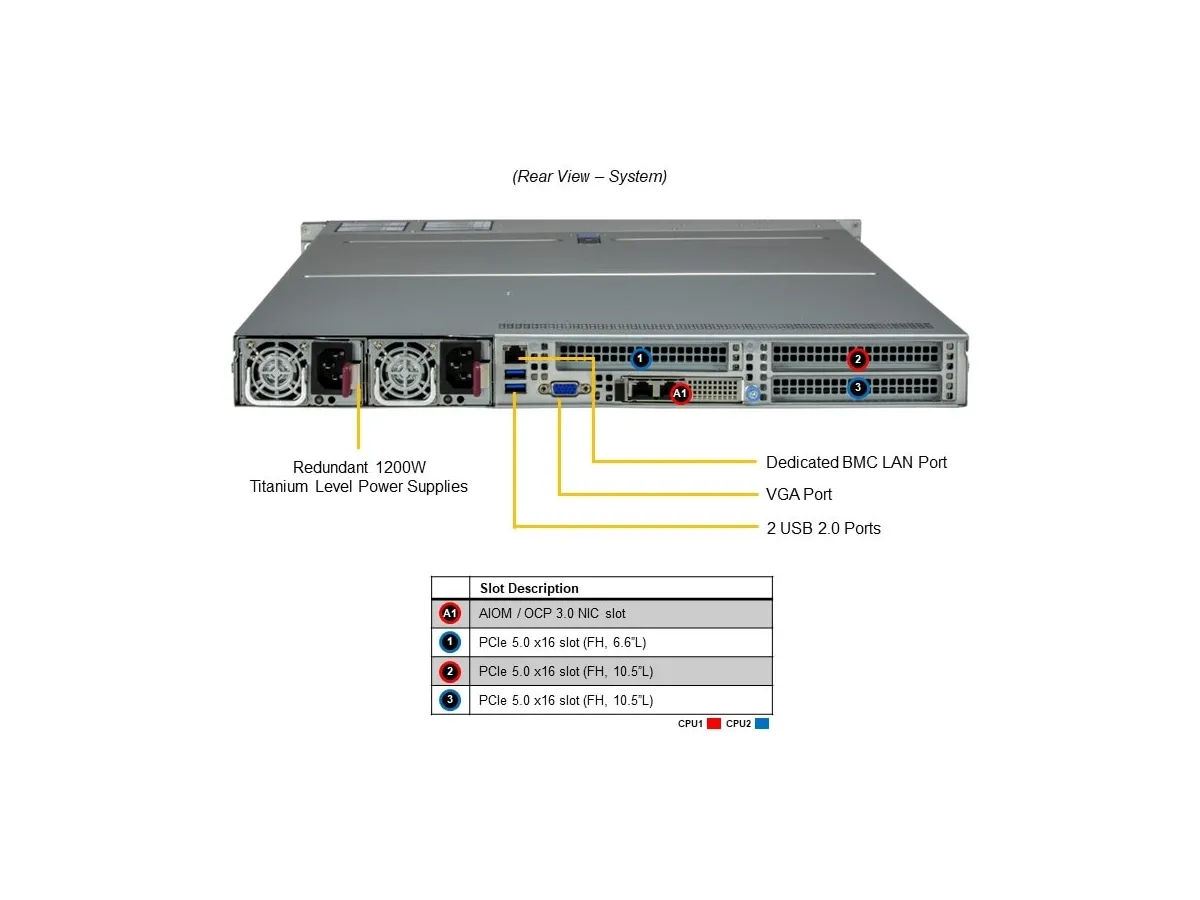

| PCIe Expansion | Manufacturer's default options: 1 PCIe 5.0 x16 full high half length slot, 2 PCIe 5.0 x 16 FH/10.5"L slot, 1 PCIe 5.0 x 16 AIOM slot (OCP 3.0 compatible) |
| Network interfaces ／ Expansion | Board-based network / network expansion: through AIOM expansion network ports :1 RJ45 1 GbE Independent BMC management network ports |
| External interfaces | USB ports: 2 USB 2.0 ports (backed up), 1 USB 3.0 ports (fronted up) Video ports: 1 VGA ports |
| Power supply options | 2x 1200W redundant aluminum grade (96%) hot-swappable power supply module |
| Cooling support | Fan Support configuration: up to 8 counter-rotating 40x40x56mm fan Liquid cooling options: Direct to Chip (D2C) Cold Plate (optional) |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
