Key Architecture Highlights
- Supported processors: Supports Processor Count: 1 Processors (Platform Supports); Supported processors Programme: Single FCBGA-2579, Intel ® Xeon ® Processor D-2700 Series
- Cores ／ Power consumption Supports: CPU TDP and cooling conditions: Support for up to 120W TDP CPUs (wind-cooled)

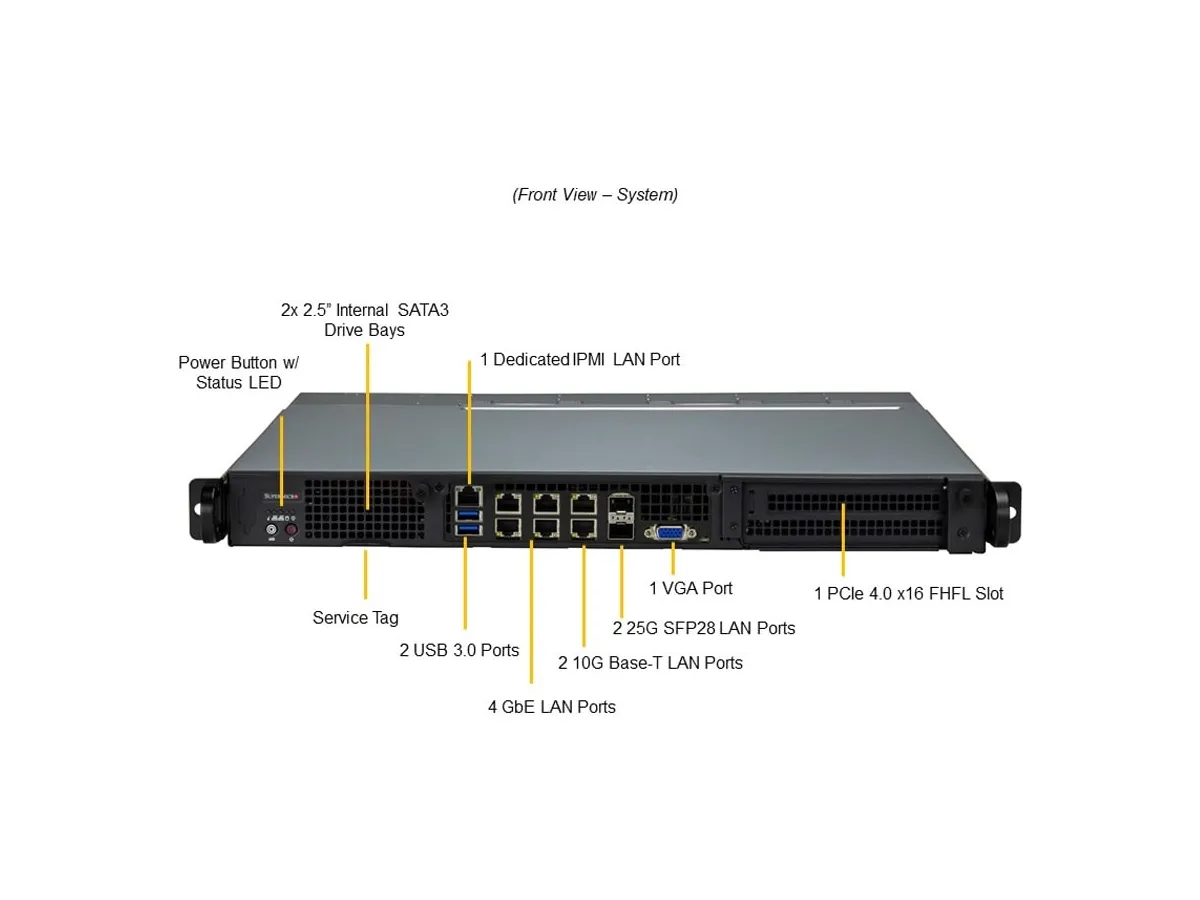

- Memory slots / capacity: DIMM slot number: 4 supports up to memory: up to 512GB (pictured below)
Applications
- Intel QuickAssist technology is used
- Network security equipment
Engineering Parameters
| Supported processors | Supports Processor Count: 1 Processors (Platform Supports) Supported processors Programme: Single FCBGA-2579, Intel ® Xeon ® Processor D-2700 Series |
|---|---|
| Cores ／ Power consumption Supports | CPU TDP and cooling conditions: Support for up to 120W TDP CPUs (wind-cooled) |
| Memory slots / capacity | DIMM slot number: 4 supports up to memory: up to 512GB (pictured below) |
| GPU / accelerator support | Maximum 1 dual-width or 1 single-width GPU NVIDIA PCIe: L4 |
| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 2 bays; 2 Internal Fixed 2.5" SATA Drive bays M.2 (Storage Modules Contents): 1 M.2 NVMe / SATA Slot (M-key 2242/2280) |
| PCIe Expansion | Manufacturer default: 1 PCIe 4.0 x16 Full high full length slot |
| Network interfaces ／ Expansion | Board Network ／ Network Expansion: 4 RJ45 1GBASE-T, Configure Intel ® I350, 2 SFP28 25GbE, Configure Intel ® SoC, 2 RJ45 10GBASE-T, Configure Intel ® X550 Network ports: 1 RJ45 1 GbE Independence BMC Management Network Ports, 4 RJ45 1 GbE Network Ports (Intel ® I350), 2 RJ45 10 GbE Network Ports (Intel ® X550), 2 SFP28 25 GbE Network Ports (Intel ® SOC) |
| External interfaces | USB Ports: 2 Ports Video Ports: 1 VGA Ports |

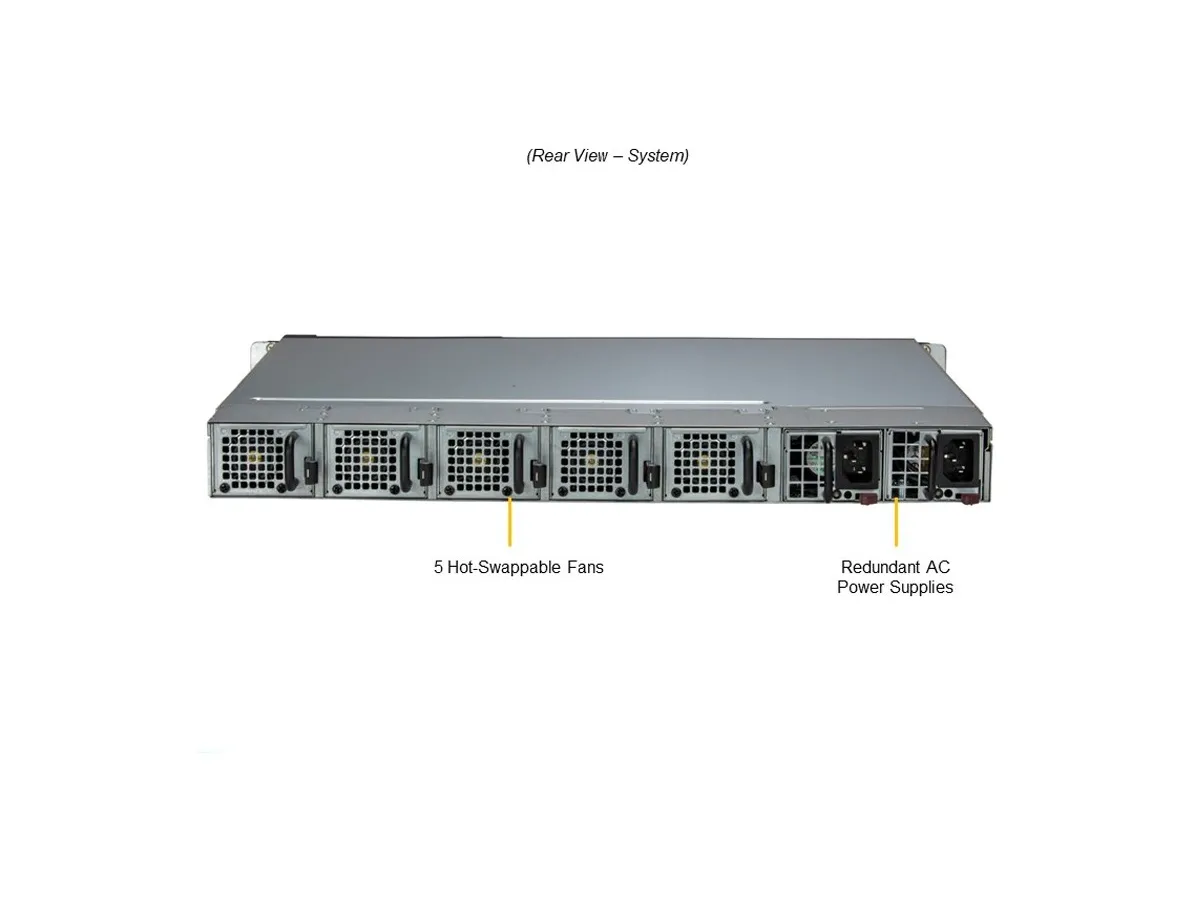

| Power supply options | 2x 800W redundant (1 + 1) Silver grade (94%) power supply module |
| Cooling support | Fan Support configuration: up to 5 reverse rotating, hot-swappable 40x40x56mm fan |
| Management features | SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Hardware security support | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
