Key Architecture Highlights
- Supported processors: Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor
- Cores ／ Power consumption Supports: CPU TDP and cooling conditions: Support for up to 270W TDP CPUs (wind-cooled)
- Memory slots / capacity: DIMM slot number: 16 supports up to memory: up to 4TB (pictured below)
Applications
- Corporate server
- The iSCSI storage area network
- Database processing and storage
- Corporate databases
- Building storage platforms
- Data center
- High-performance computing (HPC)
Engineering Parameters
| Supported processors | Supported processor number: 2 platform supported processors: dual slot E (LGA-4677), 5th generation Intel Xeon/4th generation Intel® Xeon® expandable processor |
|---|---|
| Cores ／ Power consumption Supports | CPU TDP and cooling conditions: Support for up to 270W TDP CPUs (wind-cooled) |
| Memory slots / capacity | DIMM slot number: 16 supports up to memory: up to 4TB (pictured below) |
| Memory speed | 1 DPC: up to 4TB 5600MT/s ECC DDR5 RDIMM |

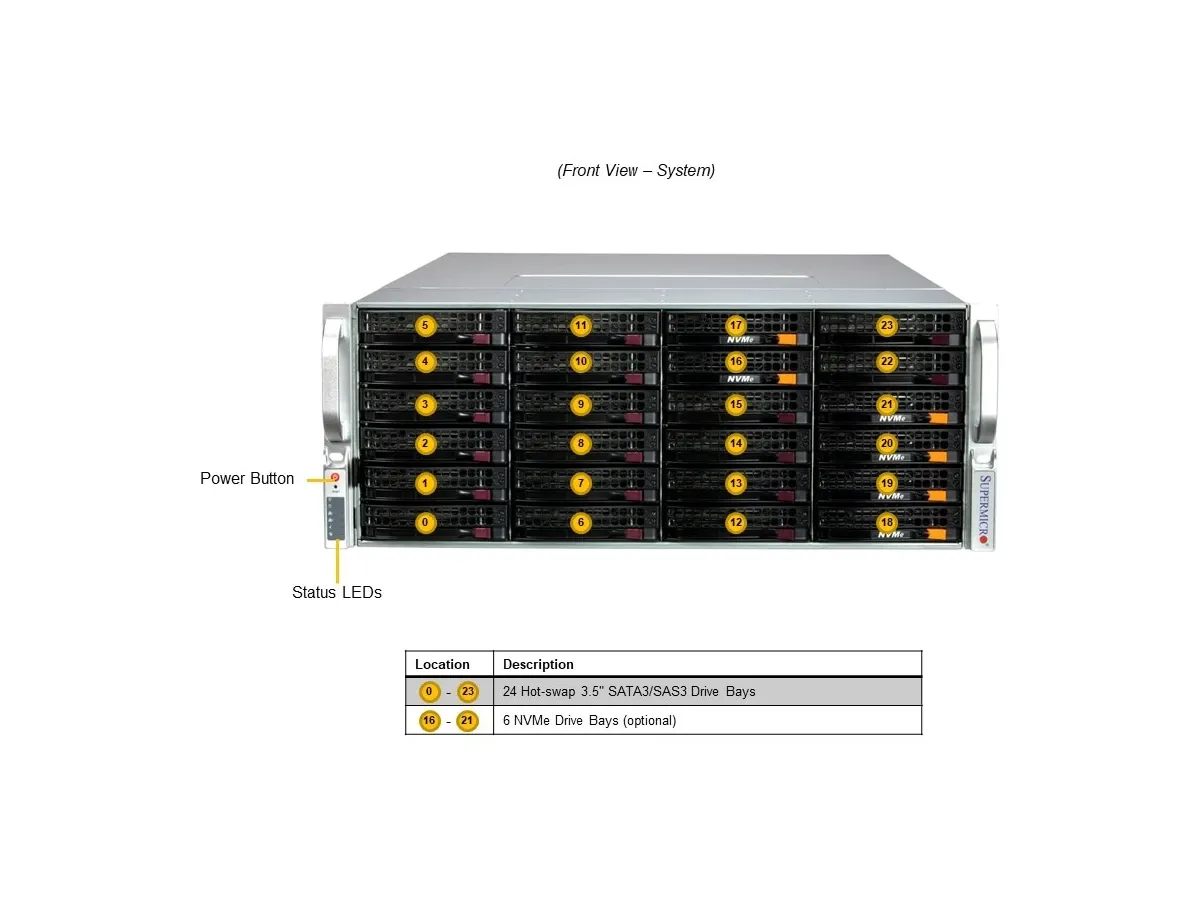

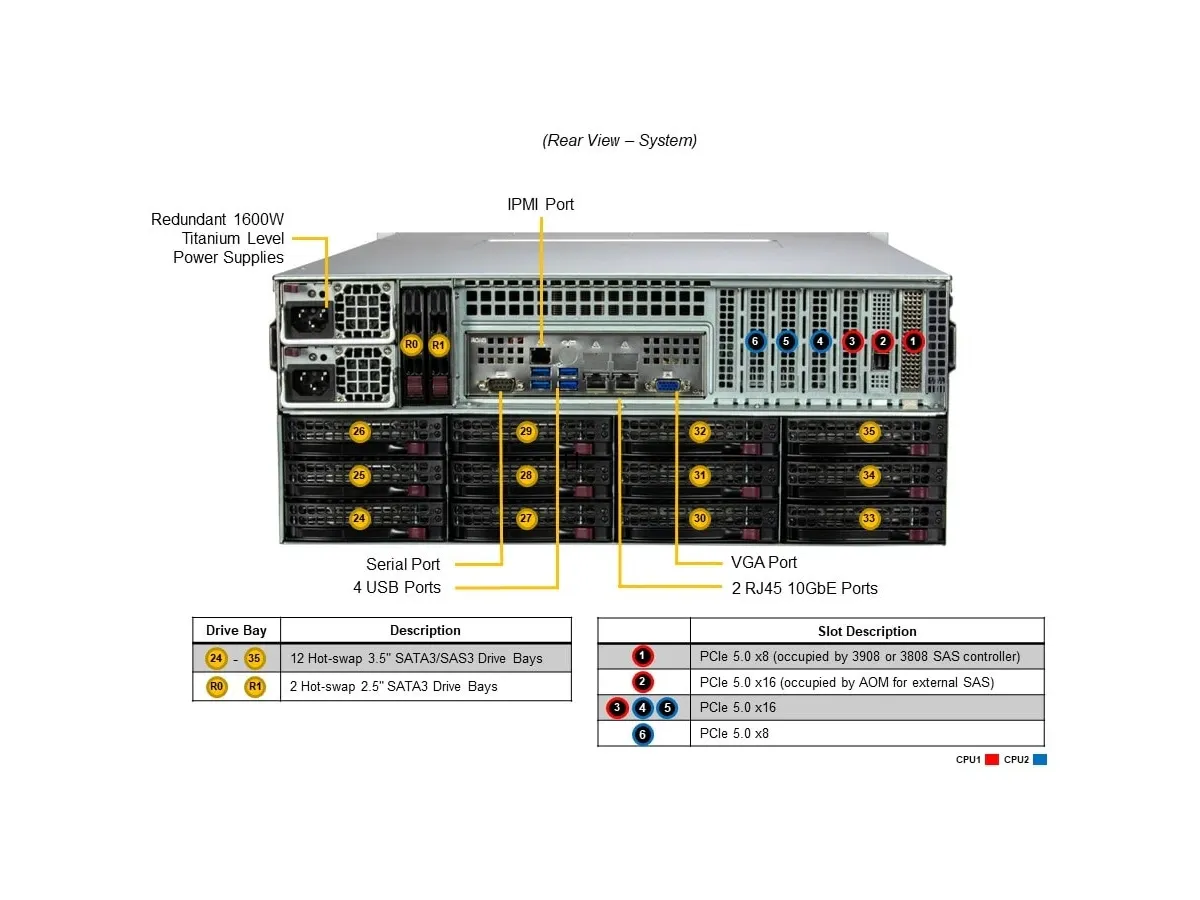

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 38 bays; 12 Back Hot-swappable 3.5" SAS / SATA Drive bays, 2 Back Hot-swappable 2.5" SATA Drive bays, 24 Prefix Hot-swappable 3.5" SAS / SATA Drive bays M.2 (Storage Modules Contents): 2 M.2 NVMe Slot (M-key 2280/22110) |
| PCIe Expansion | Manufacturer's default: 4 PCIe 5.0 x16 (in x16) with a half-high slot, 2 PCIe 5.0 x8 (in x8) with a half-high slot |
| Network interfaces ／ Expansion | Board Network ／ Network Expansion: 2 RJ45 10GbE, Configure Broadcom ® BCM57416 Network ports: 1 RJ45 1 GbE Independence BMC Management Network Ports, 2 RJ45 10 GbE Network Ports (Broadcom ® BCM57416) (IPMI Shared on Net Ports 1) |
| External interfaces | USB ports: 4 USB 3.0 ports (backed up) Video ports: 1 VGA ports (rear) |
| Power supply options | 2x 1600W redundant aluminum grade (96%) hot-swappable power supply module |
| Cooling support | Fan Support Configuration: Up to 7 high-performance 8cm fan |
| Management features | SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| Hardware security support | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
