Key Architecture Highlights
- Supported processors: Supported processors: 2 platforms supported by the software: dual processor; AMD EPYCTM 9004/9005 series processor, (* AMD EPYCTM 9005 Series upgrade support requires mainboard revision 2.x)
- Cores ／ Power consumption Supports: Core/thread and cache upper limit: up to 160C/320T; maximum 512MB of cache per CPU TDP with cooling conditions: support for up to 400W TDP CPUs
- Memory slots / capacity: DIMM slot number: 24 supports up to memory: up to 6TB (pictured below)
Applications
- AI/Deep learning
- Big data analytics and AI
- Engineering/Scientific Research
- High-performance computing (HPC)
Engineering Parameters
| Supported processors | Supported processors: 2 platforms supported by the software: dual processor; AMD EPYCTM 9004/9005 series processor, (* AMD EPYCTM 9005 Series upgrade support requires mainboard revision 2.x) |
|---|---|
| Cores ／ Power consumption Supports | Core/thread and cache upper limit: up to 160C/320T; maximum 512MB of cache per CPU TDP with cooling conditions: support for up to 400W TDP CPUs |
| Memory slots / capacity | DIMM slot number: 24 supports up to memory: up to 6TB (pictured below) |
| Memory speed | 1DPC: up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYCTM 9004 series processor) 1DPC: up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYCTM 9005 series processor) |
| GPU / accelerator support | Up to 8 Double Width GPUs NVIDIA PCIe: L4, L40S, NVIDIA RTX PRO ™ 4000 Blackwell, NVIDIA RTX PRO ™ 4500 Blackwell, NVIDIA RTX PRO ™ 4500 Blackwell Server Edition, NVIDIA RTX PRO ™ 5000 Blackwell, NVIDIA RTX PRO ™ 6000 Blackwell Ma x -Q Workstation Edition, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation; AMD PCIe: Instinct ™ MI210, Radeon ™ AI PRO R9700S |

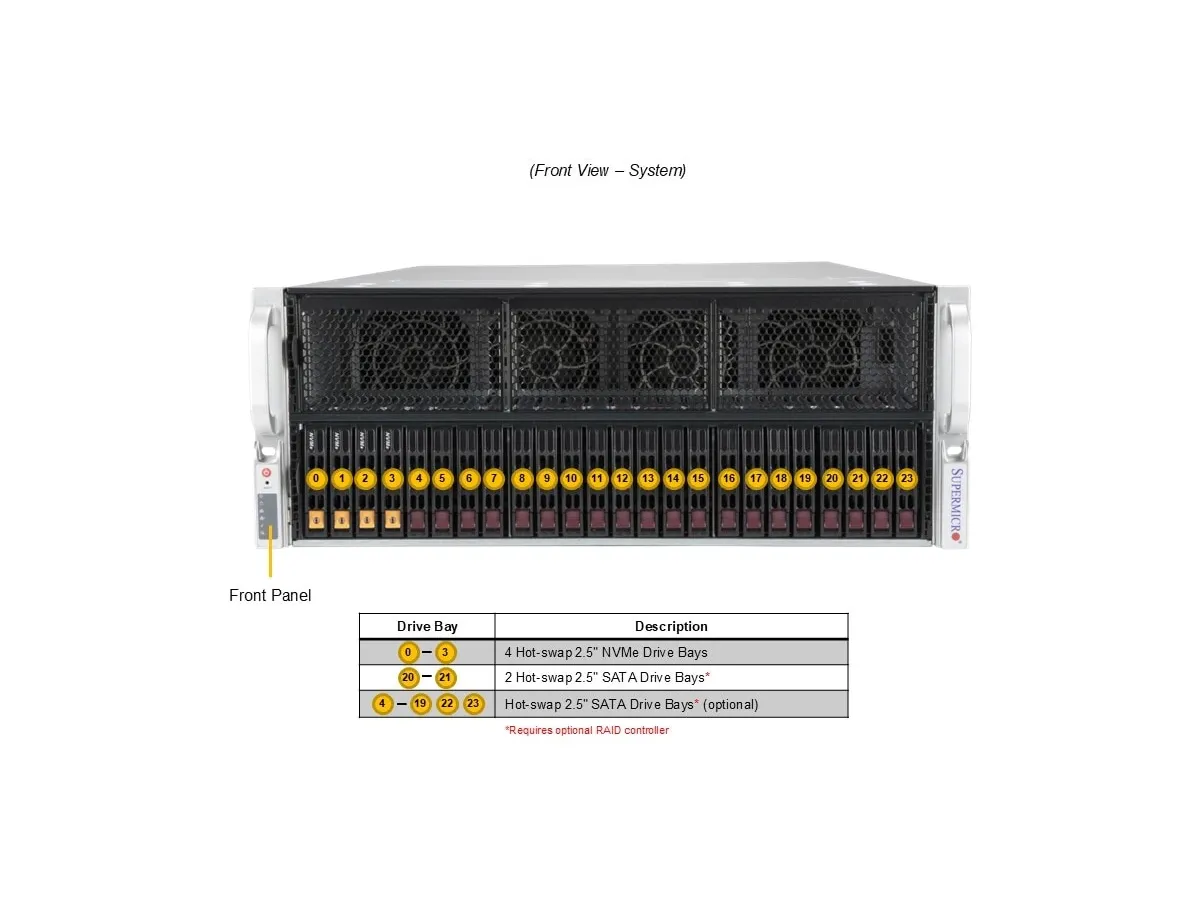

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 6 bays; 2 Prefix Hot-swappable 2.5" SATA Drive bays, 4 Prefix Hot-swappable 2.5" NVMe Drive bays Drive bays (Optional): Optional Option A: Total 2 bays; 2 Prefix Hot-swappable 2.5" SATA Drive bays M.2 (Storage Modules Contents): 1 M.2 PCIe 3.0 x4 NVMe Slot (M-key) |
| Storage controller ／ RAID | SATA and RAID:SATA (6Gbps) |

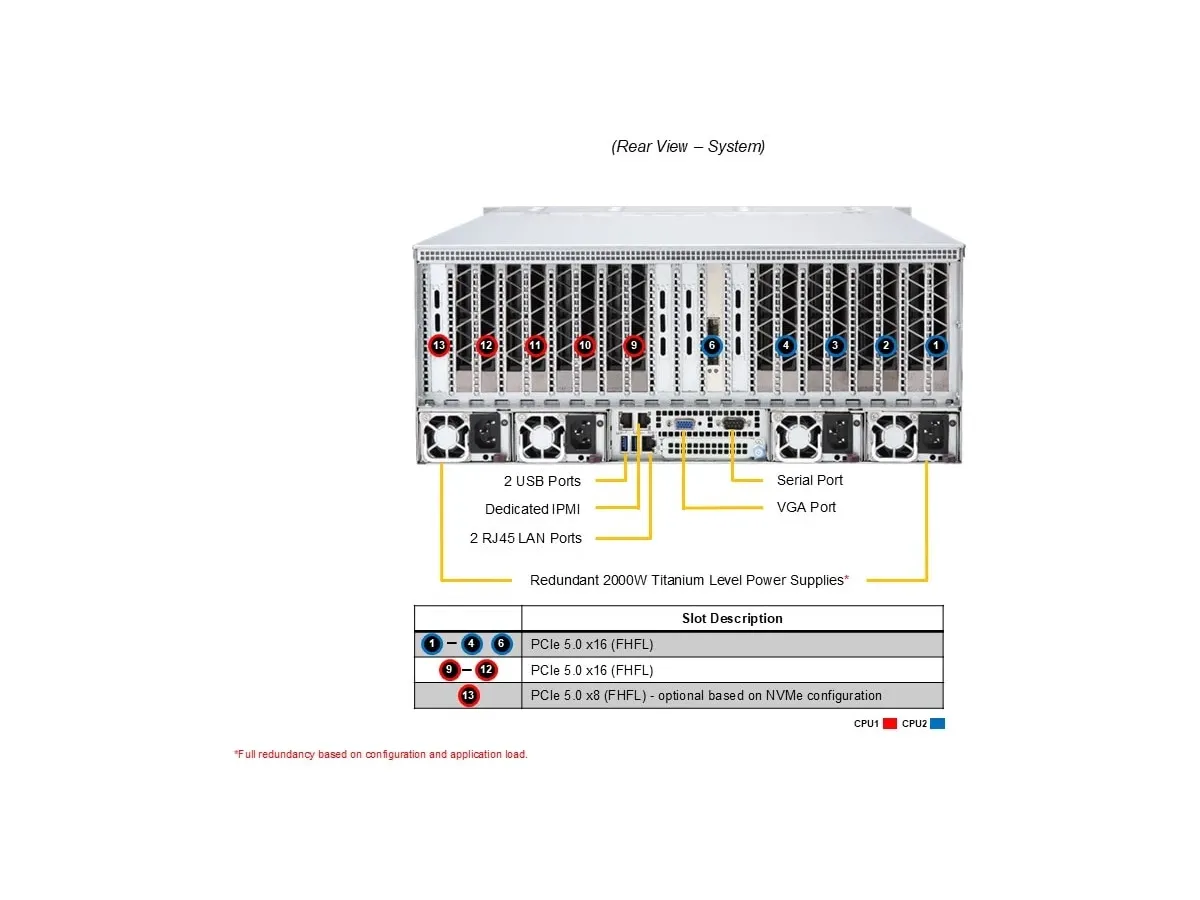

| PCIe Expansion | Manufacturer's default: 9 PCIe 5.0 x16 full-length slot Optional A: 10 PCIe 5.0 x16 full-length slot |
| Network interfaces ／ Expansion | Board Network ／ Network Expansion: 2 RJ45 10GbE Network ports: 1 RJ45 1 GbE Independence BMC Management Network Ports, 2 RJ45 10 GBASE-T Network Ports |
| External interfaces | USB Ports: 2 Ports (Back) Video Ports: 1 VGA Ports |
| Power supply options | 4x 2000W redundant (3 + 1) Platinum grade (96%) power supply module |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
