Key Architecture Highlights
- Supported processors: Supported processors: 2 platforms supported by the software: dual processor; AMD EPYCTM 9004/9005 series processor, (* AMD EPYCTM 9005 Series upgrade support requires mainboard revision 2.x)
- Cores ／ Power consumption Supports: CPU TDP and cooling conditions: supports up to 400W TDP CPUs *, * wind-cooled CPUs with a TDP of more than 290W are supported only under specific conditions.
- Memory slots / capacity: DIMM slot number: 24 supports up to memory: up to 6TB (pictured below)
Applications
- Virtualization
- Software defines storage
- AI reasoning and machine learning
- Cloud computing
- Corporate server
Engineering Parameters
| Supported processors | Supported processors: 2 platforms supported by the software: dual processor; AMD EPYCTM 9004/9005 series processor, (* AMD EPYCTM 9005 Series upgrade support requires mainboard revision 2.x) |
|---|---|
| Cores ／ Power consumption Supports | CPU TDP and cooling conditions: supports up to 400W TDP CPUs *, * wind-cooled CPUs with a TDP of more than 290W are supported only under specific conditions. |
| Memory slots / capacity | DIMM slot number: 24 supports up to memory: up to 6TB (pictured below) |
| Memory speed | 1DPC: up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYCTM 9004 series processor , MB R1.x/R2.0/R2.01) 1DPC: up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYCTM 9005 series processor , MB R2.0) 1DPC: up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYCTM 9005 series processor , MB R2.01) |

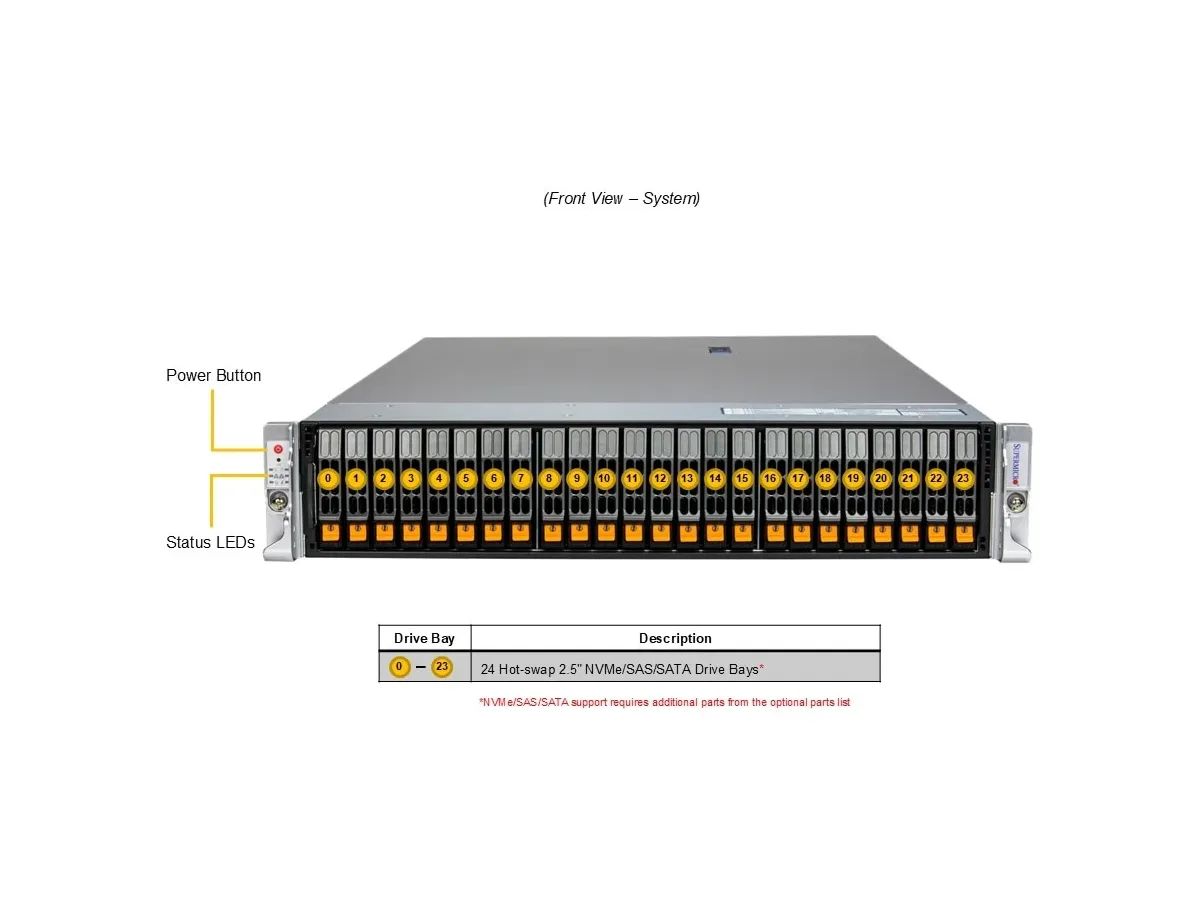

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 24 bays; 24 Prefix Hot-swappable 2.5" NVMe * / SAS * / SATA * Drive bays M.2 (Storage Modules Contents): 2 M.2 PCIe 3.0 x4 NVMe Slot (M-key 2280/22110) |

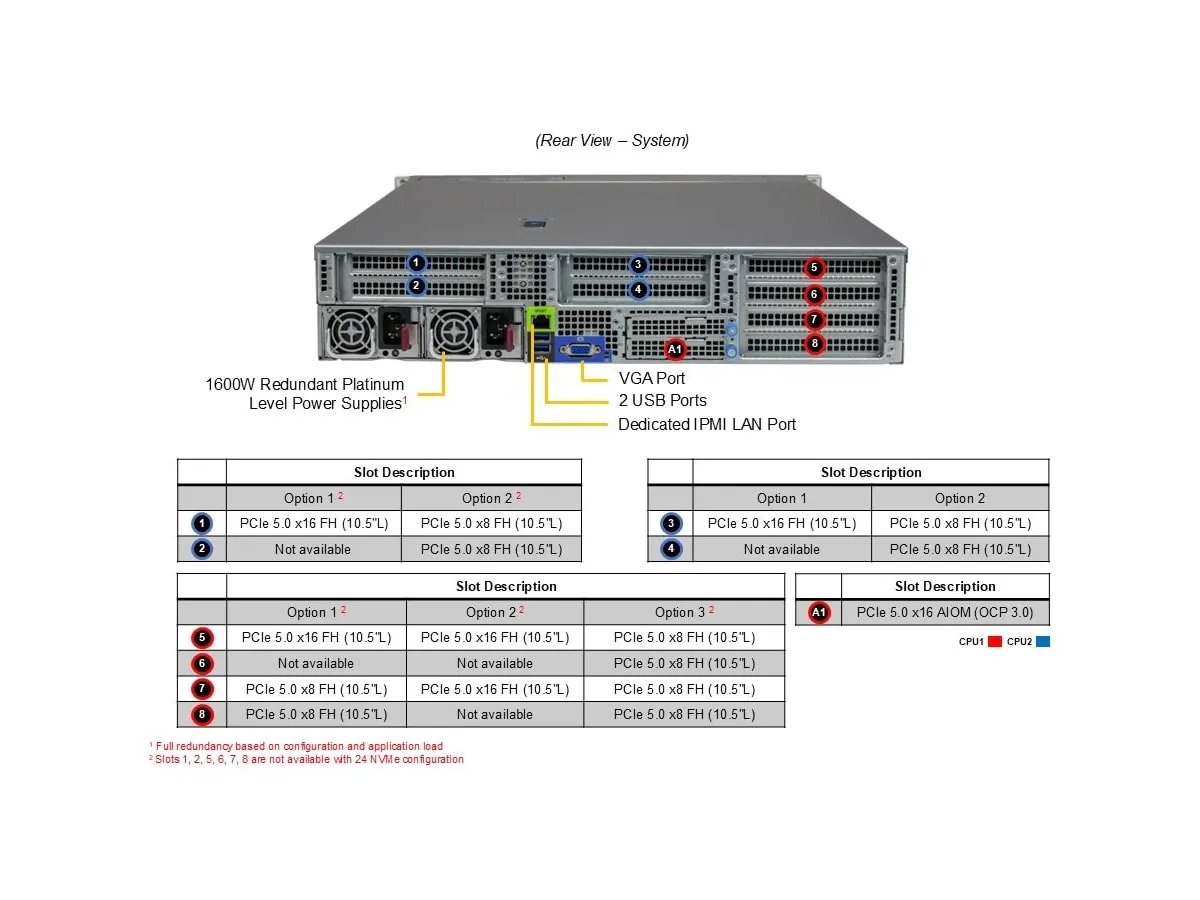

| PCIe Expansion | Vendor Default Programme: 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option A *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option B *: 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option C *: 2 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option D *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option E *: 4 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option F *: 4 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Programme G *: 3 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option H *: 2 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 4 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Programme I *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 6 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); (* Requires additional parts, please see the optional parts list for details. For more details on PCIe Slot configuration options, Please return to the system callout images above.) |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
