Key Architecture Highlights
- Supported processors: Supports Processor Count: 1 Processors (Platform Supports); Supported processors Programme: Single Processor; AMD EPYC ™ 9004/9005 Series Processor, (* AMD EPYC ™ 9005 Series Upgrade Supports Request Master Board Revision 2.x)
- Cores ／ Power consumption Supports: Core/thread and cache upper limit: maximum 160C/320T CPU TDP with cooling conditions: support for up to 500W TDP CPUs *, * wind-cooled CPUs with a TDP of more than 290W are supported only under specific conditions.
- Memory slots / capacity: DIMM slot number: 24 supports up to memory: up to 6TB (pictured below)
Applications
- Virtualization
- Software defines storage
- AI reasoning and machine learning
- Cloud computing
- Corporate server
Engineering Parameters
| Supported processors | Supports Processor Count: 1 Processors (Platform Supports) Supported processors Programme: Single Processor; AMD EPYC ™ 9004/9005 Series Processor, (* AMD EPYC ™ 9005 Series Upgrade Supports Request Master Board Revision 2.x) |
|---|---|
| Cores ／ Power consumption Supports | Core/thread and cache upper limit: maximum 160C/320T CPU TDP with cooling conditions: support for up to 500W TDP CPUs *, * wind-cooled CPUs with a TDP of more than 290W are supported only under specific conditions. |
| Memory slots / capacity | DIMM slot number: 24 supports up to memory: up to 6TB (pictured below) |
| Memory speed | 1DPC: Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC ™ 9004 Series Processor) 2DPC: Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC ™ 9004 Series Processor) 1DPC: Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC ™ 9005 Series Processor) 2DPC: Up to 6TB 4400MT/s ECC DDR5 1R RDIMM (AMD EPYC ™ 9005 Series Processor) 2DPC: Up to 6TB 4000MT/s ECC DDR5 2R RDIMM (AMD EPYC ™ 9005 Series Processor) |
| GPU / accelerator support | Up to 4 Double Width GPUs NVIDIA PCIe: H100 NVL, L4, L40S, RTX 4500 Ada, RTX 6000 Ada Generation; AMD PCIe: Instinct ™ MI210 |

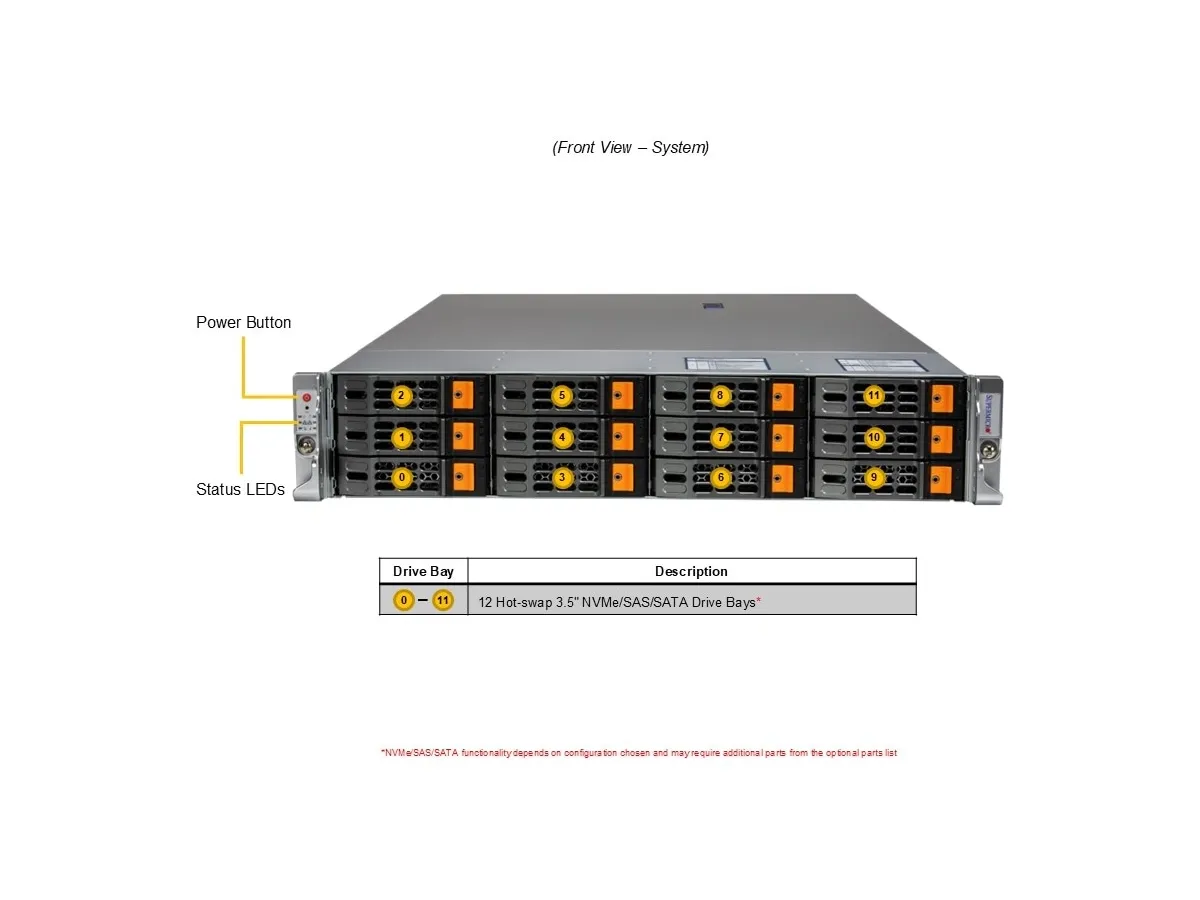

| Drive bays (Major programme) | Drive bays (Vendor Default): Vendor Default Programme: Total 12 bays; 12 Prefix Hot-swappable 3.5"/2.5" NVMe * / SAS * / SATA * Drive bays M.2 (Storage Modules Contents): 1 M.2 PCIe 3.0 x4 NVMe Slot (M-key 22110 (default) / 2280), 1 M.2 PCIe 3.0 x2 NVMe Slot (M-key 22110 (default) / 2280) |

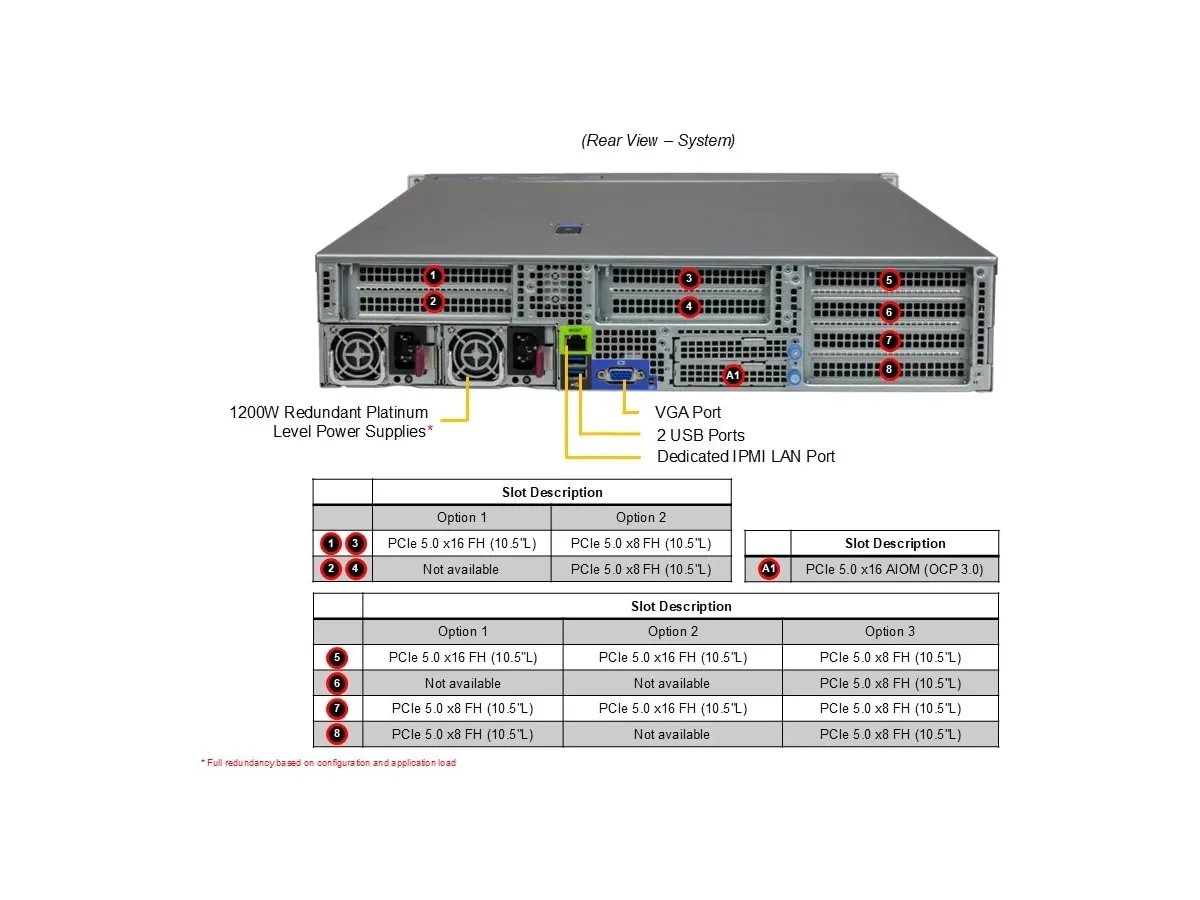

| PCIe Expansion | Vendor Default Programme: 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option A *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option B *: 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option C *: 2 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option D *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option E *: 4 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option F *: 4 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Programme G *: 3 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 2 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Option H *: 2 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 4 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); Optional Programme I *: 1 PCIe 5.0 x16 (in x16) All Height Full, double. Width Slot, 6 PCIe 5.0 x8 (in x16) All Height All length Slot, 1 PCIe 5.0 x16 AIOM Slot (OCP 3.0 compatible); (* Requires additional parts, please see the optional parts list for details. For more details on PCIe Slot configuration options, Please return to the system callout images above.) |
Warranty
The manufacturer's standard limited warranty policy lists the integrated manual service and parts respectively; the standard table is for 3 years of manual work, 1 year of spare parts; only applicable to original purchasers who comply with the policy, and third party components according to their respective terms.
