Key Architecture Highlights
- Configurable AP Count Upper limit: 32,768
- Manage Clients Count Upper limit: 120,000 Note: The maximum number of clients that can be managed by the RG-WS7816C is subject to the network environment. Contact technical support team for details.
- Wireless Forwarding performance: 120 Gbps Note: The value depends on the wireless network environment and configuration mode.
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| Manage AP Count Upper limit | 10,240 (indoor or wall-plate APs) Note: The RG-WS7816C manages 128 APs by default. The maximum number of APs that can be managed by the RG-WS7816C is subject to the AP model. For details, see Ordering Information. |
|---|---|
| Configurable AP Count Upper limit | 32,768 |
| Manage Clients Count Upper limit | 120,000 Note: The maximum number of clients that can be managed by the RG-WS7816C is subject to the network environment. Contact technical support team for details. |
| Wireless Forwarding performance | 120 Gbps Note: The value depends on the wireless network environment and configuration mode. |

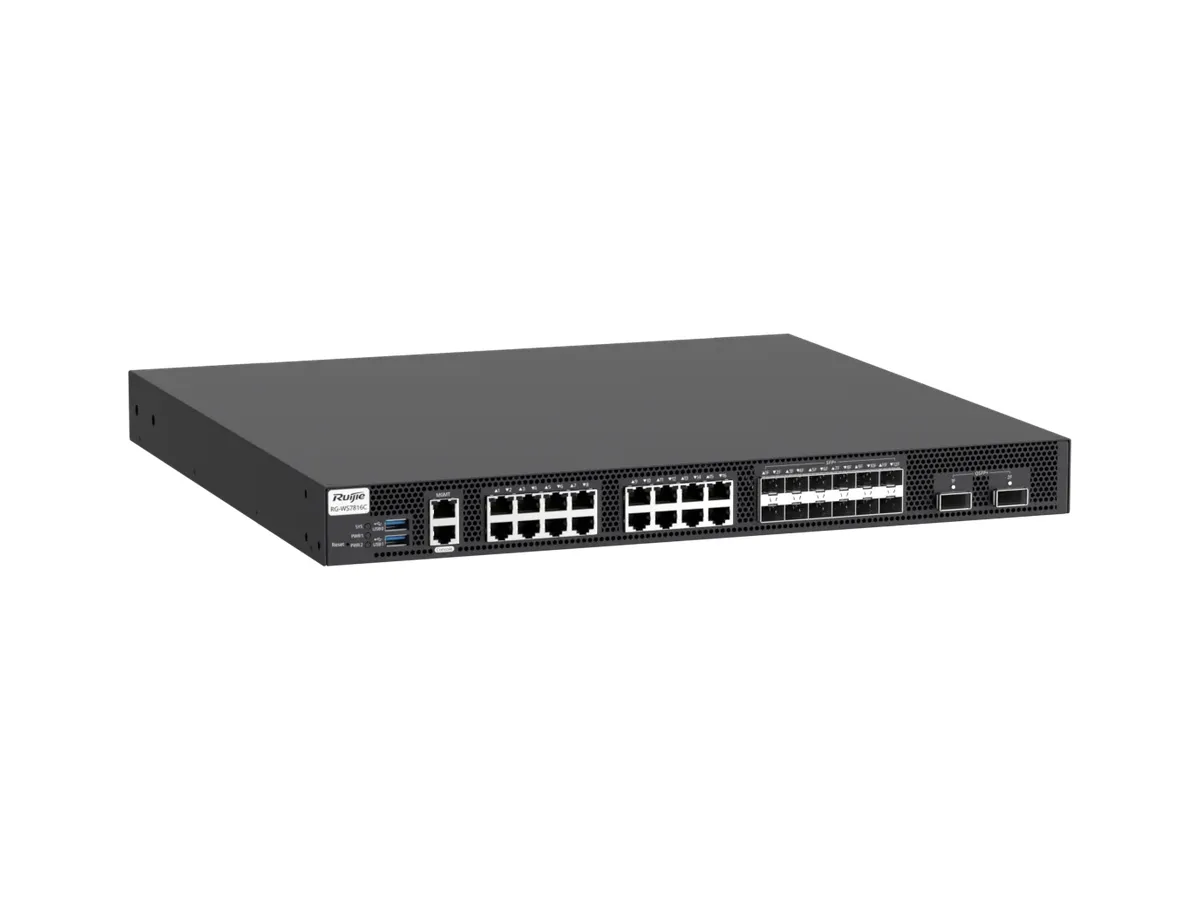

| Interface | 16 x 10/100/1000BASE-T ports 12 x 10GE SFP+ ports 2 x 40GE QSFP+ ports 1 x RJ45 MGMT port 1 x RJ45 console port 2 x USB 3.0 ports, compatibility with USB 2.0 |
| Power input | 2 x RG-PA550I II-F power modules (one power module configured) Power input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 7.2-3.5A MAX(X2) Power output: 12 V DC/45 A |
| Maximum Power consumption | 220 W |
| Device dimensions (Width × Depth × Height) | Excluding the rack-mount bracket: 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) Including the rack-mount bracket: 484.6 mm x 420 mm x 43.6 mm (19.08 in. x 16.54 in. x 1.72 in.) |
| Weight | Unit weight: 6.75 kg (14.88 lbs) Shipping weight: 7 kg (15.43 lbs) |
| Environmental requirements | Storage temperature: –40°C to +70°C (–40°F to +158°F) Storage humidity: 5% RH to 95% RH (non-condensing) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Operating temperature: 0°C to 45°C (32°F to 113°F) Operating humidity: 10% RH to 90% RH (non-condensing) Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Note: At an altitude in the range of 1,800–5,000 m (5,905.51–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Fan Modules | Fan speed adjustment Fan fault alarms |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
