Key Architecture Highlights
- Memory: 4 GB
- Flash Storage: 16 MB
- Net weight: 2.7 kg (5.95 lbs)
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| Memory | 4 GB |
|---|---|
| Flash Storage | 16 MB |
| Device dimensions (Width × Depth × Height) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets) 486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets) |
| Net weight | 2.7 kg (5.95 lbs) |
| Installation method | Rack-mount |

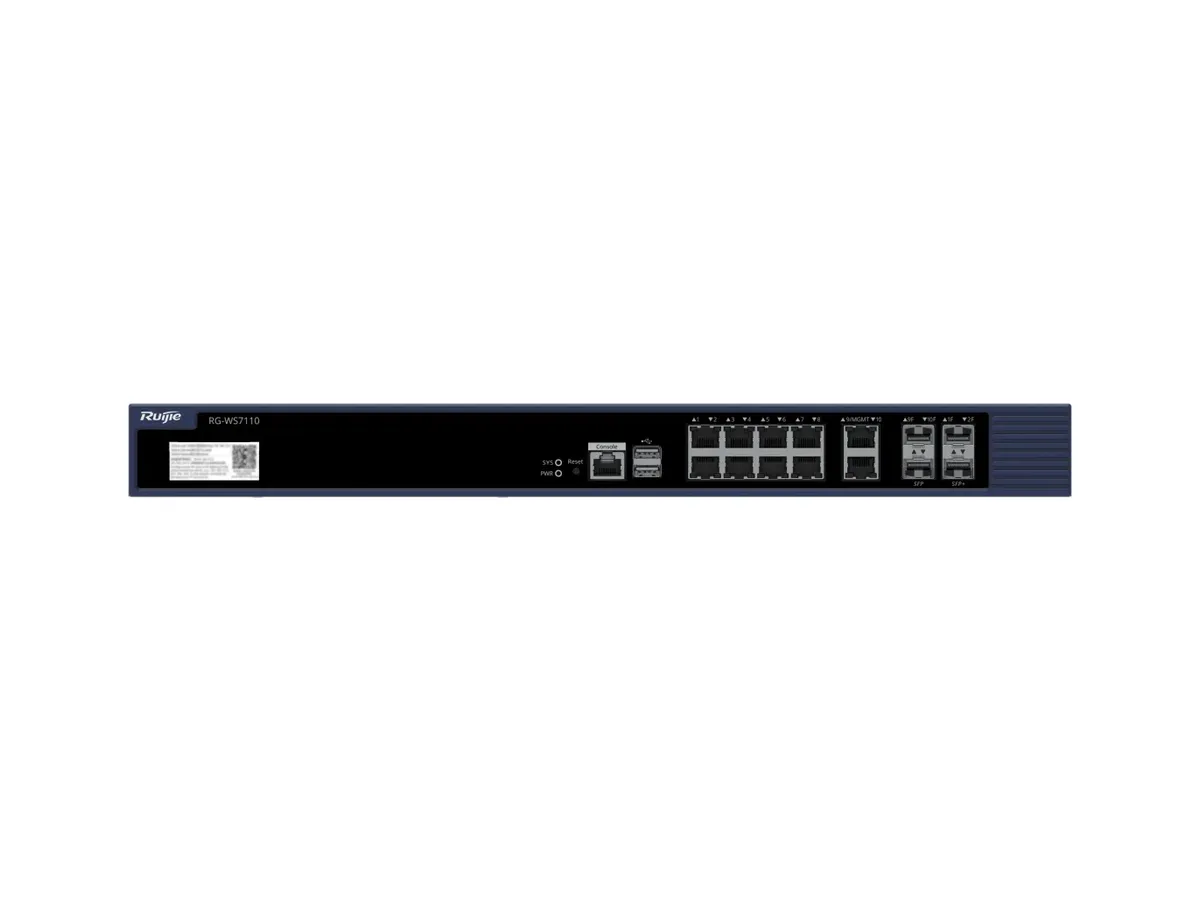

| Service ports | 8 x 10/100/1000BASE-T ports 2 x 1GE SFP/RJ45 combo ports ● RJ45 ports support 10/100/1000BASE-T. ● Port 9/MGMT can also be used as a management port. 2 x 10GE SFP+ ports |
| Management Ports | 1 x RJ45 console port 2 x USB 3.0 ports, compatibility with USB 2.0 |
| Maximum Power consumption | 30 W |
| Power supply Input | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Temperature requirements | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Altitude range | Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) |
| Humidity requirements | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
| Configurable AP Count Upper limit | 2,048 |
| Manage AP Count Upper limit | 512 (Generic APs) 1024 (Wall-Plate APs) Note: The maximum number of APs that can be managed by the RG-WS7110 is subject to the AP model. For details, see the Ordering Information. |
| Manage Clients Count Upper limit | 5,120 Note: The maximum number of clients that can be managed by the RG-WS7110 is subject to the network environment. Contact technical support team for details. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
