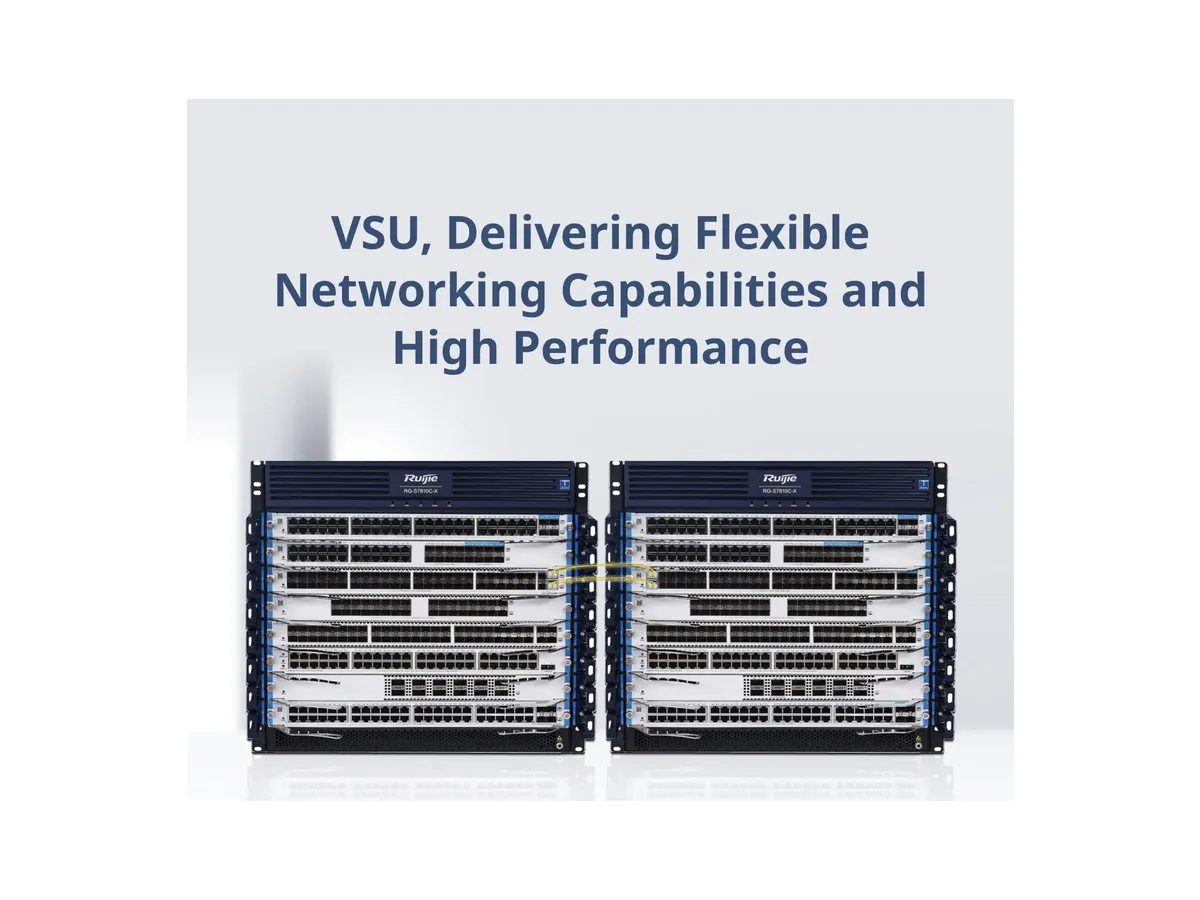

Key Architecture Highlights
- Modules Slot: 2 x supervisor module slots 8 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots
- Master Module: M7810C-CM-X
- Swap Network Module: M7810C-FE-X I M7810C-FE-X II
Applications
- Enterprise campus networks
- Network access and aggregation
Engineering Parameters
| Modules Slot | 2 x supervisor module slots 8 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots |
|---|---|
| Master Module | M7810C-CM-X |
| Swap Network Module | M7810C-FE-X I M7810C-FE-X II |
| Service line cards | M7800C-48GT4XS-XA M7800C-48SFP4XS-XA M7800C-24GT8SFP8XS-XA M7800C-32XS-XA M7800C-52XS-XB M7800C-12CQ-XB M7800C-48XT-P-XB M7800C-8SFG-XB M7800C-8SFX-XB |
| Power supply specifications | Power supply Modules: RG-PA600I RG-PA1600I RG-PD600I Power supply specifications: 4 x pluggable power modules Power input: RG-PA600I (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1600I (AC input): ● Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz ● Maximum input current: 16 A RG-PD600I (DC input): ● Rated input voltage: –48 V DC ● Maximum input voltage: –40 V DC to –75 V DC ● Maximum input current: 20 A |
| Fan Modules | M10C-FAN (pre-installed 2) |
| Modules Management interface | M7810C-CM-X: ● 1 x RJ45 console port ● 1 x RJ45 MGMT port M7810C-FE-X I/II: ● 1 x RJ45 console port |
| USB Interface | M7810C-CM-X: 1 x USB 2.0 port (no capacity limit, 2G/4G/8G/16G/32G capacity tested) |
| Processor | Supervisor module: ● M7810C-CM-X: quad-core processor, each core 2.2 GHz Line card: ● XA/XB series line card: quad-core processor, each core 2.2 GHz |
| Flash Storage | M7810C-CM-X: 8 GB M7810C-FE-X I/II: 8 GB XA/XB card: 8 GB |
| Memory | M7810C-CM-X: 4 GB DDR4 M7810C-FE-X I: 1 GB DDR4 M7810C-FE-X II: 4 GB DDR4 XA/XB card: 4 GB DDR4 |
| Switch buffer | XA series line card (excluding M7800C-32XS-XA): 4 MB XB series line card: 35 MB M7800C-32XS-XA: 35 MB |
| Maximum Output Power | RG-PA600I: 600 W RG-PA1600I: ● 100 V AC to 176 V AC: 1200 W ● 176 V AC to 240 V AC: 1600 W RG-PD600I: 600 W |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
