Key Architecture Highlights
- Chassis dimensions: dimensions (width x depth x height):446 mm x 800 mm x 173.6 mm (17.56 in. x 31.5 in. x 6.84 in.) rack height:4 RU
- Weight: 37.6 kg (82.89 lbs., empty chassis) 45 kg (99.21 lbs., a chassis with four power modules and five fan modules)
- Switching capacity: 102.4 Tbps
Applications
- Campus network
- Enterprise network access and aggregation
Engineering Parameters
| Chassis dimensions | dimensions (width x depth x height):446 mm x 800 mm x 173.6 mm (17.56 in. x 31.5 in. x 6.84 in.) rack height:4 RU |
|---|---|
| Weight | 37.6 kg (82.89 lbs., empty chassis) 45 kg (99.21 lbs., a chassis with four power modules and five fan modules) |
| Switching capacity | 102.4 Tbps |
| Packet forwarding rate | 21000 Mpps |
| Service ports | 128 x 100G/200G/400G QSFP112 ports 2 x GE/10GE SFP+ ports |
| Management interface | 1 x RJ45 console port 1 x RJ45 MGMT port |
| USB Interface | 1 x USB 2.0 port (Type A connector) |

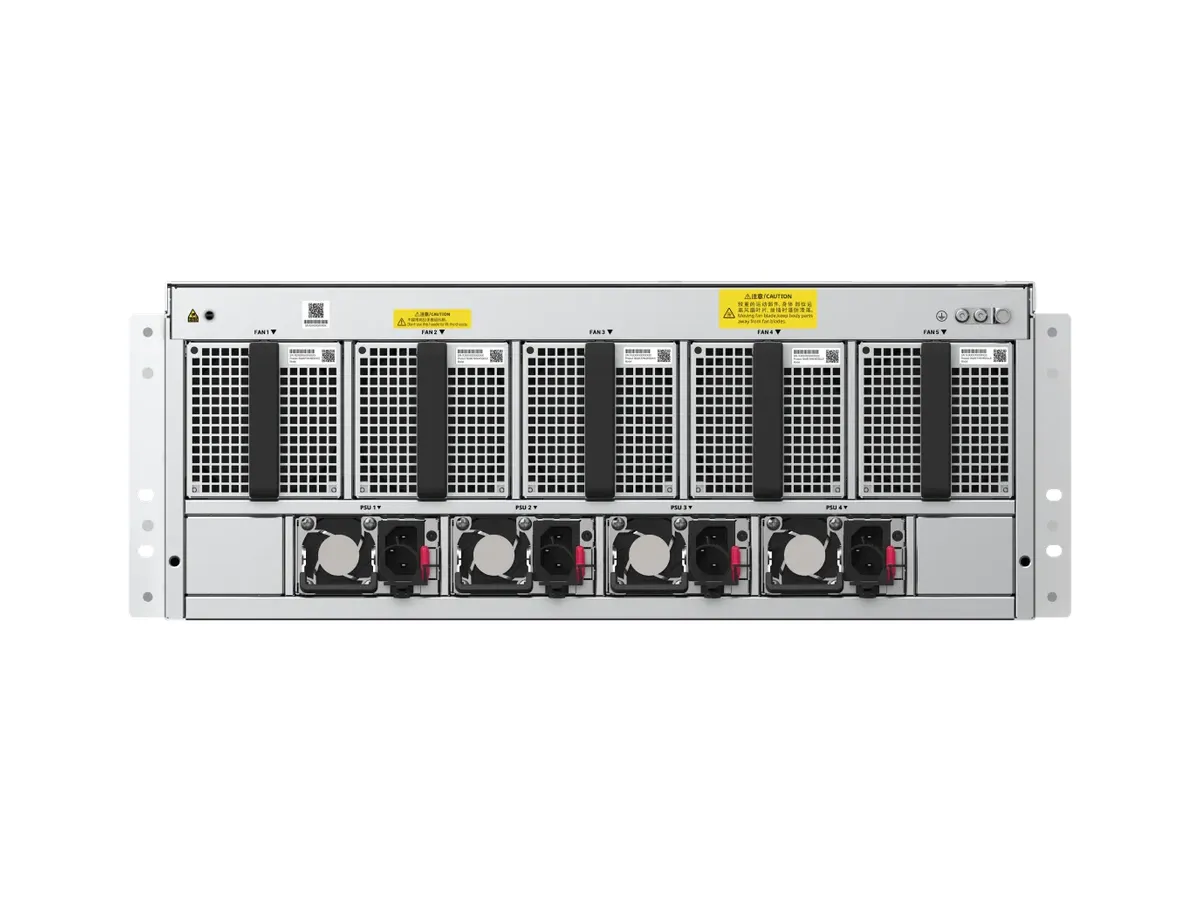

| Modules Slot | 4 x power module slots 5 x fan module slots |
| Power consumption | Maximum power consumption: 3160 W Typical power consumption: 2432 W Static power consumption: 433 W |
| Power supply specifications | RG-PA1600II-F (AC input): Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 12 A (100 V AC to 127 V AC) 9.5 A (200 V AC to 240 V AC) Power port type: C14 RG-PA1600II-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 300 V DC Rated input current: 9.5 A Power port type: C14 |
| Temperature range | Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft) increase in elevation. |
| Humidity range | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude range | Operating altitude ≤ 5,000 m (16,404.20 ft.) Storage altitude ≤ 5,000 m (16,404.20 ft.) |
| Cooling method | Air cooling, front-to-rear airflow (port-side intake) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
