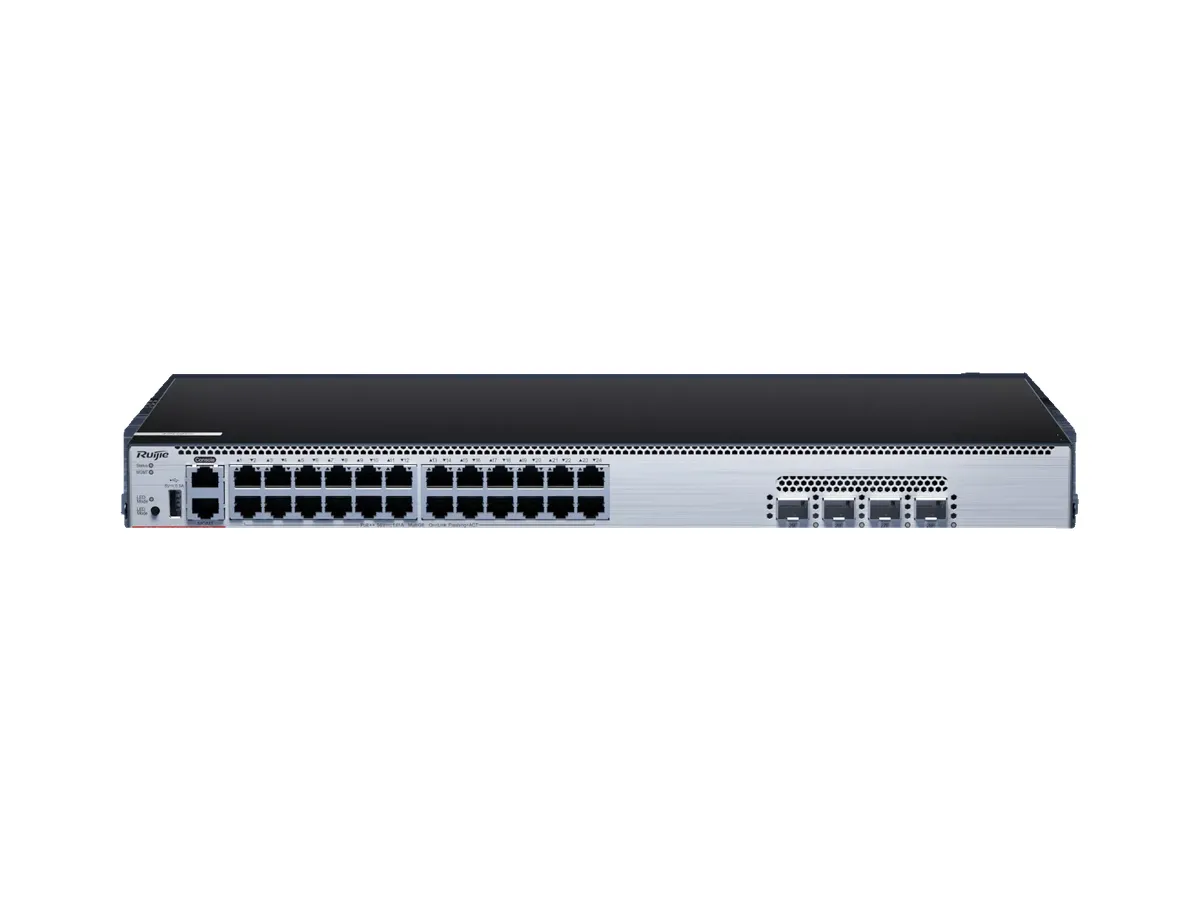

Key Architecture Highlights
- Service ports: 24 x 100/1000/2.5G/5GBASE-T ports, supporting PoE/PoE+/PoE++ 4 x 10GE/25GE SFP28 ports
- Modules Slot: Not Supported
- Power supply Modules: Not Supported
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| Service ports | 24 x 100/1000/2.5G/5GBASE-T ports, supporting PoE/PoE+/PoE++ 4 x 10GE/25GE SFP28 ports |
|---|---|
| Modules Slot | Not Supported |
| Power supply Modules | Not Supported |
| Fan Modules | Not Supported |
| Management Ports | 1 x RJ45 console port 1 x RJ45 MGMT port |
| USB Interface | 1 x USB 2.0 port |
| System Switching capacity | 528 Gbps |
| Processor | Single-core CPU, with the clock speed of 1.2 GHz |
| Flash Storage | 1 GB (storing boot software for 1+1 boot redundancy) |
| Memory | 1 GB DDR4 (32-bit width, 4-bit ECC) |
| Switch buffer | 4 MB |
| Power input | 1 x fixed power supply |
| Power supply Input | AC input: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
| Maximum Output Power | Fixed power supply: 460 W |
| Maximum Power consumption | 90 W (without PoE) 460 W (full PoE load) |
| Device dimensions (Width × Depth × Height) | 442.0 mm x 220.0 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Rack height | 1 RU |
| Net weight | 3.71 kg (8.18 lbs) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
