Key Architecture Highlights
- Chassis form factor and dimensions: dimensions (width x depth x height):440 mm x 300 mm x 44 mm (17.32 in. x 11.81 in. x 1.73 in.) rack height:1 RU
- Weight: 3.6 kg (7.94 lbs., empty chassis) 4.8 kg (10.58 lbs., a chassis with two power modules and one fan module)
- Switching capacity: 256Gbps
Applications
- Data center network
- Connecting business data
Engineering Parameters
| Chassis form factor and dimensions | dimensions (width x depth x height):440 mm x 300 mm x 44 mm (17.32 in. x 11.81 in. x 1.73 in.) rack height:1 RU |
|---|---|
| Weight | 3.6 kg (7.94 lbs., empty chassis) 4.8 kg (10.58 lbs., a chassis with two power modules and one fan module) |
| Switching capacity | 256Gbps |
| Packet forwarding rate | 192 Mpps |

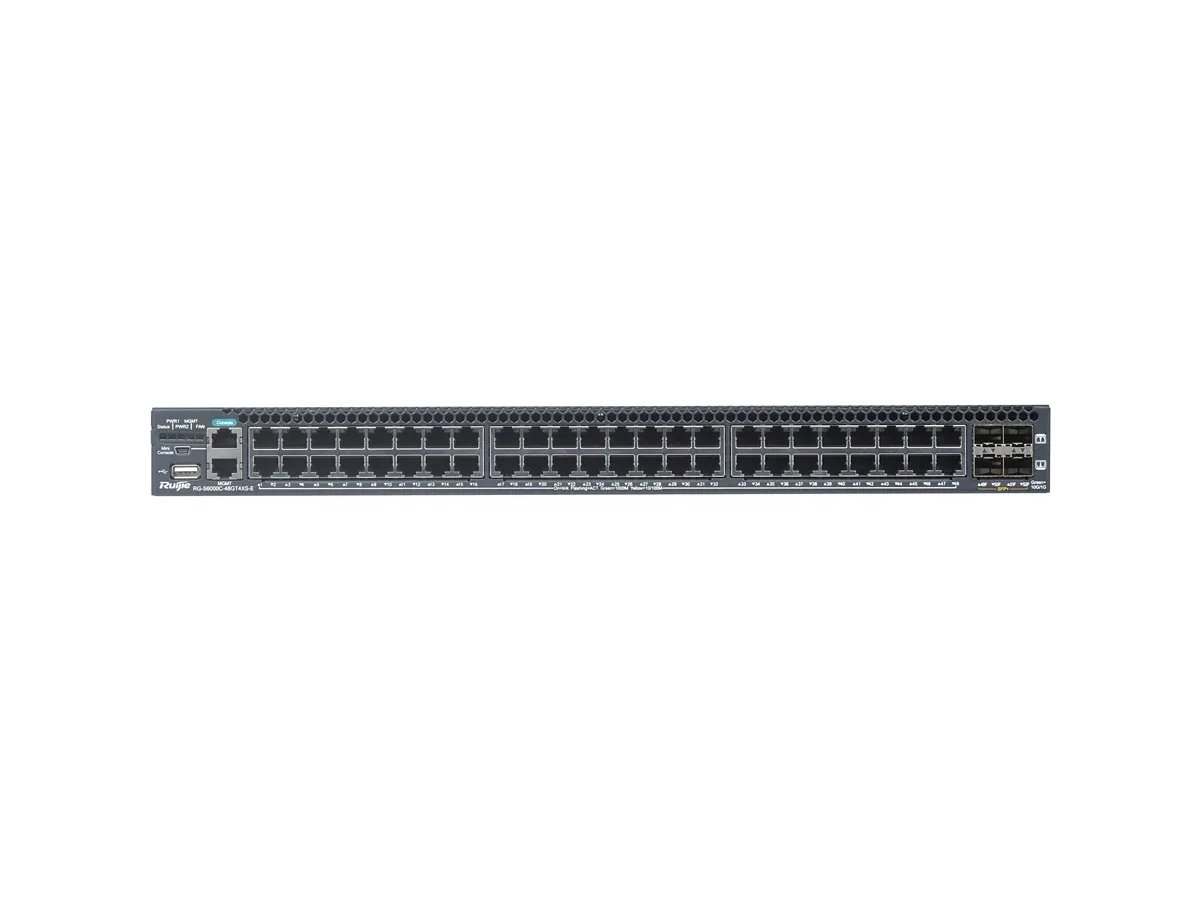

| Service ports | 48 x 10/100/1000BASE-T ports 4 x 10G/1G SFP+ ports |
| Management interface | 1 x RJ45 console port 1 x RJ45 MGMT port |
| USB Interface | 1 x USB 2.0 port (Type A connector) 1 x mini-b USB 2.0 serial port |
| Modules Slot | 2 x power module slots 1 x fan module slot |
| Power consumption | Maximum power consumption: 60 W Typical power consumption: 50 W Static power consumption: 34.2 W |
| Power supply specifications | RG-PA70I (AC input): Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 2 A (100 V AC to 240 V AC) Power port type: C14 RG-PA70I (HVDC input): Rated input voltage: 120 V DC to 340 V DC Maximum input voltage: 110 V DC to 380 V DC Rated input current: 2 A Power port type: C14 |
| Temperature range | Operating temperature: 0°C to 50°C (32°F to 122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity range | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
| Altitude range | Operating altitude: ≤ 3,000 m (9,842.52 ft.) Storage altitude: ≤ 5,000 m (16,404.20 ft.) |
| Cooling method | Air cooling, front-to-rear airflow (port-side intake) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
