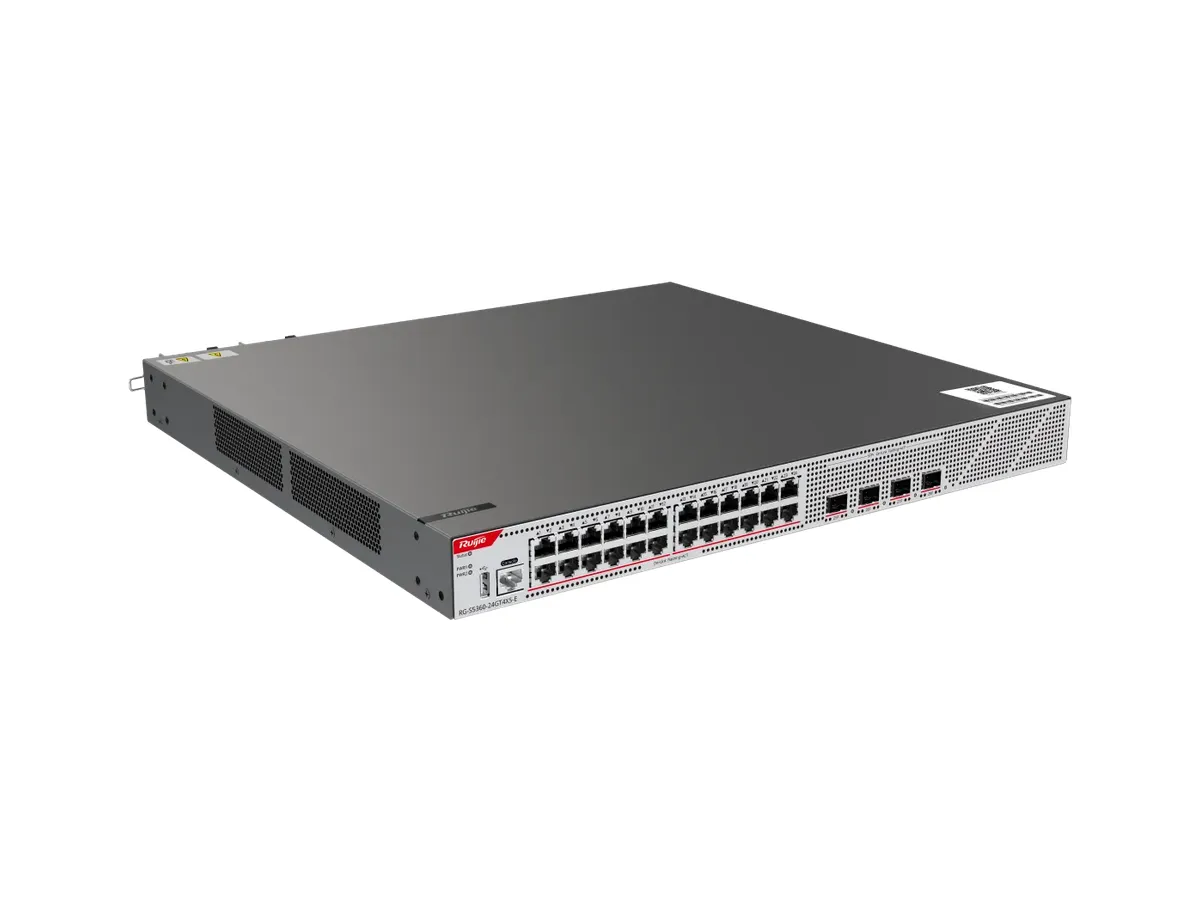

Key Architecture Highlights
- Service ports: 24 x 10/100/1000BASE-T ports 4 x 1GE/2.5GE/10GE SFP+ ports
- Modules Slot: 2 x power module slots
- Power supply Modules: PA70IB
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| Service ports | 24 x 10/100/1000BASE-T ports 4 x 1GE/2.5GE/10GE SFP+ ports |
|---|---|
| Modules Slot | 2 x power module slots |
| Power supply Modules | PA70IB |
| Management Ports | 1 x RJ45 console port |
| USB Interface | 1 x USB 2.0 port |
| Switching capacity | 128 Gbps / 336 Gbps |
| Processor | Dual-core CPU, each core with the clock speed of 1.0 GHz |
| Flash Storage | 512 MB |
| Memory | 1GB DDR4 |
| Switch buffer | 4 MB |
| Power input | 2 x pluggable power modules |
| Power supply Input | RG-PA70IB (AC input): Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Maximum input current: 2 A |
| Maximum Output Power | RG-PA70IB: 70 W |
| Maximum Power consumption | 25 W |
| Device dimensions (Width × Depth × Height) | 442mm x 420 mm x 43.6 mm (17.40 in. x 16.53 in. x 1.72 in.) |
| Rack height | 1 RU |
| Net weight | 4.4 kg (9.70 lbs) |
| Installation method | Mounting on a workbench or in a rack (cabinet) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
