Key Architecture Highlights

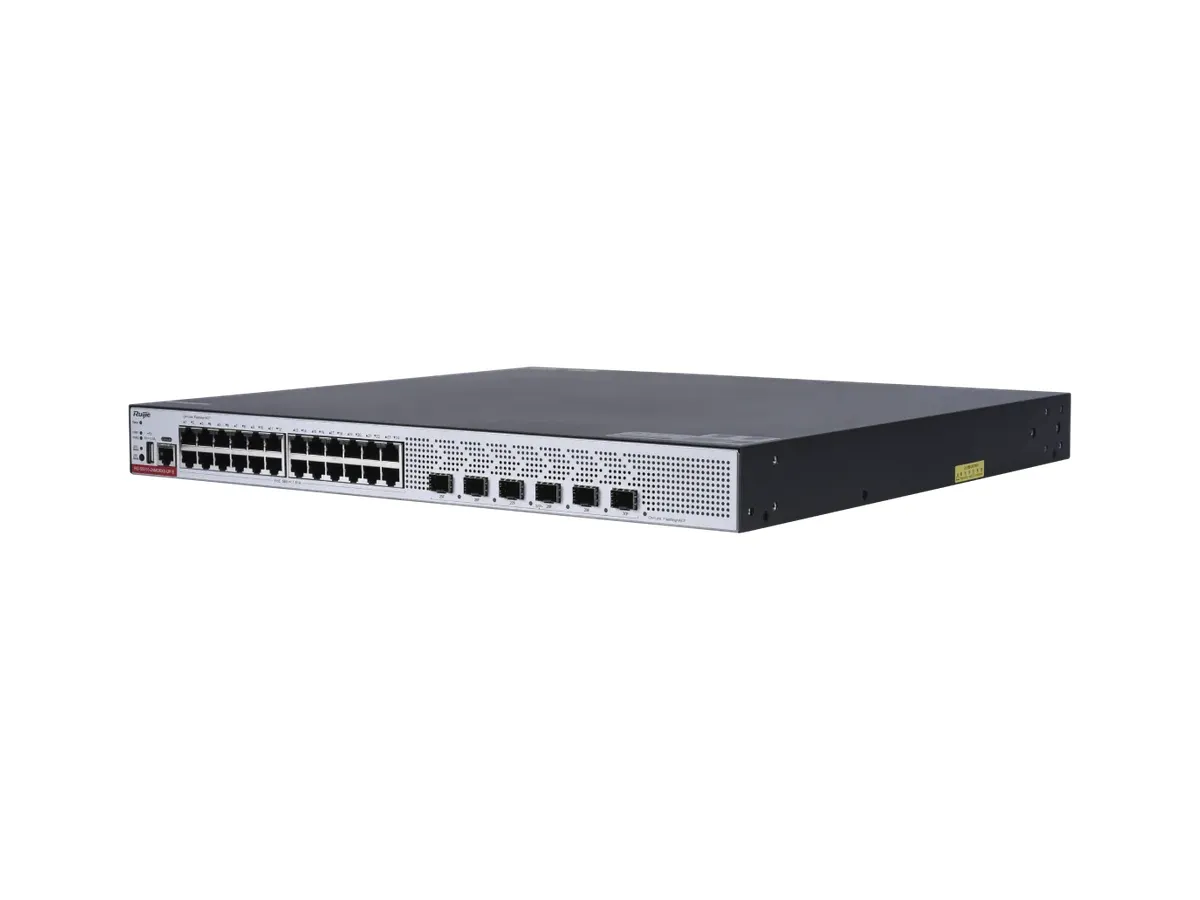

- Service ports: 24 x 100/1000/2500BASE-T ports, supporting PoE/PoE+/ PoE++ 6 x 1GE/2.5GE/10GE SFP+ ports
- Modules Slot: 2 x power module slots
- Power supply Modules: RG-PA1000I-P-F RG-PA600I-P-F
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| Service ports | 24 x 100/1000/2500BASE-T ports, supporting PoE/PoE+/ PoE++ 6 x 1GE/2.5GE/10GE SFP+ ports |
|---|---|
| Modules Slot | 2 x power module slots |
| Power supply Modules | RG-PA1000I-P-F RG-PA600I-P-F |
| Management Ports | 1 x RJ45 console port |
| USB Interface | 1 x USB port |
| System Switching capacity | 240 Gbps |
| Processor | Dual-core CPU built-in MAC processor, each core with the clock speed of 1.0 GHz |
| Flash Storage | 256 MB |
| Memory | 1 GB |
| Switch buffer | 2 MB |
| Device dimensions (Width × Depth × Height) | 442 mm × 420 mm × 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Rack height | 1 RU |
| Net weight | 4.1 kg (9.04 lbs) |
| Power input | 2 x pluggable power modules |
| Power supply Input | RG-PA600I-P-F (AC input): - Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz - Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): - Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz - Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): - Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz - Maximum input current: 8 A |
| Maximum Output Power | RG-PA600I-P-F: 600 W RG-PA1000I-P-F: -100 V AC to 130 V AC: 930 W; -200 V AC to 240 V AC: 1000 W; |
| Maximum Power consumption | ≤ 75 W (without PoE load) < 1675 W (with PoE full load) |
| Temperature requirements | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: --40°C to +70°C (--40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
