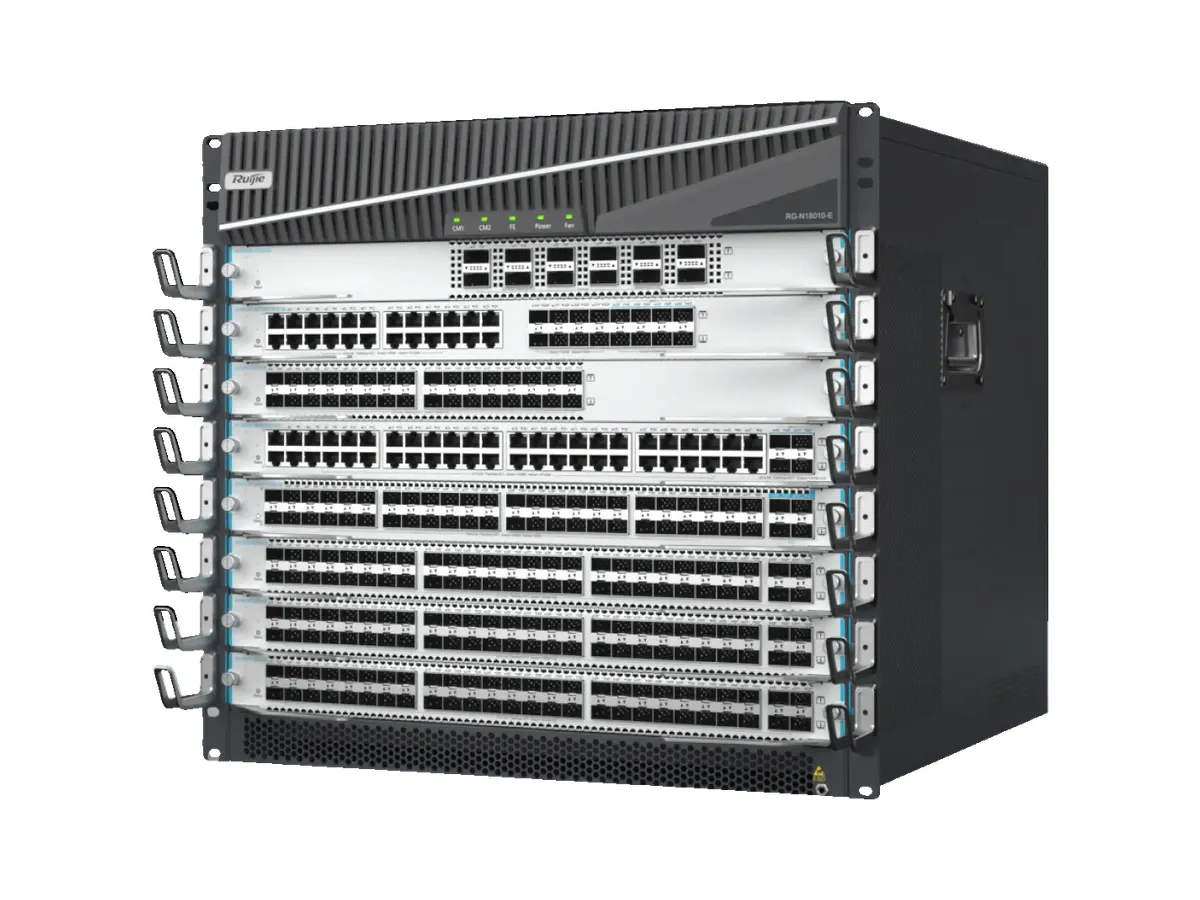

Key Architecture Highlights
- Modules Slot: 2 x supervisor module slots 8 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots
- Swap Network Module: M18010E-FE-X I M18000E-FE-X II
- Fan Modules: M10C-FAN (pre-installed 2)
Applications
- Enterprise campus networks
- Network access and aggregation
Engineering Parameters
| Modules Slot | 2 x supervisor module slots 8 x line card slots 4 x switch fabric module slots 4 x power module slots 2 x fan module slots |
|---|---|
| Master Module | M18000E-CM M18000E-CM II Note: The supervisor modules of the M18000E-CM and M18000E-CM II are incompatible with each other. Do not insert them into the same chassis. The main program versions of the two supervisor modules are independent. |
| Swap Network Module | M18010E-FE-X I M18000E-FE-X II |
| Service line cards | M18000E-48GT4XS-XA M18000E-48SFP4XS-XA M18000E-24GT8SFP8XS-XA M18000E-32XS-XB M18000E-52XS-XB M18000E-12CQ-XB M18000E-8SFG M18000E-8SFX M18000E-HCA (modular line card) ● HCA-4CQ (modular port adapter) ● HCA-20XS (modular port adapter) |
| Power supply specifications | Power supply modules: RG-PA600I RG-PA1600I power supply specifications:4 x pluggable power modules power input: RG-PA600I (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 10 A RG-PA1600I (AC input): ● Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz ● Maximum input current: 16 A |
| Fan Modules | M10C-FAN (pre-installed 2) |
| Modules Management interface | Supervisor module: ● 1 x RJ45 console port ● 1 x RJ45 MGMT port Switch fabric module: ● 1 x RJ45 console port |
| USB Interface | Supervisor module: 1 x USB 2.0 port (no capacity limit, 2G/4G/8G/16G/32G capacity tested) |
| Processor | Supervisor module: ● M18000E-CM: quad-core CPU, each core with the clock speed of 2.2 GHz ● M18000E-CM II: octa-core CPU, each core with the clock speed of 2.2 GHz Switch fabric module: ● Quad-core CPU, each core with the clock speed of 2.2 GHz Line card: ● M18000E-XA/XB/CWDM card: quad-core CPU, each core with the clock speed of 2.2 GHz ● M18000E-HCA: octa-core CPU, each core with the clock speed of 2.2 GHz |
| Flash Storage | M18000E-CM: 8 GB M18000E-CM II: 16 GB XA/XB/CWDM/FE card: 8 GB M18000E-HCA: 16 GB |
| Memory | M18000E-CM: 4 GB DDR4 M18000E-CM II: 16 GB DDR4 XA/XB/CWDM/FE card: 4 GB DDR4 M18000E-HCA: 16 GB DDR4 |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
