Key Architecture Highlights
- Weight: 49 kg (108.03 lbs., a chassis with three fan modules)
- Switching capacity: 28.8 Tbps
- Packet forwarding rate: 17,280 Mpps
Applications
- Data center network
- Connecting business data
Engineering Parameters
| Chassis form factor and dimensions | dimensions (width x depth x height):442 mm x 893 mm x 308.4 mm (17.40 in. x 35.16 in. x 12.14 in.), without the cable management bracket; 442 mm x 956 mm x 308.4 mm (17.40 in. x 37.64 in. x 12.14 in.), with the cable management bracket. rack height: 7 RU |
|---|---|
| Weight | 49 kg (108.03 lbs., a chassis with three fan modules) |
| Switching capacity | 28.8 Tbps |
| Packet forwarding rate | 17,280 Mpps |
| Modules Slot | 2 x supervisor module slots 4 x line card slots 6 x switch fabric module slots 4 x power module slots 3 x fan module slots |
| Power supply specifications | RG-PA3000I-F (AC input) Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 290 V AC, 47 Hz to 63 Hz Rated input current: 16 A Power port type: C20 RG-PA3000I-F (HVDC input): Rated input voltage: 240V DC Maximum input voltage: 192V~350V DC Rated input current: 16 A Power port type: C20 Note: When the switch is equipped with the high-voltage DC power supply, a PDU that supports high-voltage DC power supply must be used. To ensure safety, connect the external power supply to the power cord first and then to the PDU. The switch can only connect to a specific power system (UPS) but not to the DC power grid. The DC voltage tolerance range is from 188 V DC to 400 V DC. |
| Temperature range | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40ºC to +70ºC (–40ºF to +158ºF) Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Humidity range | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude range | Operating altitude: ≤ 3,000 m (9,842.52 ft.) Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Cooling method | Air cooling, front-to-rear airflow (port-side air intake) |

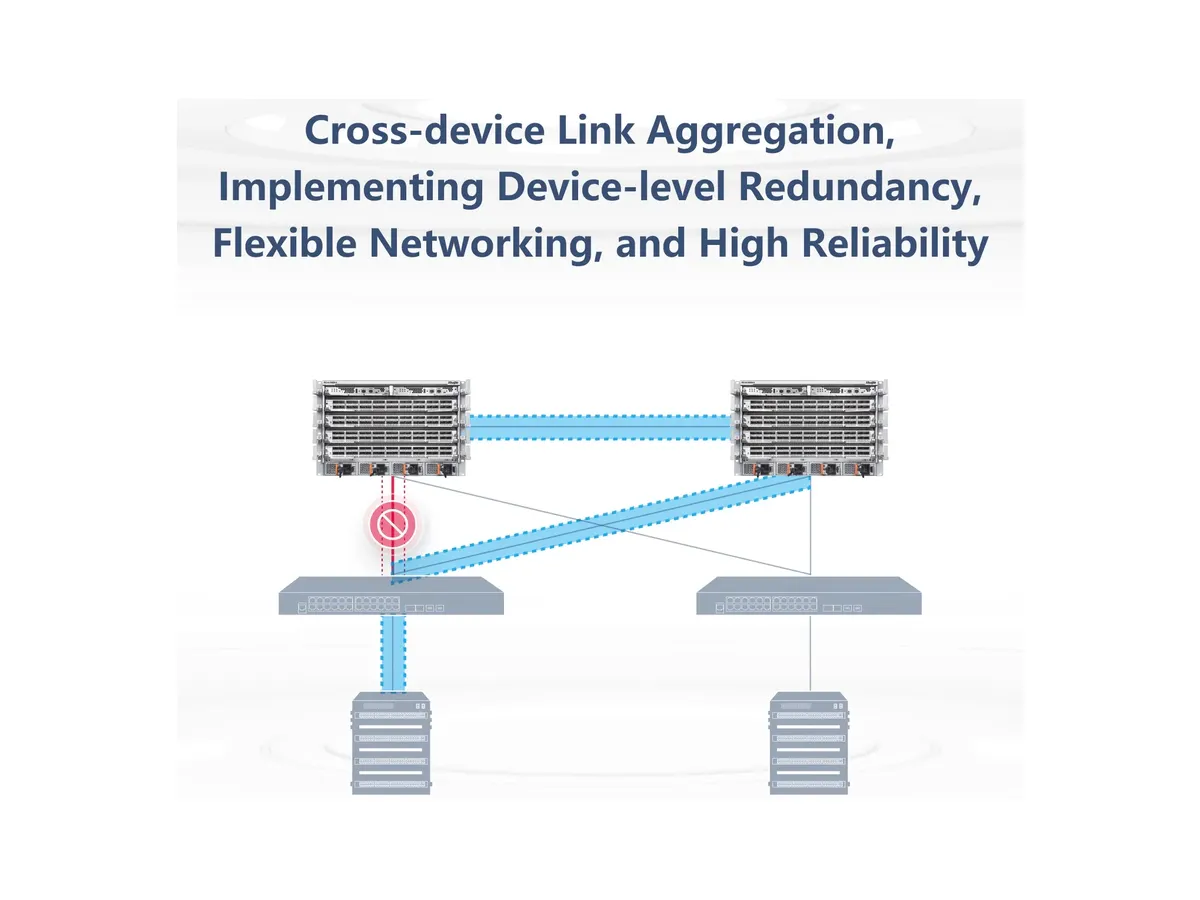

| Data center Agreements | VXLAN bridge VXLAN gateway BGP-EVPN VXLAN VXLAN mapping IPv6 VXLAN over IPv4 M-LAG |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
