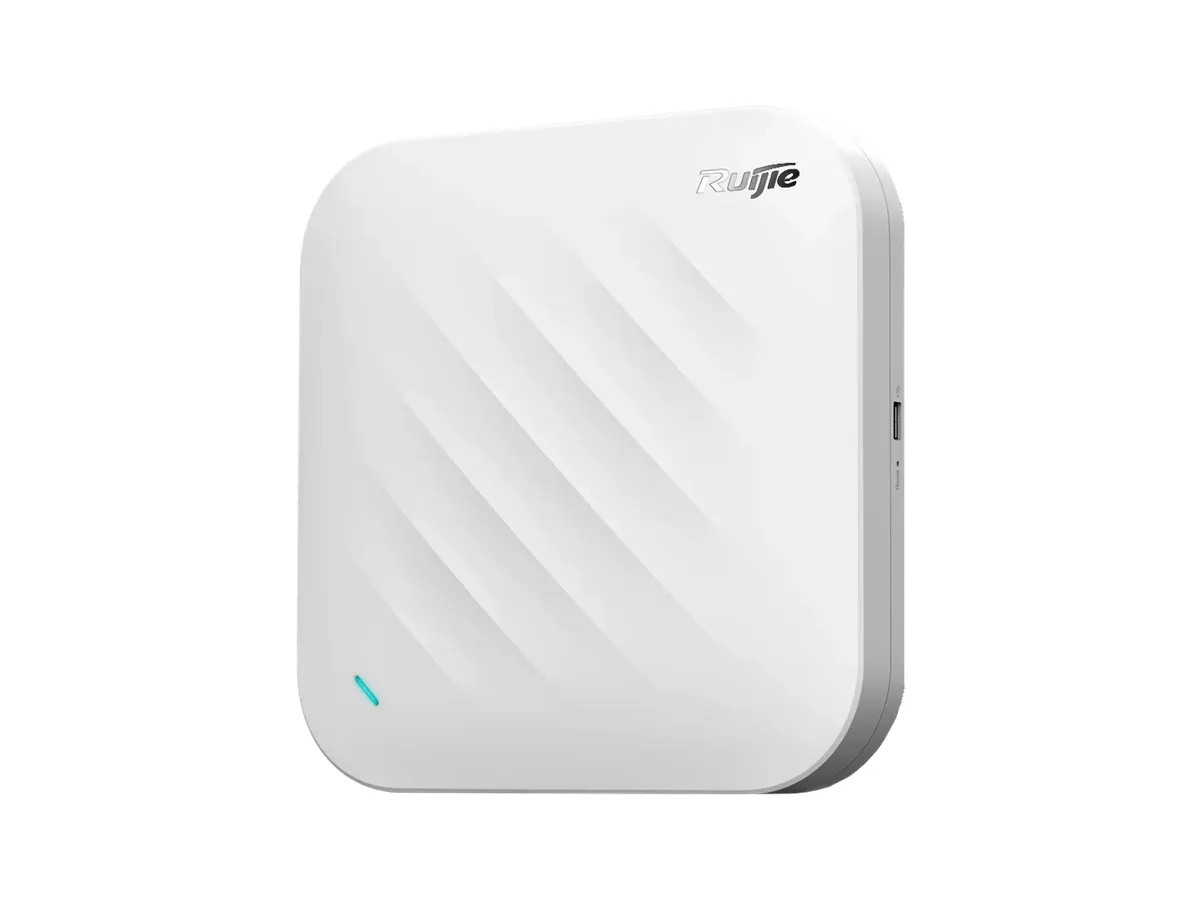

Key Architecture Highlights
- Chassis dimensions: Main unit: 245 mm x 245 mm x 67 mm (9.65 in. x 9.65 in. x 2.64 in.) Shipping: 485 mm x 346 mm x 340 mm (19.09 in. x 13.62 in. x 13.39 in.)
- Weight: Main unit: 2.0 kg (4.41 lbs) Mounting bracket: 0.2 kg (0.44 lbs) Shipping weight: 2.76 kg (6.08 lbs)
- Installation method: Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
Applications
- Business wireless coverage
- Campus and office networks
Engineering Parameters
| Wireless Capability | Wi-Fi 6 Wireless Capability: 16 spatial streams ● Radio 1 –2.4 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 2 –5 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 3 –5 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 4 –6 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams Channel: ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 3 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 4 –6 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MHz Combined peak data rate: 15.559Gbps Wi-Fi 7 Wireless Capability: 16 spatial streams ● Radio 1 –2.4 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 2 –5 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 3 –5 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams ● Radio 4 –6 GHz: 4x4 uplink / downlink MU-MIMO, four spatial streams Channel: ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 3 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 4 –6 GHz: 20 MHz, 40 MHz, 80 MHz, 160 MHz, and 320 MHz Combined peak data rate: 24.436 Gbps |
|---|---|
| Antenna | Wi-Fi ● 2.4 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi ● 5 GHz: eight built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi ● 6 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi Bluetooth ● One built-in omnidirectional antenna, with peak antenna gain of 3 dBi |
| Interface | 1 x 100/1000/2.5G/5G/10GBASE-T port (10G/PoE IN port on the AP) 1 x 1000/2.5G/5G/10GBASE-T port (10G/WAN2 port on the AP), shared with one 10GE SFP+ port 1 x 10GE SFP+ port, compatibility with 1GE/2.5GE/10GE modules, shared with one 10GE RJ45 port (10G/WAN2 port on the AP) 1 x 10/100/1000BASE-T port 1 x RJ45 console port (serial console port) 1 x USB 3.0 (Type-A connector) 1 x Bluetooth 5.3 |
| Chassis dimensions | Main unit: 245 mm x 245 mm x 67 mm (9.65 in. x 9.65 in. x 2.64 in.) Shipping: 485 mm x 346 mm x 340 mm (19.09 in. x 13.62 in. x 13.39 in.) |
| Weight | Main unit: 2.0 kg (4.41 lbs) Mounting bracket: 0.2 kg (0.44 lbs) Shipping weight: 2.76 kg (6.08 lbs) |
| Installation method | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Power input Specifications | The AC supports the following two power supply modes: ● 54 V DC/1.25 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.5 mm (0.10 in.) or outer diameter of 5.5 mm (0.22 in.) and the length of 9.5 mm (0.37 in.). A DC power supply needs to be purchased independently. ● PoE input over WAN 1: The power sourcing equipment (PSE) complies with IEEE 802.3at/bt standard (PoE+/PoE++) Note: if both DC power and PoE are available, DC power is preferred. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
