Key Architecture Highlights
- Dimensions (Width × Depth × Height): Main unit: 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.)
- Weight: Main unit: 1.0 kg (2.2 lbs) Mounting bracket: 0.1 kg (0.22 lbs) Shipping: 1.25 kg (2.76 lbs)
- Installation method: Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| 802.11n Wireless Capability | Six spatial streams; ● Radio 1 –2.4 GHz: 2x2 MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; ● Radio 3 – AI Radio, 2.4 GH/5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz and 40 MHz; ● Radio 3 – AI Radio, 2.4 GH/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; ● Radio 1 –2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); ● Radio 2 –5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); ● Radio 3 – AI Radio, 2.4 GHz/5 GHz: AI Radio for scanning only |
|---|---|
| 802.11ac Wireless Capability | Four spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; ● Radio 3 – AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; ● Radio 3 – AI Radio, 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 1.733 Gbps; ● Radio 2 –5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); ● Radio 3 – AI Radio, 5 GHz: AI Radio for scanning only |
| 802.11ax Wireless Capability | Four spatial streams; ● Radio 1 –2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps:; ● Radio 1 –2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); ● Radio 2 –5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11) |
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi. ● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4.6 dBi. |

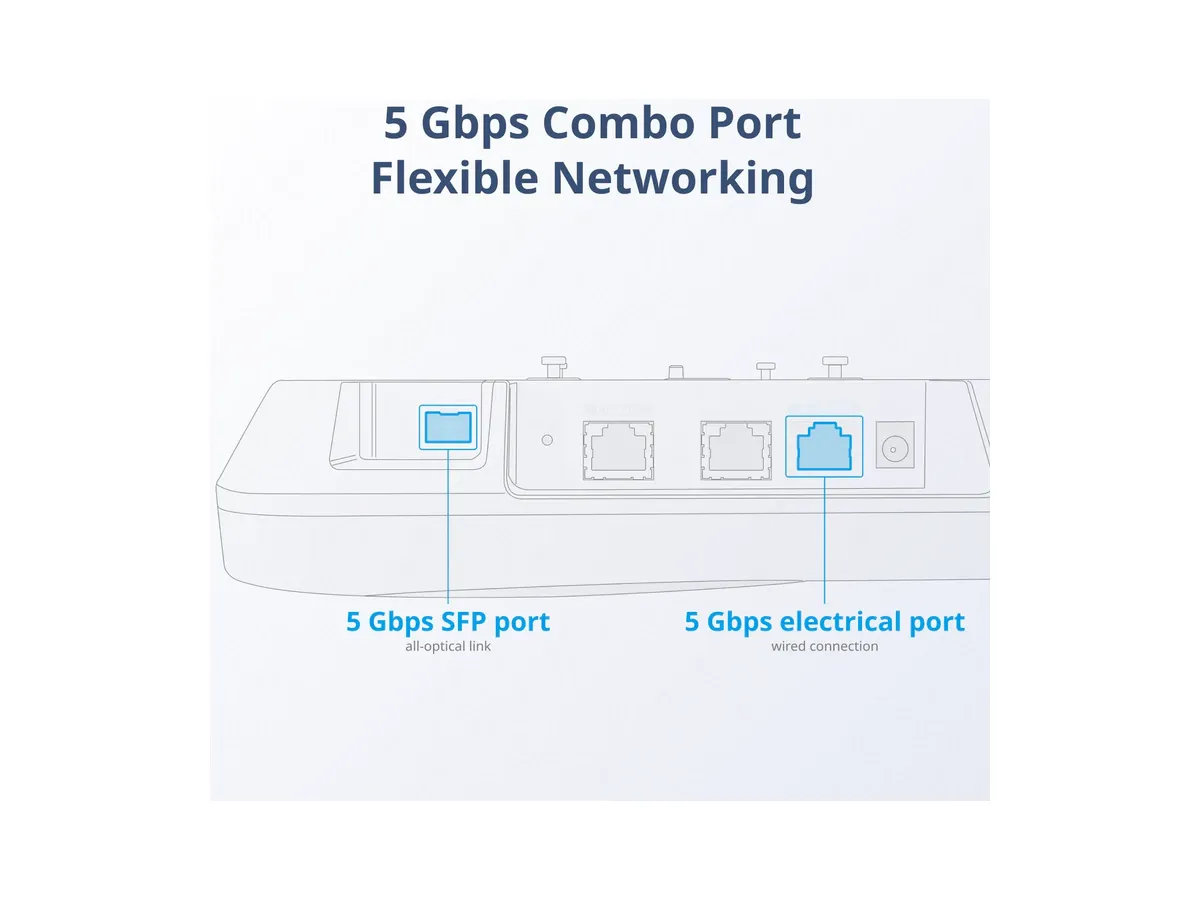

| Interface | 1 x 100/1000/2.5G/5GBASE-T port, compliant with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++) 1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules, shared with one 100/1000/2.5G/5GBASE-T port 1 x 10/100/1000BASE-T port 1 x RJ45 console port (serial console port) 1 x USB 3.0 (Type-A connector) 1 x Bluetooth 5.1 |
| Dimensions (Width × Depth × Height) | Main unit: 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.) |
| Weight | Main unit: 1.0 kg (2.2 lbs) Mounting bracket: 0.1 kg (0.22 lbs) Shipping: 1.25 kg (2.76 lbs) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
