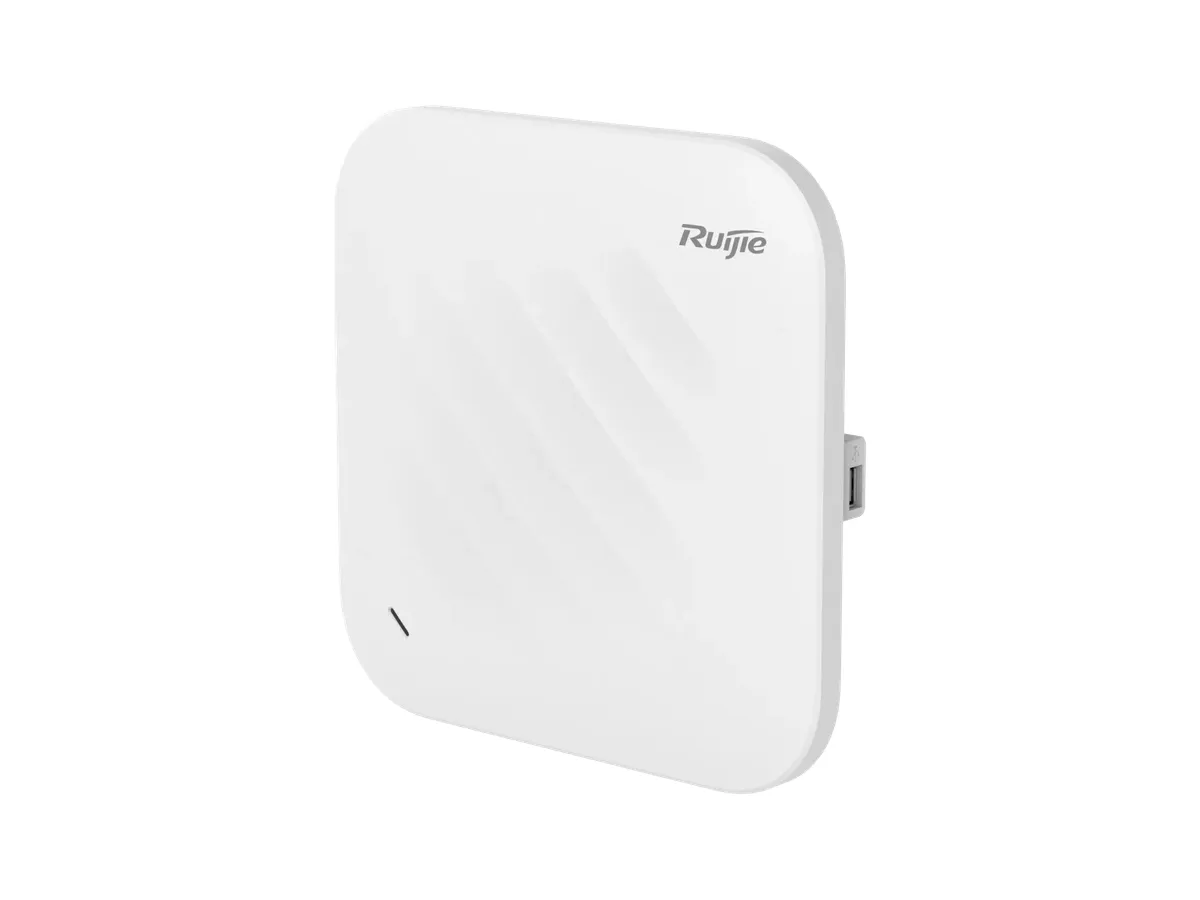

Key Architecture Highlights
- Chassis dimensions: Main unit: 220 mm x 220 mm x 42.7 mm (8.66 in. x 8.66 in. x 1.68 in.) Shipping: 495mm x 379mm x 261mm (19.49 in. x 14.92 in. x 10.28 in.)
- Weight: Main unit: 1.2 kg (2.65 lbs.) Mounting bracket: 0.05 kg (0.11 lbs.) Shipping: 13.98 kg (30.82 lbs.)
- Installation method: Ceiling/Wall-mount (a mounting bracket is delivered with the main unit)
Applications
- Business wireless coverage
- Campus and office networks
Engineering Parameters
| Wireless Capability | Wi-Fi 6 Wireless Capability: Eight spatial streams ● Radio 1 --2.4 GHz: 2x2 MIMO, two spatial streams ● Radio 2 --5 GHz: 2x2 uplink / downlink MIMO, two spatial streams ● Radio 3 --6 GHz: 2x2 uplink / downlink MIMO, two spatial streams ● Radio 4 -- AI Radio, 2.4 GHz / 5 GHz: 2x2 uplink / downlink MIMO, two spatial streams Channels: ● Radio 1 --2.4 GHz: 20 MHz and 40 MHz ● Radio 2 --5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 3 --6 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 4 -- AI Radio, 2.4 GHz / 5 GHz: 20 MHz and 40 MHz Combined peak data rate: 5.378Gbps Wi-Fi 7 Wireless Capability: Si x spatial streams ● Radio 1 --2.4 GHz: 2x2 MIMO, two spatial streams ● Radio 2 --5 GHz: 2x2 uplink / downlink MIMO, two spatial streams ● Radio 3 --6 GHz: 2x2 uplink / downlink MIMO, two spatial streams Channels: ● Radio 1 --2.4 GHz: 20 MHz and 40 MHz ● Radio 2 --5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz ● Radio 3 --6 GHz: 20 MHz, 40 MHz, 80 MHz, 160MHz, and 320 MHz Combined peak data rate: 9.335 Gbps: |
|---|---|
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi. ● 5 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi. ● 6 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 3 dBi. |
| Interface | 1 x 100/1000/2.5G/5GBASE-T port, shared with one 10GE SFP+ port 1 x 10GE SFP+ port, compatibility with 1GE/2.5GE/10GE modules, shared with one 5GE RJ45 port 1 x 10/100/1000BASE-T port, supplying IEEE 802.3af power to an IoT unit 1 x RJ45 console port 1 x USB 2.0 (Type-A connector) 1 x Bluetooth 5.3 |
| Chassis dimensions | Main unit: 220 mm x 220 mm x 42.7 mm (8.66 in. x 8.66 in. x 1.68 in.) Shipping: 495mm x 379mm x 261mm (19.49 in. x 14.92 in. x 10.28 in.) |
| Weight | Main unit: 1.2 kg (2.65 lbs.) Mounting bracket: 0.05 kg (0.11 lbs.) Shipping: 13.98 kg (30.82 lbs.) |
| Installation method | Ceiling/Wall-mount (a mounting bracket is delivered with the main unit) |
| Power input Specifications | The AP supports the following power supply modes: ● 54 V DC/1.25 A power input over DC connector ● PoE/PoE+/PoE++ input, in compliance with IEEE 802.3af/at/bt standard Note: if both DC power and PoE are available, DC power is preferred. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
