Key Architecture Highlights

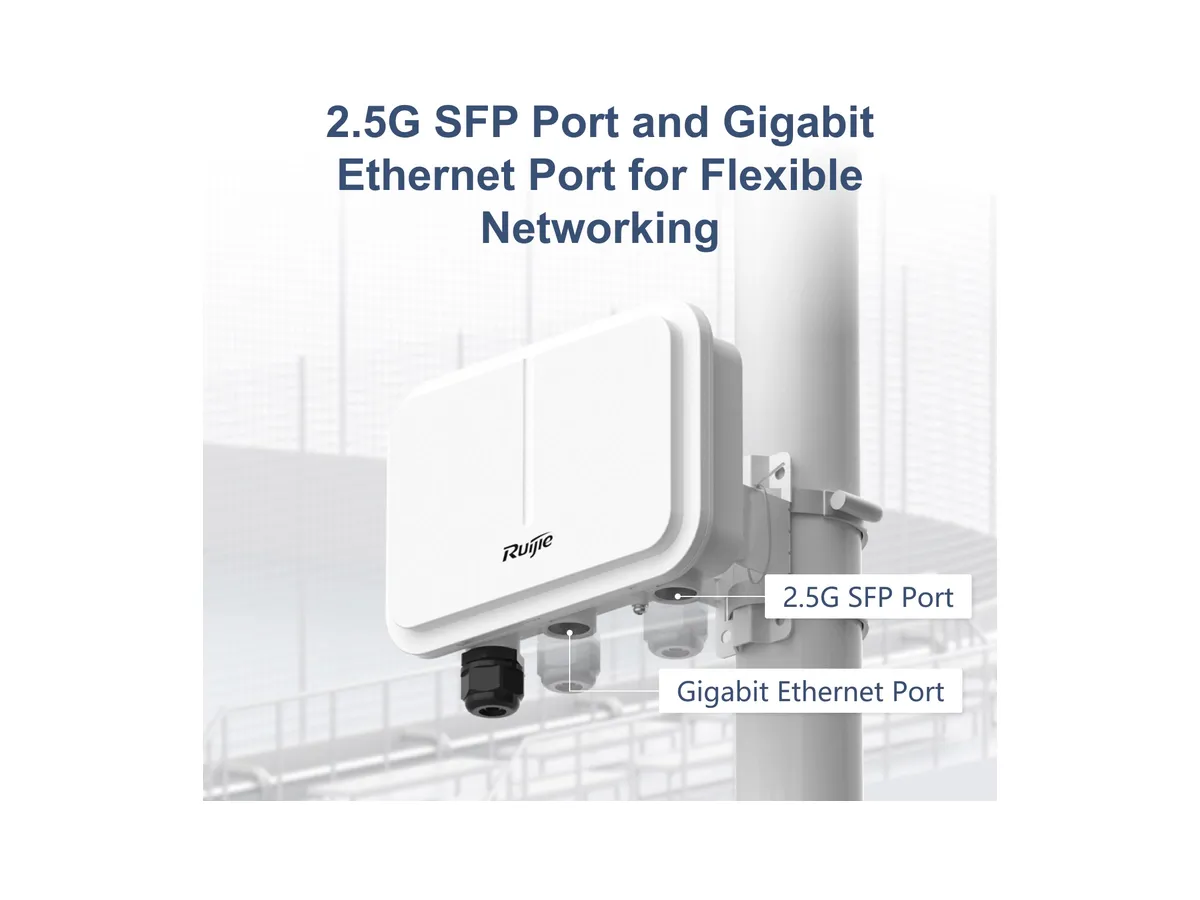

- Interface: 1 x 100/1000Base-T port 1 x 2.5GE SFP port, compatibility with 1GE modules, supporting auto-negotiation 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.0
- Dimensions (Width × Depth × Height): Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.)
- Weight: Main unit: 1.0 kg (2.2 lbs) Mounting bracket: 0.9 kg (1.98 lbs) Shipping: 3.15 kg (6.94 lbs)
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| 802.11n Wireless Capability | Four spatial streams; ● Radio 1 –2.4 GHz: 2x2 MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600Mbps; ● Radio 1 –2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); ● Radio 2 –5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) |
|---|---|
| 802.11ac Wireless Capability | Two spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; ● Radio 2 –5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9) |
| 802.11ax Wireless Capability | Four spatial streams; ● Radio 1 –2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps; ● Radio 1 –2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); ● Radio 2 –5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11) |
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 4 dBi. ● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 5 dBi. |
| Interface | 1 x 100/1000Base-T port 1 x 2.5GE SFP port, compatibility with 1GE modules, supporting auto-negotiation 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.0 |
| Dimensions (Width × Depth × Height) | Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.) |
| Weight | Main unit: 1.0 kg (2.2 lbs) Mounting bracket: 0.9 kg (1.98 lbs) Shipping: 3.15 kg (6.94 lbs) |
| Installation method | Ceiling/Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
| Power input Specifications | The AP supports the following two power supply modes: ● 48 V DC/0.35 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.0 mm (0.08 in.) or outer diameter of 6.3 mm (0.25 in.) and the length of 9.8 mm (0.39 in.). A DC power supply needs to be purchased independently. ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: If both DC power and PoE are available, DC power is preferred. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
