Key Architecture Highlights
- Interface: 1 x 100/1000/2.5G/5GBASE-T port 1 x 100/1000BASE-T port 2 x 10GE SFP+ ports, compatibility with 1GE and 2.5GE modules 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.1
- Dimensions (Width × Depth × Height): Main unit: 300 mm x 300 mm x 94 mm (11.81 in. x 11.81 in. x 3.70 in.) Shipping: 470 mm x 410 mm x 170 mm (18.50 in. x 16.14 in. x 6.69 in.)
- Weight: Main unit: 4.3 kg (9.48 lbs) Mounting bracket: 1.2 kg (2.65 lbs) Shipping: 7.18 kg (15.83 lbs)
Applications
- Corporate network
- Campus and office networks
Engineering Parameters
| 802.11n Wireless Capability | 14 spatial streams; ● Radio 1 –2.4 GHz: 4x4 MIMO, four spatial streams; ● Radio 2 –5 GHz: 4x4 MIMO, four spatial streams; ● Radio 3 –5 GHz: 4x4 MIMO, four spatial streams; ● Radio 4 – AI Radio, 2.4 GHz/5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz and 40 MHz; ● Radio 3 –5 GHz: 20 MHz and 40 MHz; ● Radio 4 – AI Radio, 2.4 GHz/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 1.800 Gbps; ● Radio 1 –2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31); ● Radio 2 –5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31); ● Radio 3 –5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31); ● Radio 4 – AI Radio, 2.4 GHz/5 GHz: AI Radio for scanning only |
|---|---|
| 802.11ac Wireless Capability | 10 spatial streams; ● Radio 2 –5 GHz: 4x4 MIMO, four spatial streams; ● Radio 3 –5 GHz: 4x4 MIMO, four spatial streams; ● Radio 4 – AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; ● Radio 3 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; ● Radio 4 – AI Radio, 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 6.934 Gbps; ● Radio 2 –5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); ● Radio 3 –5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); ● Radio 4 – AI Radio, 5 GHz: AI Radio for scanning only |
| 802.11ax Wireless Capability | 12 spatial streams; ● Radio 1 –2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; ● Radio 2 –5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; ● Radio 3 –5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; ● Radio 3 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 10.755 Gbps; ● Radio 1 –2.4 GHz: 8.6 Mbps to 1.147 Gbps (MCS0 to MCS11); ● Radio 2 –5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11); ● Radio 3 –5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11) |
| Antenna | Wi-Fi ● 2.4 GHz: four built-in omnidirectional antennas, with peak antenna gain of 6 dBi. ● 5 GHz: eight built-in omnidirectional antennas, with peak antenna gain of 8 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4 dBi. |

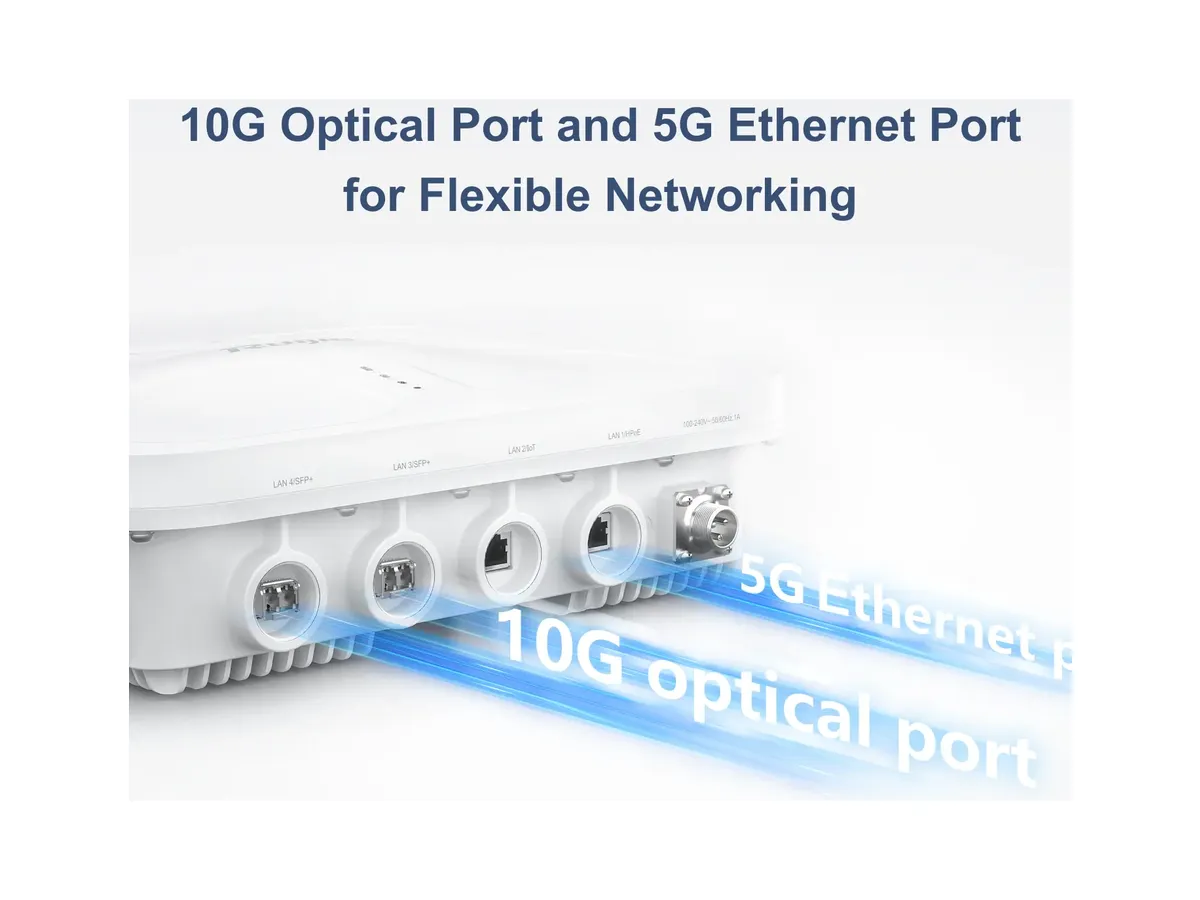

| Interface | 1 x 100/1000/2.5G/5GBASE-T port 1 x 100/1000BASE-T port 2 x 10GE SFP+ ports, compatibility with 1GE and 2.5GE modules 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.1 |
