Key Architecture Highlights
- Dimensions (Width × Height × Depth): Main unit: 86 mm x 170 mm x 43 mm (3.39 in. x 6.69 in. x 1.69 in.) Shipping: 187 mm x 104 mm x 69 mm (7.37 in. x 4.10 in. x 2.72 in.)
- Weight: Main unit: 0.3 kg (0.66 lbs) Mounting bracket: 0.1 kg (0.22 lbs) Shipping: 0.54 kg (1.19 lbs)
- Installation method: Junction box-mount (86 mm/American-standard/European-standard junction box) Wall-mount (delivered with a mounting bracket)
Applications

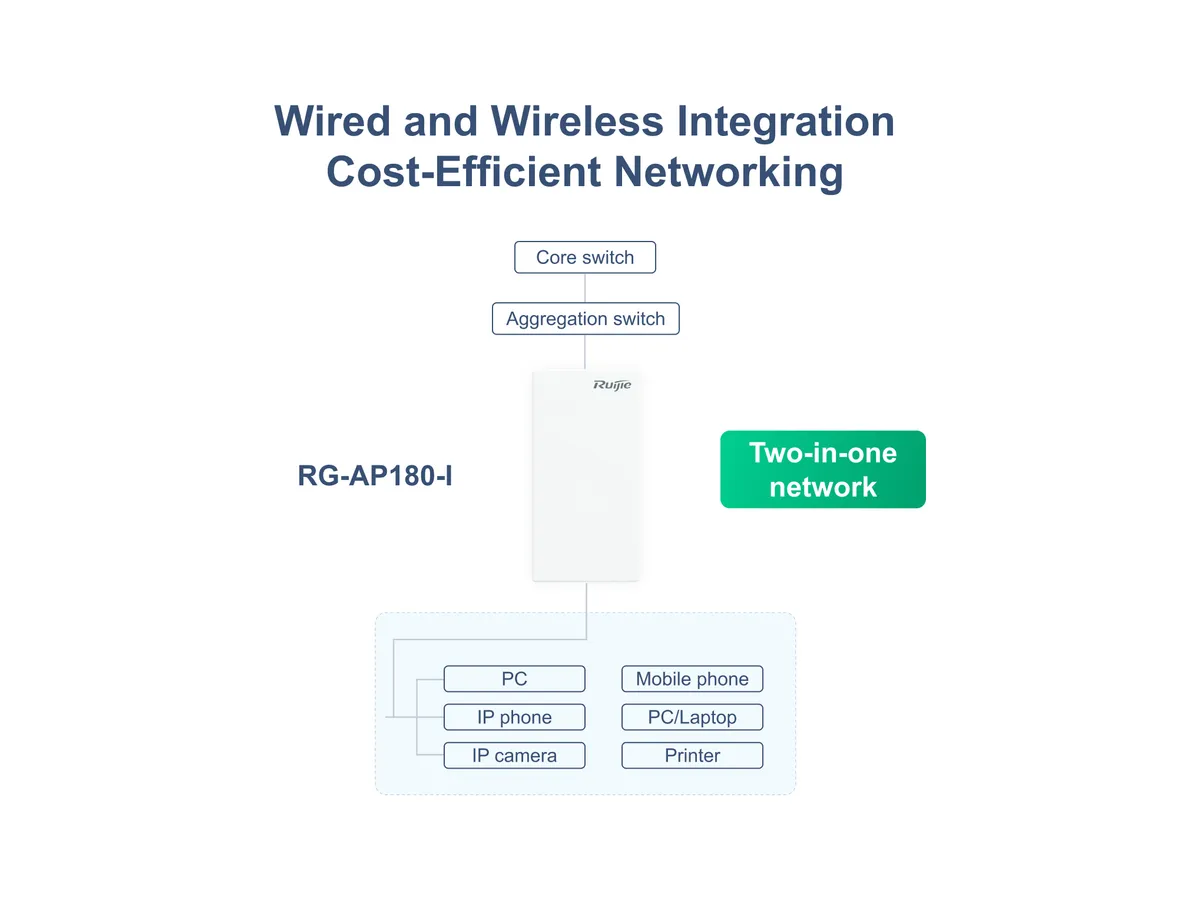

- Corporate network
- Campus and office networks
Engineering Parameters
| 802.11n Wireless Capability | Four spatial streams; ● Radio 1 –2.4 GHz: 2x2 MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; ● Radio 1 –2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); ● Radio 2 –5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) |
|---|---|
| 802.11ac Wireless Capability | Two spatial streams; ● Radio 2 –5 GHz: 2x2 MIMO, two spatial streams; Channels:; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; ● Radio 2 –5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9) |
| 802.11ax Wireless Capability | Four spatial streams; ● Radio 1 –2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; ● Radio 2 –5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; ● Radio 1 –2.4 GHz: 20 MHz and 40 MHz; ● Radio 2 –5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps:; ● Radio 1 –2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); ● Radio 2 –5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11) |
| Antenna | Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi. ● 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi. Bluetooth ● One onboard omnidirectional antenna, with peak antenna gain of 2.4 dBi |
| Interface | Uplink: 1 x 100/1000/2.5GBase-T port, compliant with IEEE 802.3af/at standard (PoE/PoE+). Downlink: 4 x 10/100/1000Base-T ports, LAN 1 supports 48 V/10 W power supply to an attached device. 1 x micro USB console port 1 x Bluetooth 5.1 |
| Dimensions (Width × Height × Depth) | Main unit: 86 mm x 170 mm x 43 mm (3.39 in. x 6.69 in. x 1.69 in.) Shipping: 187 mm x 104 mm x 69 mm (7.37 in. x 4.10 in. x 2.72 in.) |
| Weight | Main unit: 0.3 kg (0.66 lbs) Mounting bracket: 0.1 kg (0.22 lbs) Shipping: 0.54 kg (1.19 lbs) |
| Installation method | Junction box-mount (86 mm/American-standard/European-standard junction box) Wall-mount (delivered with a mounting bracket) |
| Power input Specifications | The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently. ● PoE input over the backplane interface: compliance with 802.3af/at standard (PoE/PoE+) Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance. ● If both DC power and PoE are available, DC power is preferred. |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
