Key Architecture Highlights

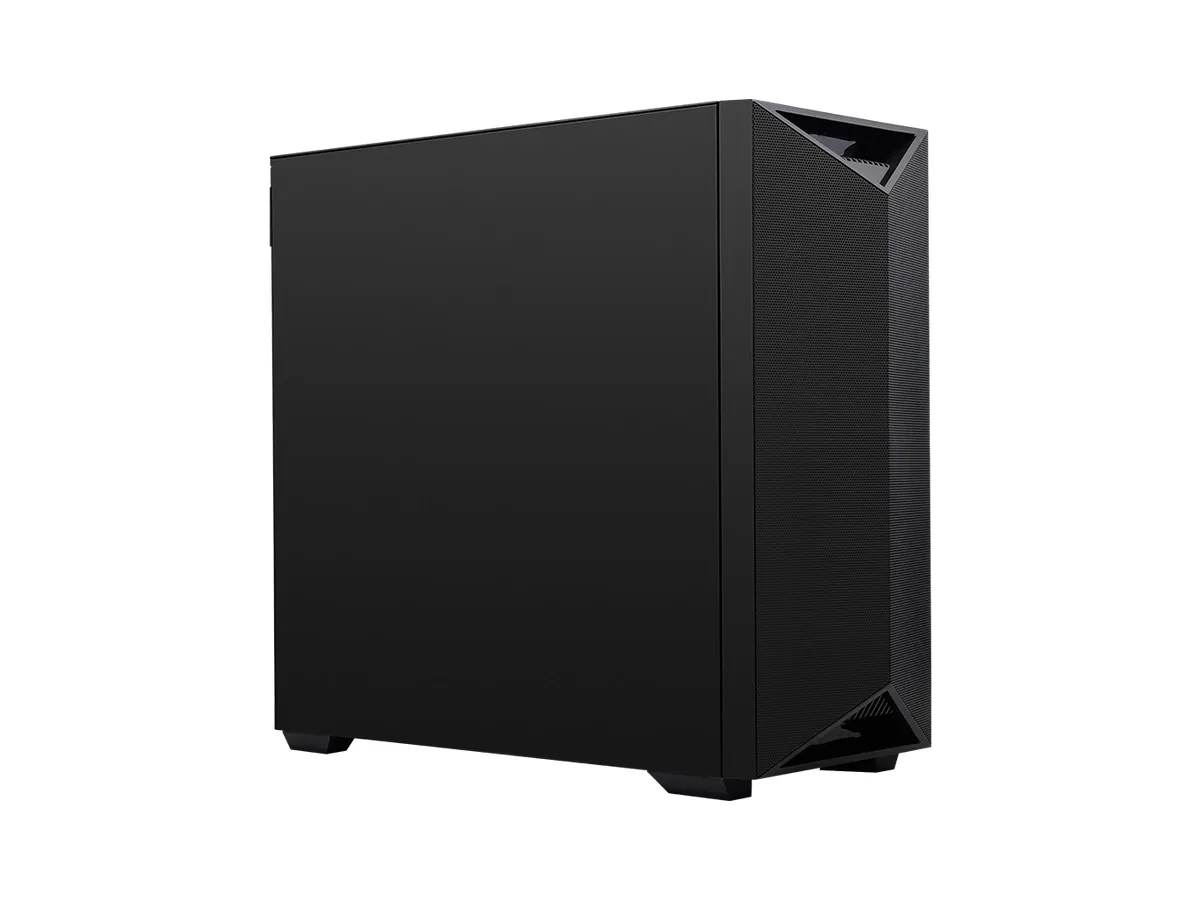

- Chassis form factor: Tower
- Chassis dimensions: 245.7mm (9.67”) Wx 529.0mm (20.83”) Hx 570.4mm (22.46”) D
- Processors and sockets: Single NVIDIA Grace™ CPU Superchip with 72 Arm® Neoverse V2 cores
Applications
- Corporate data center computing
- Virtualization and cloud computing
Engineering Parameters
| Chassis form factor | Tower |
|---|---|
| Chassis dimensions | 245.7mm (9.67”) Wx 529.0mm (20.83”) Hx 570.4mm (22.46”) D |
| Processors and sockets | Single NVIDIA Grace™ CPU Superchip with 72 Arm® Neoverse V2 cores |
| GPU Supports | Single NVIDIA Blackwell Ultra GPU |
| Memory support | 748 GB of Coherent Memory; - CPU Memory 496GB LPDDR5X | 396 GB/s; - GPU Memory 252GB HBM3e | 7.1 TB/s |
| Internal Storage | Four total M.2 ports. Two are pre-configured with boot drives out of the box, two are open and available for expansion.; (2) 2280 PCIe 5.0 x4 NVMe M.2 ports (Filled with boot drives, connected to the CPU); (2) 2280 PCIe 6.0 x4 NVMe M.2 ports (Open and available for expansion, connected to the CX8); M.2 heatsinks included for all four M.2 ports; (2) 2TB NVMe M.2 SSDs included, installed in the CPU ports & configured in RAID 1 for OS; Ubuntu 24.04 LTS with Nvidia AI Developer Tools pre-installed on the boot drives |
| Expansion slots | (1) PCIe 5.0 x16 FHFL double wide slot; (2) PCIe 5.0 x16 FHFL single wide slots with x8 signals; (1) PCIe 2.0 x1 2230 M.2 for WiFi/BT |
| Networking and interfaces | Network interfaces: (2) QSFP112 400G Ethernet ports (NVIDIA ConnectX -8); (1) 10GBase-T Ethernet port with Marvell AQC113 Front interfaces: The I / Os are located on the top of the chassis; (1) Power Button; (1) Reset Button; (1) HDD LED; (1) 2-way Audio; (2) USB Type C ports; (2) USB 3.2 Gen 2 Type-A ports Rear interfaces: (1) 1000Base-T Dedicated Server Management Ports; (2) QSFP112 400G Ethernet ports; (1) 10GBase-T Ethernet port; (4) USB3.1 Type A ports; (1) Mini DP port; (1) 2 ch audio port; (1) Micro USB COM port |
| Security features | Chassis Intrusion; On-board TPM2.0; Hardware Root of Trust - Microchip CEC1736 supported |
| Server management | (1) 1000Base-T Dedicated Server Management Port; ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API; eMMC for local BMC storage media |
| Environmental requirements | Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F); Operating humidity: 10% to 80% (non-condensing); Non-operating Temperature: 5°C ~ 40°C (41°F to 104°F); Non-operating Relative Humidity: 10% to 80% (non-condensing) |
Warranty
Public manufacturer information does not specify the warranty term applicable to our supply channel. The supply region, channel and actual warranty service are confirmed in the supply contract.
